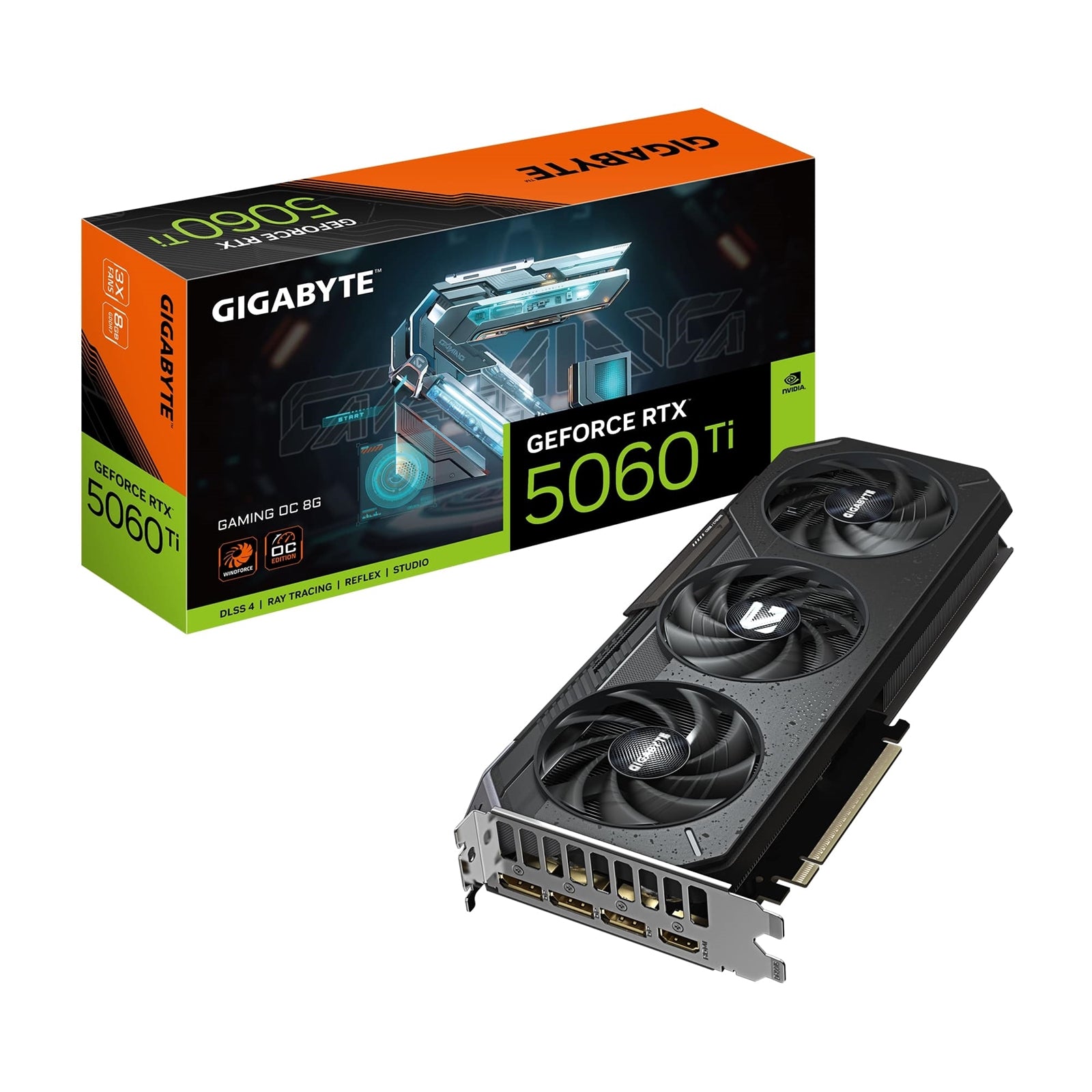

Gigabyte GeForce RTX 5060 Ti Gaming OC 8GB Graphics Card

The Gigabyte GeForce RTX 5060 Ti Gaming OC delivers exceptional gaming performance powered by NVIDIA's Blackwell architecture and DLSS 4 technology. This factory-overclocked graphics card features an impressive 2647 MHz core clock, exceeding the reference card's 2572 MHz specification for enhanced frame rates in demanding titles.

Advanced GDDR7 Memory Technology

Equipped with 8GB of next-generation GDDR7 memory running at 28 Gbps across a 128-bit interface, this graphics card provides the bandwidth needed for high-resolution gaming and content creation. The 4608 CUDA cores work in tandem with the memory subsystem to deliver smooth performance across modern gaming workloads and ray-traced environments.

WINDFORCE Cooling System

The triple-fan WINDFORCE cooling solution features Hawk fan technology designed to maximize airflow while maintaining quiet operation. Server-grade thermal conductive gel ensures optimal heat transfer from the GPU die to the heatsink, keeping temperatures in check during extended gaming sessions. The reinforced structure adds durability and prevents PCB flex.

Dual BIOS Flexibility

Switch between Performance and Silent BIOS modes to match your preferences. Performance mode extracts maximum capability from the overclocked configuration, while Silent mode prioritizes acoustics for noise-sensitive environments without sacrificing stability.

Connectivity and Display Support

Three DisplayPort 2.1b outputs and one HDMI 2.1b port provide flexible multi-monitor configurations supporting up to four displays simultaneously. Maximum digital resolution reaches 7680x4320, ready for 8K displays and future-proof connectivity.

Technical Specifications

Built on the PCI-E 5.0 interface, this card measures 281mm x 119mm x 40mm and requires a single 8-pin power connector with a recommended 650W PSU. DirectX 12 API and OpenGL 4.6 support ensure compatibility with current and upcoming gaming titles.

GeForce RTX 5060 Ti GAMING OC 8G

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB lighting
Dual BIOS (Performance / Silent)
Reinforced structure

CORE CLOCK

2647 MHz (Reference card :2572 MHz)

Graphics Processing

GeForce RTX 5060 Ti

Core Clock
2647 MHz (Reference card :2572 MHz)

CUDA Cores
4608

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=281 W=119 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060Ti
• Form Factor: 3x ATX
• Memory: 8GB
• Fans: 3
• RGB: No
