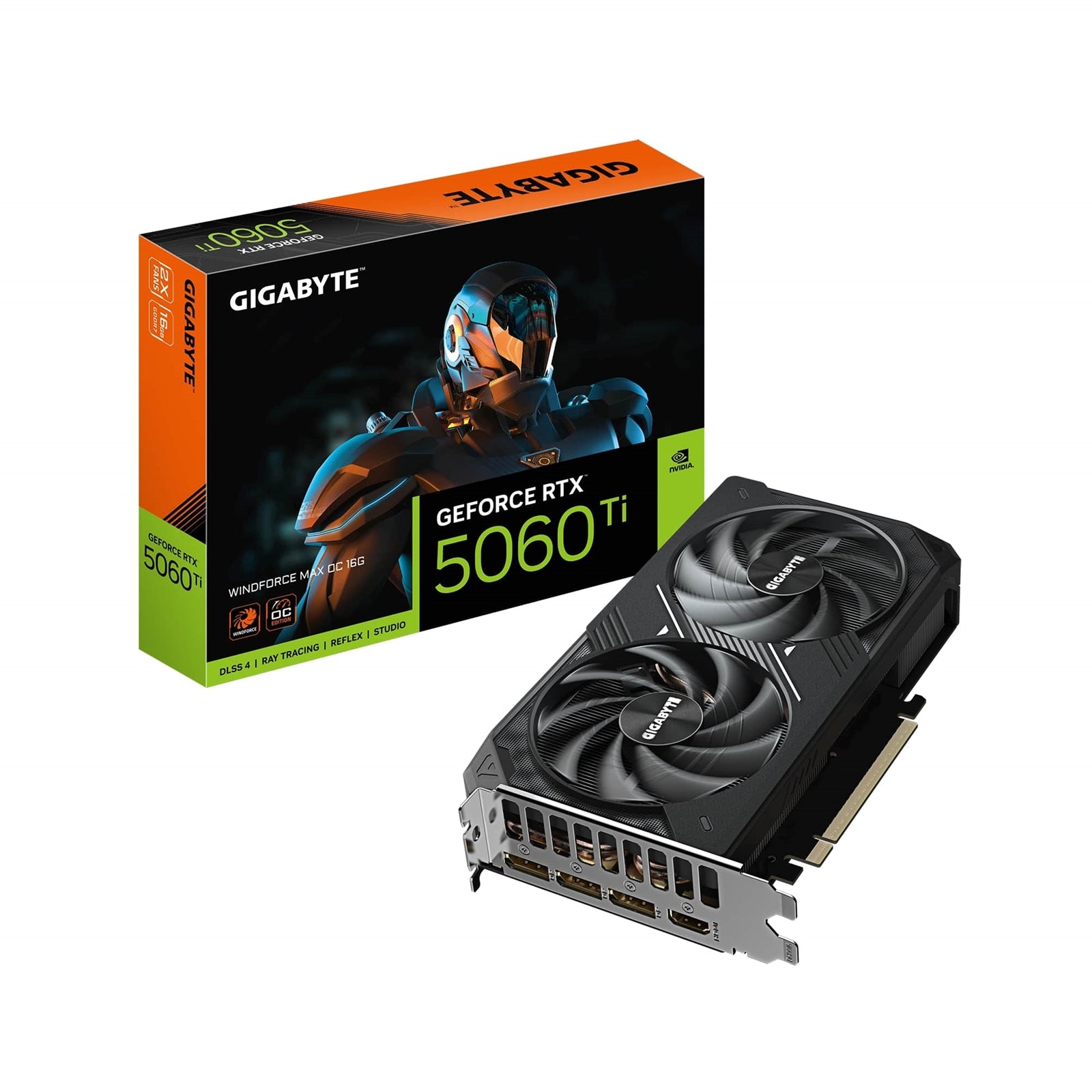

Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX OC 16G Graphics Card

The Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX OC delivers high-performance gaming and content creation capabilities powered by NVIDIA's Blackwell architecture. This graphics card features 16GB of GDDR7 memory across a 128-bit interface, 4608 CUDA cores, and a factory-overclocked core speed of 2587 MHz (15 MHz above reference specifications).

Blackwell Architecture Performance

Built on NVIDIA's Blackwell architecture, this RTX 5060 Ti features fifth-generation Tensor Cores optimized for AI workloads with FP4 precision and DLSS 4 support. Fourth-generation Ray Tracing Cores handle complex geometry and lighting calculations, while new Streaming Multiprocessors are specifically designed for neural shader processing. The 16GB GDDR7 memory operates at 28 Gbps, providing bandwidth for high-resolution textures and multi-monitor setups up to 7680x4320 resolution.

WINDFORCE Cooling Technology

The WINDFORCE cooling system incorporates Hawk fans with aerodynamic blade designs inspired by eagle wing dynamics. This configuration increases air pressure by 53.6% and air volume by 12.5% while maintaining low noise levels. The dual fans feature alternate spinning to reduce turbulence and maximize airflow pressure. Graphene nano lubricant extends bearing life by 2.1 times compared to standard sleeve bearings.

Server-grade thermal conductive gel replaces traditional thermal pads on VRAM and MOSFET components, maintaining optimal contact across uneven surfaces and resisting deformation during transport and extended use. Composite copper heat pipes and a direct-contact copper plate transfer heat from the GPU and memory to the extended heatsink with screen cooling design for improved air circulation.

Power Delivery and Build Quality

The PCB features lower RDS(on) MOSFETs for reduced switching resistance, metal chokes that minimize core energy loss and EMI interference, and low-ESR solid capacitors for enhanced electronic conductivity. A single 8-pin power connector feeds the card, with a recommended 650W PSU for system stability. The compact dimensions (208mm L x 120mm W x 40mm H) fit standard ATX cases.

Display Connectivity

Three DisplayPort 2.1b outputs and one HDMI 2.1b port support up to four simultaneous displays. PCI Express 5.0 interface ensures maximum bandwidth compatibility with modern motherboards. DirectX 12 API and OpenGL 4.6 support provide broad compatibility with current and upcoming game titles.

GIGABYTE Control Center Software

The included GIGABYTE CONTROL CENTER software provides real-time adjustment of clock speeds, voltage, fan curves, and power targets through an intuitive interface. The 3D Active Fan feature enables semi-passive cooling, stopping fans during light workloads and low-power gaming sessions for silent operation.

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 16GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure
CORE CLOCK - 2587 MHz (Reference card :2572 MHz)

Specifications

Graphics Processing
GeForce RTX 5060 Ti

Core Clock
2587 MHz (Reference card :2572 MHz)

CUDA Cores
4608

Memory Clock
28 Gbps

Memory Size
16 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=208 W=120 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060Ti
• Form Factor: 2x ATX
• Memory: 16GB
• Fans: 2
• RGB: No
