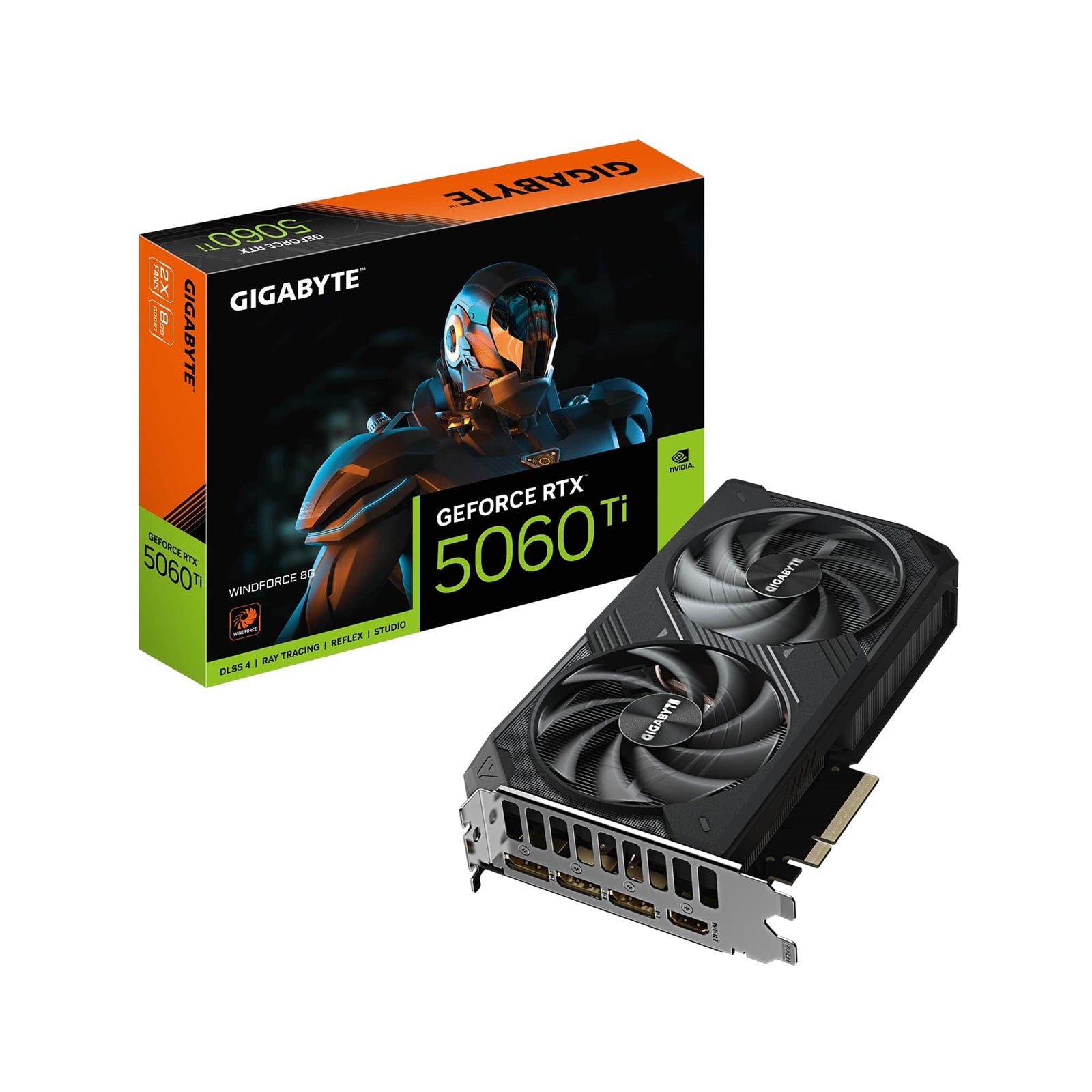

Gigabyte GeForce RTX 5060 Ti Windforce OC 16GB Graphics Card

The Gigabyte GeForce RTX 5060 Ti Windforce OC delivers exceptional gaming and creative performance powered by NVIDIA's Blackwell architecture. This graphics card features 16GB of GDDR7 memory on a 128-bit interface, providing the bandwidth needed for modern AAA titles and content creation workflows.

Performance Specifications

Built with 4608 CUDA Cores and a factory-overclocked boost clock of 2587 MHz (15 MHz above reference), this card handles demanding workloads with ease. The 28 Gbps memory clock ensures rapid data processing, while support for DLSS 4 technology maximizes frame rates without compromising visual quality. DirectX 12 API and OpenGL 4.6 compatibility ensure broad software support across gaming and professional applications.

Windforce Cooling System

The dual Hawk fan design provides efficient thermal management in a compact 208mm x 120mm x 40mm form factor. Server-grade thermal conductive gel ensures optimal heat transfer from the GPU, while the reinforced structure adds durability to the PCB. This cooling solution maintains performance during extended gaming sessions or rendering tasks.

Connectivity and Display Support

Equipped with three DisplayPort 2.1b outputs and one HDMI 2.1b port, the RTX 5060 Ti supports up to four simultaneous displays at resolutions up to 7680x4320. This multi-display capability benefits content creators, streamers, and productivity users who require extensive screen real estate.

Power and Compatibility

The card requires a single 8-pin power connector and a recommended 650W PSU. The PCI-E 5.0 interface ensures compatibility with current motherboards while future-proofing your system. The ATX form factor fits standard PC cases, making installation straightforward.

GeForce RTX 5060 Ti WINDFORCE OC 16G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 16GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure

CORE CLOCK
2587 MHz (Reference card :2572 MHz)

Specification

Graphics Processing
GeForce RTX 5060 Ti

Core Clock
2587 MHz (Reference card :2572 MHz)

CUDA Cores
4608

Memory Clock
28 Gbps

Memory Size
16 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=208 W=120 H=40 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
650W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060Ti
• Form Factor: 2x ATX
• Memory: 8GB
• Fans: 2
• RGB: No
