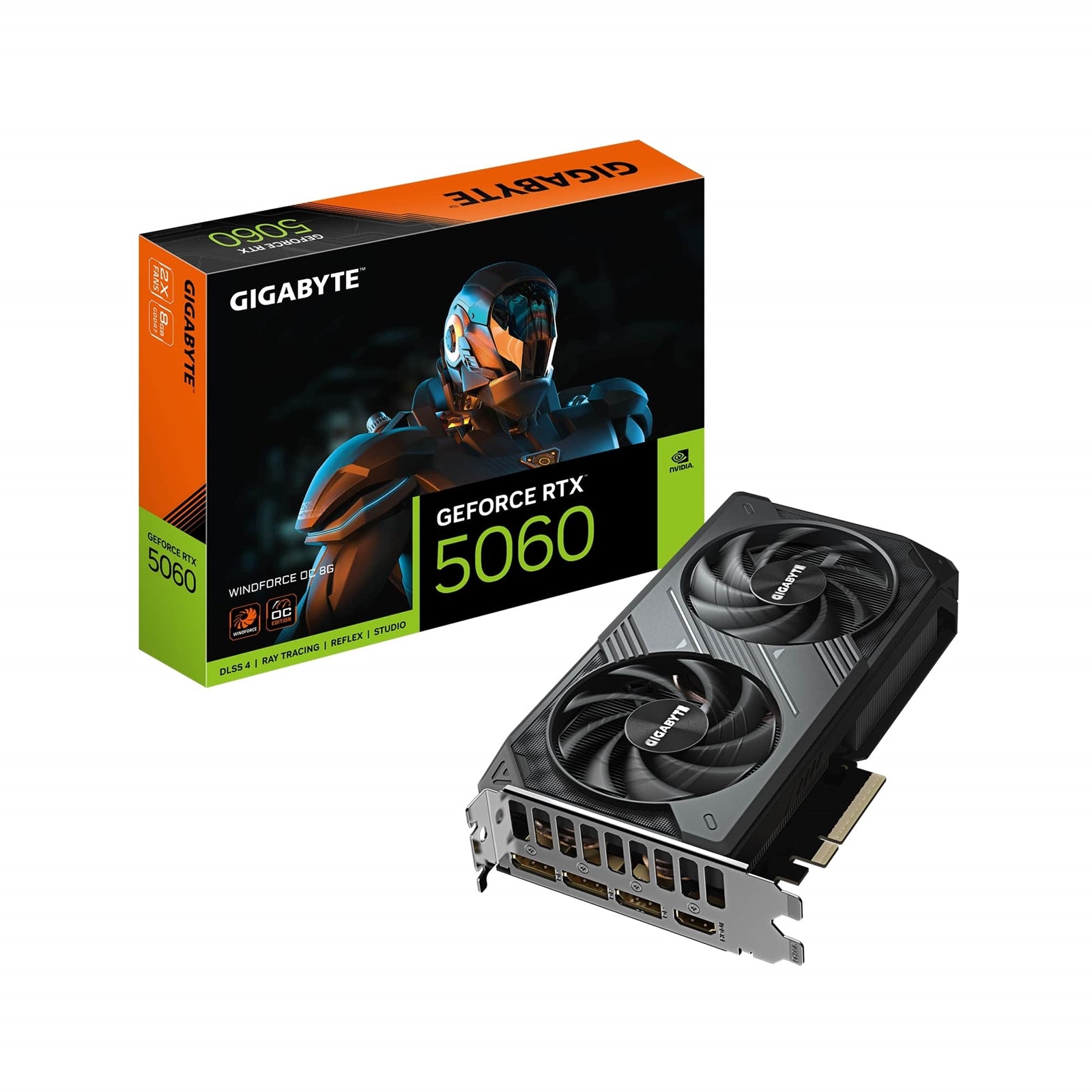

Gigabyte GeForce RTX 5060 WINDFORCE OC 8GB GDDR7 Graphics Card

The Gigabyte GeForce RTX 5060 WINDFORCE OC delivers exceptional gaming performance powered by NVIDIA's Blackwell architecture and DLSS 4 technology. With 8GB of GDDR7 memory and 3840 CUDA cores, this graphics card handles modern games at 1080p and 1440p resolutions with ease.

Advanced Cooling Performance

The WINDFORCE cooling system features dual Hawk fans engineered for optimal airflow and reduced noise levels. Server-grade thermal conductive gel ensures efficient heat dissipation, while the reinforced structure provides enhanced durability. This dual-fan configuration keeps temperatures low during extended gaming sessions without compromising on acoustic performance.

Overclocked Performance

Factory overclocked to 2512MHz core clock (15MHz above reference), this RTX 5060 delivers extra performance straight out of the box. The 3840 CUDA cores work in tandem with 28 Gbps GDDR7 memory across a 128-bit interface to provide smooth frame rates in demanding titles. DirectX 12 API and OpenGL 4.6 support ensure compatibility with the latest games and applications.

Connectivity and Display Options

Equipped with three DisplayPort 2.1b outputs and one HDMI 2.1b port, the RTX 5060 WINDFORCE OC supports multi-monitor setups up to 7680x4320 resolution. Multi-view technology allows up to four simultaneous displays, perfect for content creators and productivity users. PCI-E 5.0 interface ensures maximum bandwidth compatibility with modern motherboards.

Compact and Efficient Design

Measuring 199mm in length, 116mm in width, and 40mm in height, this compact ATX form factor card fits most standard PC cases. The efficient power design requires only a 450W PSU and single 8-pin power connector, making it accessible for mid-range gaming builds without expensive power supply upgrades.

GeForce RTX 5060 WINDFORCE OC 8G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Reinforced structure

CORE CLOCK
2512 MHz (Reference card : 2497MHz)

Graphics Processing
GeForce RTX 5060

Core Clock
2512 MHz (Reference card : 2497MHz)

CUDA Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=199 W=116 H=40

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
450W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
Quick guide

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060
• Form Factor: 2x ATX
• Memory: 8GB
• Fans: 2
• RGB: No
