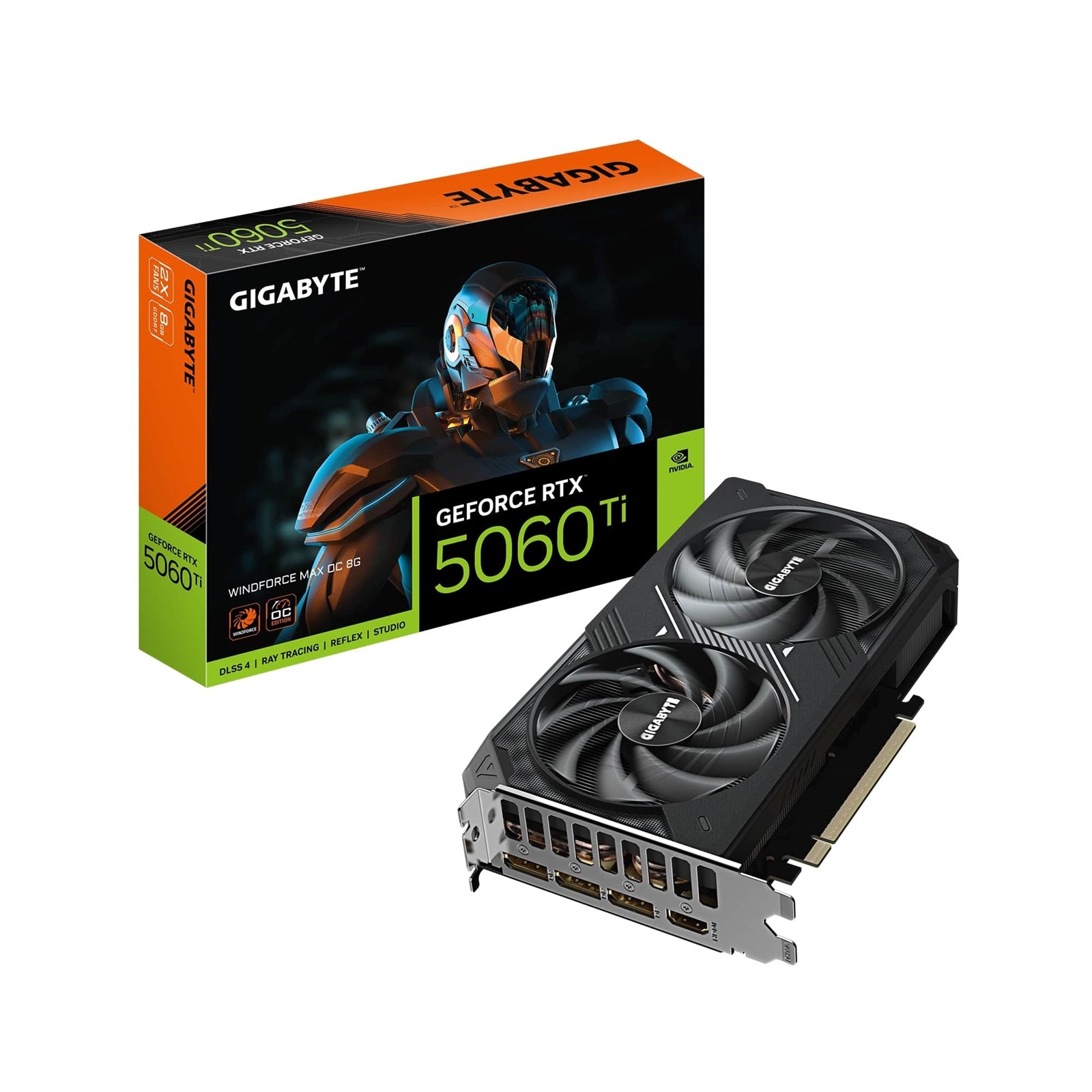

Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX OC 8G Graphics Card

The Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX OC delivers exceptional gaming and creative performance powered by NVIDIA's Blackwell architecture. Equipped with 8GB GDDR7 memory across a 128-bit interface and 4608 CUDA cores, this graphics card reaches boost clock speeds of 2587 MHz, exceeding the reference card specification of 2572 MHz.

Advanced NVIDIA Blackwell Architecture

Built on NVIDIA's latest Blackwell architecture, the RTX 5060 Ti features fifth-generation Tensor Cores optimized for FP4 precision and DLSS 4 technology, delivering maximum AI performance. Fourth-generation Ray Tracing Cores handle complex mega geometry scenarios, while new Streaming Multiprocessors are specifically optimized for neural shaders, providing enhanced performance for modern gaming workloads.

WINDFORCE Cooling Technology

The WINDFORCE cooling system combines multiple advanced technologies for superior thermal management. Unique Hawk fans feature blade designs inspired by eagle wing aerodynamics, reducing air resistance while increasing air pressure by 53.6% and air volume by 12.5% without additional noise. The alternate spinning configuration reduces turbulence between adjacent fans, maximizing airflow pressure across the heatsink.

Server-grade thermal conductive gel replaces traditional thermal pads on critical components including VRAM and MOSFETs. This highly deformable, non-fluid gel maintains optimal contact on uneven surfaces and resists deformation from transport and long-term use. Composite copper heat pipes and a copper plate in direct GPU contact efficiently transfer heat to the extended heatsink, which utilizes screen cooling for enhanced air passage and heat dissipation.

Enhanced Reliability and Durability

Graphene nano lubricant extends sleeve bearing fan lifespan by 2.1 times, approaching double ball bearing longevity while maintaining quieter operation. The power delivery system features lower RDS(on) MOSFETs for reduced switching resistance, metal chokes that minimize core energy loss and EMI interference, and lower ESR solid capacitors ensuring superior electronic conductivity and extended lifespan.

Connectivity and Display Support

The RTX 5060 Ti supports digital resolutions up to 7680x4320 across four simultaneous displays. Output options include three DisplayPort 2.1b ports and one HDMI 2.1b port, providing flexibility for multi-monitor configurations. The card requires a single 8-pin power connector and 650W recommended PSU, connecting via PCI-E 5.0 interface.

Technical Specifications

Measuring 208mm (L) x 120mm (W) x 40mm (H) in a dual-slot ATX form factor, this graphics card features 28 Gbps memory clock speeds and supports DirectX 12 API and OpenGL 4.6. The friendly PCB design utilizes fully automated production processes, eliminating sharp solder protrusions for safer handling during installation.

• Chipset Manufacturer: Nvidia
• Chipset Series: GeForce RTX
• Chipset: RTX5060Ti
• Form Factor: 2x ATX
• Memory: 8GB
• Fans: 2
• RGB: No
