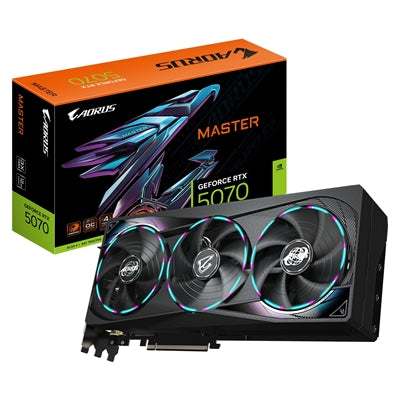

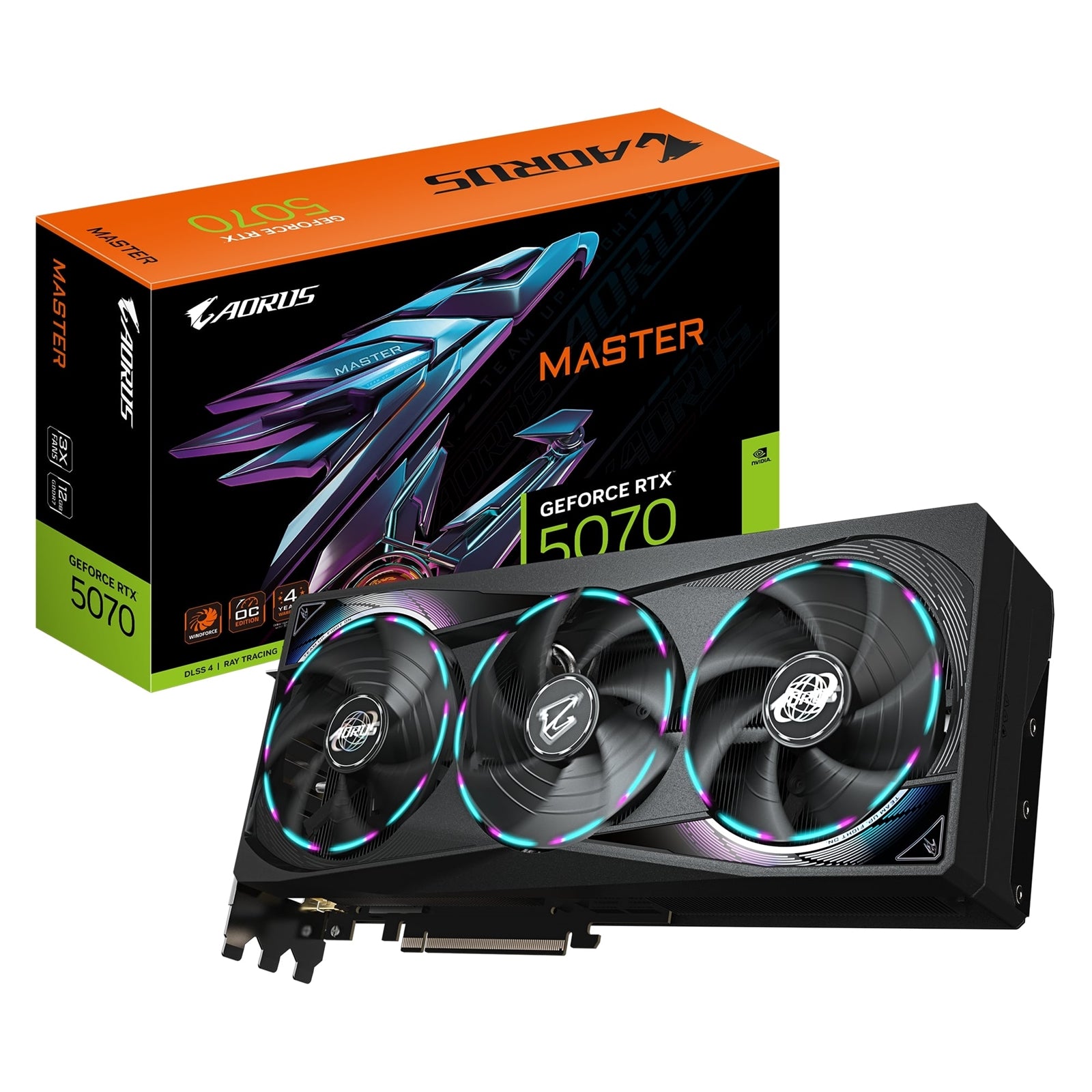

Gigabyte AORUS GeForce RTX 5070 MASTER 12GB Graphics Card

The AORUS GeForce RTX 5070 MASTER 12G delivers professional-grade gaming performance powered by NVIDIA's Blackwell architecture and DLSS 4 technology. Built with 12GB GDDR7 memory on a 192-bit interface, this graphics card features 6144 CUDA cores and a factory-overclocked core speed of 2715 MHz, significantly exceeding the reference card's 2512 MHz.

Advanced Cooling Technology

The WINDFORCE cooling system utilizes triple Hawk fans with server-grade thermal conductive gel to maintain optimal temperatures during intensive gaming sessions. The reinforced structure ensures durability, while the dual BIOS system lets you switch between Performance and Silent modes depending on your needs. The RGB Halo lighting adds customizable aesthetics to match your build.

Technical Specifications

This graphics card supports PCI-E 5.0, DirectX 12 API, and OpenGL 4.6, with a maximum digital resolution of 7680x4320 for ultra-high-definition displays. Memory operates at 28 Gbps, providing exceptional bandwidth for modern gaming titles and creative applications. The card measures 317mm (L) x 136mm (W) x 64mm (H) and requires a single 16-pin power connector.

Connectivity and Display Options

Equipped with three DisplayPort 2.1b outputs and one HDMI 2.1b port, the RTX 5070 AORUS MASTER supports multi-monitor setups with up to 4 simultaneous displays. The latest display standards ensure compatibility with high-refresh-rate monitors and next-generation display technology.

Complete Package

Includes a versatile VGA holder with installation manual, 12V-2x6 to dual PCIe 8-pin adapter, quick guide, warranty registration card, and AORUS identity stickers. Backed by a 4-year warranty with online registration, this graphics card represents Gigabyte's commitment to quality and customer support.

AORUS GeForce RTX 5070 MASTER 12G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070
Integrated with 12GB GDDR7 192bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Halo
Dual BIOS (Performance / Silent)
Reinforced structure
Versatile VGA holder
4 years warranty (Online registration required)

SPECIFICATION

Graphics Processing
GeForce RTX 5070

Core Clock
2715 MHz (Reference card : 2512 MHz)

CUDA Cores
6144

Memory Clock
28 Gbps

Memory Size
12 GB

Memory Type
GDDR7

Memory Bus
192 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680x4320


4

Card Size
L=317 W=136 H=64 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
TBD

Power Connectors
16 Pin x 1

Output
DisplayPort 2.1b x 3
HDMI 2.1b x 1

Accessories
Quick guide
Warranty registration
1 x 12V-2x6 to 2 x PCIe 8pin adapter
AORUS identity stickers
AORUS metal sticker
Versatile VGA holder
Versatile VGA holder manual

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5070
• Form Factor: 3x ATX
• Memory: 12GB
• Fans: 3
• RGB: Yes
