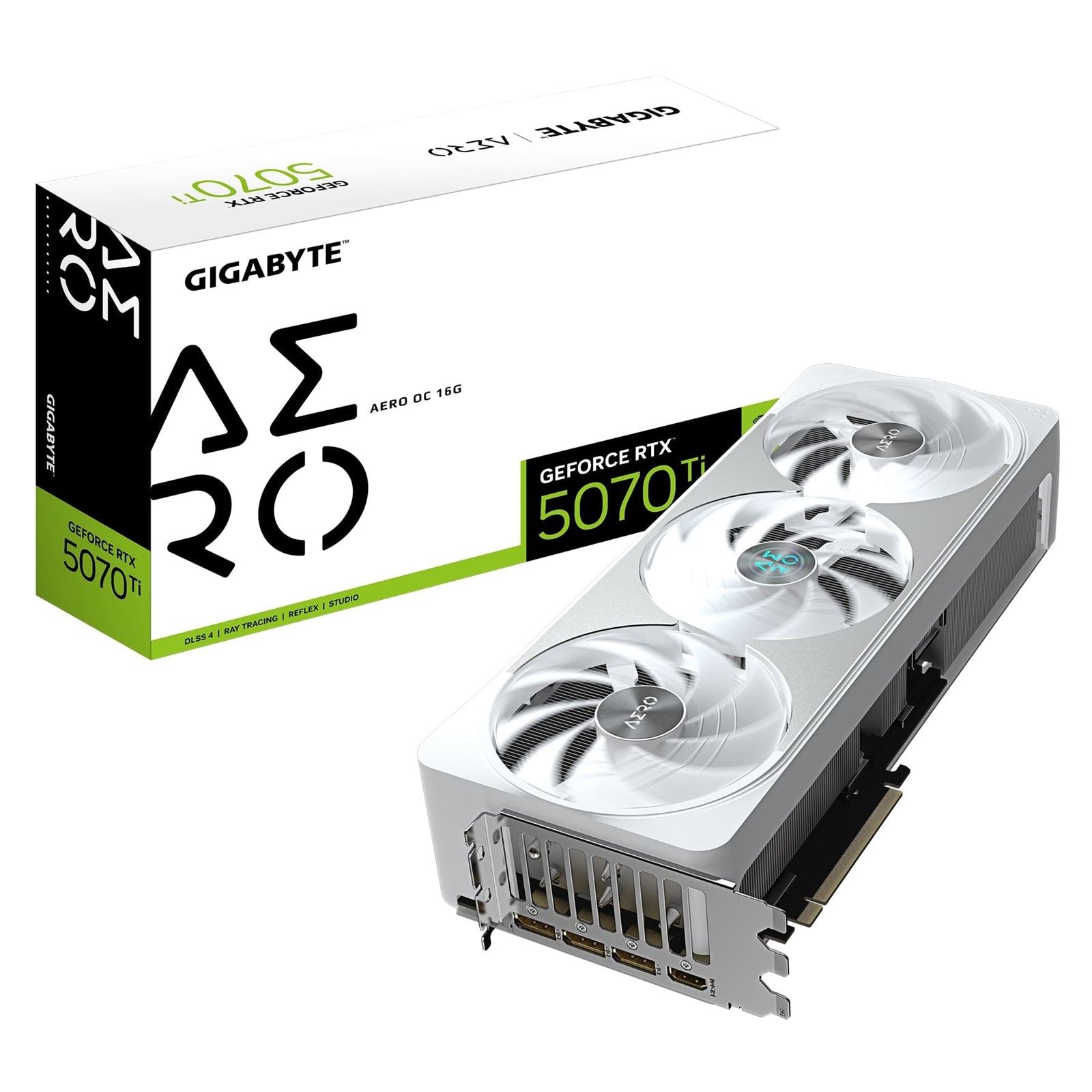

Gigabyte GeForce RTX 5070 Ti AERO OC 16GB GDDR7 Graphics Card

The Gigabyte GeForce RTX 5070 Ti AERO OC delivers exceptional gaming performance powered by NVIDIA's Blackwell architecture and DLSS 4 technology. This white-themed graphics card features 16GB of GDDR7 memory across a 256-bit interface, providing the bandwidth needed for 4K gaming and demanding creative workloads.

Performance Specifications

Equipped with 8960 CUDA cores and a factory-overclocked core speed of 2588 MHz (reference: 2452 MHz), this GPU delivers superior performance over stock configurations. The 28 Gbps memory clock ensures rapid data throughput, while PCIe 5.0 support provides maximum bandwidth compatibility with modern motherboards. The card supports resolutions up to 7680 x 4320 and features DirectX 12 API and OpenGL 4.6 compatibility.

WINDFORCE Cooling System

The triple-fan WINDFORCE cooling system utilizes Hawk fan technology to maintain optimal temperatures during intensive gaming sessions. Server-grade thermal conductive gel ensures efficient heat transfer from critical components. The dual BIOS feature allows switching between Performance and Silent modes, letting you prioritize either maximum performance or quieter operation based on your needs.

Design and Build Quality

Measuring 340mm x 140mm x 70mm, this ATX form factor card features a reinforced structure to prevent PCB sagging. The included versatile VGA holder provides additional support for secure installation. RGB lighting adds customizable aesthetics to match your build theme, while the white color scheme creates a clean, premium appearance.

Connectivity and Power

Display connectivity includes three DisplayPort 2.1a outputs and one HDMI 2.1b port, supporting up to four displays simultaneously. The card requires a single 16-pin power connector and a recommended 750W PSU. A 12V-2x6 to 3x PCIe 8-pin adapter is included for compatibility with existing power supplies.

Package Contents

Your purchase includes the graphics card, VGA manual, warranty notice, power adapter cable, versatile VGA holder with installation manual, and a 4-year warranty (online registration required).

GeForce RTX 5070 Ti AERO OC 16G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070 Ti
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
Reinforced structure
Versatile VGA holder
4 years warranty (Online registration required)

SPECIFICATION

Graphics Processing
GeForce RTX 5070 Ti

Core Clock
2588 MHz (Reference: 2452 MHz)

CUDA Cores
8960

Memory Clock
28 Gbps

Memory Size
16GB

Memory Type
GDDR7

Memory Bus
256 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680 x 4320

Multi-View
4

Card Size
L=340 W=140 H=140 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
750W

Power Connectors
16 pin x 1

Output
DisplayPort 2.1a x 3
HDMI 2.1b x 1

Accessories
VGA manual
Warranty notice
1 x 12V-2x6 to 3 x PCIe 8pin adapter
Versatile VGA holder
Versatile VGA holder manual

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5070Ti
• Form Factor: 3x ATX
• Memory: 16GB
• Fans: 3
• RGB: Yes
