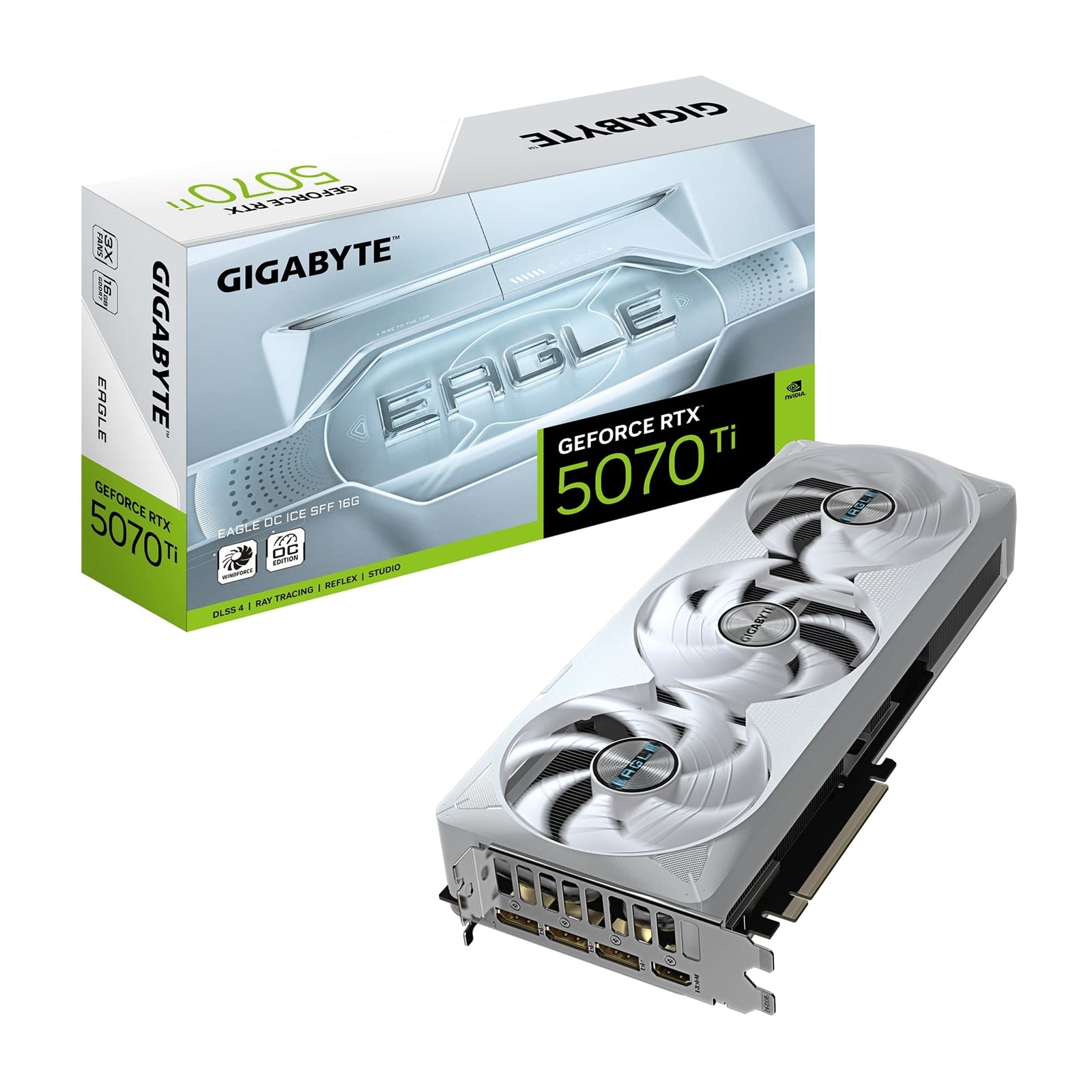

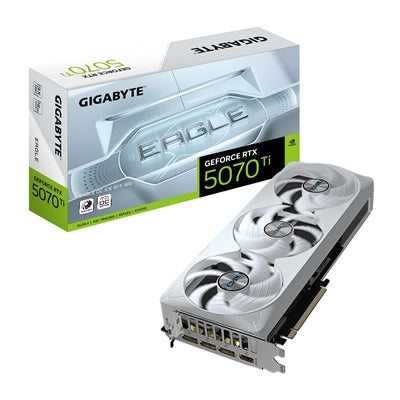

Gigabyte GeForce RTX 5070 Ti EAGLE OC ICE SFF Graphics Card

The Gigabyte GeForce RTX 5070 Ti EAGLE OC ICE SFF delivers professional-grade performance in a compact white design. Built on NVIDIA's Blackwell architecture with DLSS 4 technology, this graphics card combines 16GB of GDDR7 memory with 8960 CUDA cores for demanding gaming and content creation workflows.

Performance Specifications

Factory overclocked to 2542 MHz (92 MHz above reference), this RTX 5070 Ti features 16GB GDDR7 memory running at 28 Gbps across a 256-bit interface. The card supports PCI-E 5.0, DirectX 12 API, and OpenGL 4.6, with maximum resolution output of 7680 x 4320 for multi-monitor setups.

WINDFORCE Cooling System

The triple-fan WINDFORCE cooling solution utilizes Hawk fan technology with server-grade thermal conductive gel for optimal heat dissipation. This cooling design maintains performance under load while keeping noise levels controlled. The card includes Dual BIOS functionality, allowing users to switch between Performance and Silent modes depending on their requirements.

Compact SFF-Ready Design

Measuring 304mm x 126mm x 50mm, this NVIDIA SFF-ready card fits small form factor builds without sacrificing performance. The white ICE aesthetic features RGB lighting accents, while the reinforced structure ensures durability during installation and transport. A versatile VGA holder is included to prevent GPU sag in vertical or horizontal mounting configurations.

Connectivity and Power

Display outputs include three DisplayPort 2.1a ports and one HDMI 2.1b port, supporting up to four simultaneous displays. The card requires a single 16-pin power connector and a recommended 750W PSU. A 12V-2x6 to 3x PCIe 8-pin adapter is included for compatibility with standard power supplies.

Package Contents

Includes VGA manual, 12V-2x6 to 3x PCIe 8-pin power adapter, versatile VGA holder with installation manual.

GeForce RTX 5070 Ti EAGLE OC ICE SFF 16G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070 Ti
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
NVIDIA SFF-ready
Reinforced structure
Versatile VGA holder

SPECIFICATION

Graphics Processing
GeForce RTX 5070 Ti

Core Clock
2542 MHz (Reference: 2452 MHz)

CUDA Cores
8960

Memory Clock
28 Gbps

Memory Size
16GB

Memory Type
GDDR7

Memory Bus
256 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680 x 4320

Multi-View
4

Card Size
L=304 W=126 H=50 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
750W

Power Connectors
16 pin x 1

Output
DisplayPort 2.1a x 3
HDMI 2.1b x 1

Accessories
VGA manual
1 x 12V-2x6 to 3x PCIe 8pin adapter
Versatile VGA holder
Versatile VGA holder manual

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5070Ti
• Form Factor: 2x ATX
• Memory: 16GB
• Fans: 3
• RGB: No
