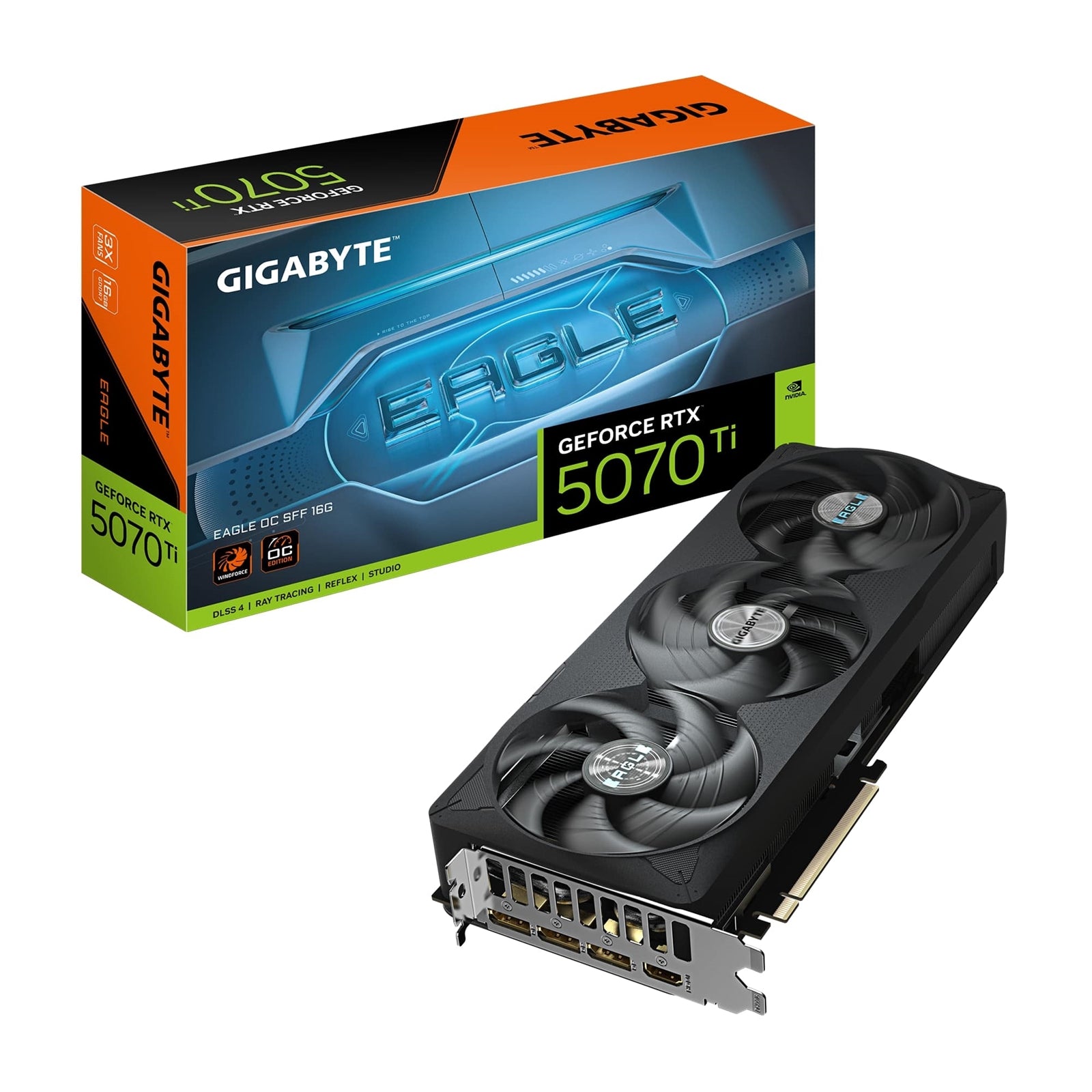

Gigabyte GeForce RTX 5070 Ti EAGLE OC SFF 16GB Graphics Card

The Gigabyte GeForce RTX 5070 Ti EAGLE OC SFF delivers exceptional gaming and creative performance in a compact form factor. Built on NVIDIA's Blackwell architecture with DLSS 4 technology, this graphics card features 16GB of GDDR7 memory across a 256-bit interface, providing the bandwidth needed for 4K gaming, content creation, and AI-accelerated workflows.

Performance Specifications

This RTX 5070 Ti variant features a factory overclock with a boost clock of 2542 MHz, exceeding the reference 2452 MHz specification. With 8960 CUDA cores and 28 Gbps memory speed, the card handles demanding games and professional applications with ease. The PCI-E 5.0 interface ensures maximum bandwidth compatibility with modern motherboards, while support for DirectX 12 API and OpenGL 4.6 provides broad software compatibility.

WINDFORCE Cooling System

Gigabyte's WINDFORCE cooling solution employs three Hawk fans designed for optimal airflow and reduced noise levels. The cooling system incorporates server-grade thermal conductive gel for improved heat transfer from GPU to heatsink. The dual BIOS feature allows switching between Performance and Silent modes, letting you prioritize either maximum performance or quieter operation based on your needs.

NVIDIA SFF-Ready Design

Measuring 304mm x 126mm x 50mm, this SFF-ready card fits in compact cases without sacrificing performance. The reinforced structure prevents PCB bending and ensures long-term durability. The included versatile VGA holder provides additional support for installation in various case configurations.

Display Connectivity

Connect up to four displays simultaneously with three DisplayPort 2.1a outputs and one HDMI 2.1b port. The card supports resolutions up to 7680 x 4320, making it suitable for multi-monitor setups, ultrawide displays, and 8K content creation workflows.

Power Requirements

The RTX 5070 Ti EAGLE OC SFF requires a 750W power supply and uses a single 16-pin power connector. A 12V-2x6 to 3x PCIe 8-pin adapter is included for compatibility with older PSU models.

GeForce RTX 5070 Ti EAGLE OC SFF 16G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070 Ti
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
NVIDIA SFF-ready
Reinforced structure
Versatile VGA holder

SPECIFICATION

Graphics Processing
GeForce RTX 5070 Ti

Core Clock
2542 MHz (Reference: 2452 MHz)

CUDA Cores
8960

Memory Clock
28 Gbps

Memory Size
16GB

Memory Type
GDDR7

Memory Bus
256 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680 x 4320

Multi-View
4

Card Size
L=304 W=126 H=50 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
750W

Power Connectors
16 pin x 1

Output
DisplayPort 2.1a x 3
HDMI 2.1b x 1

Accessories
VGA manual
1 x 12V-2x6 to 3x PCIe 8pin adapter
Versatile VGA holder
Versatile VGA holder manual

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5070Ti
• Form Factor: 2x ATX
• Memory: 16GB
• Fans: 3
• RGB: No
