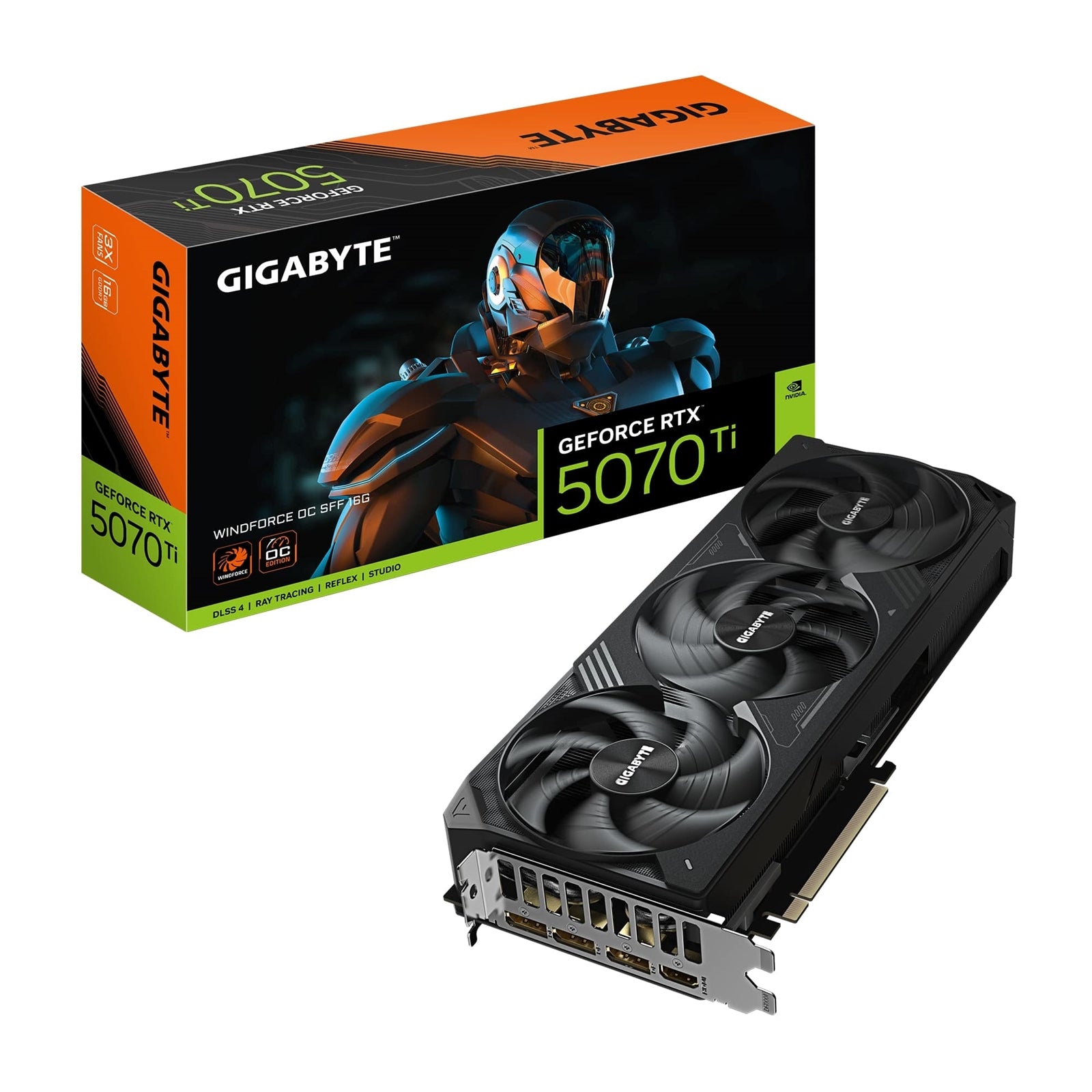

Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16GB GDDR7 Graphics Card

The Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF delivers exceptional gaming and creative performance in a compact form factor. Powered by NVIDIA's Blackwell architecture with DLSS 4 technology, this graphics card features 16GB of GDDR7 memory and 8960 CUDA cores for smooth 4K gaming and demanding workloads.

Advanced Cooling Performance

The WINDFORCE cooling system features triple Hawk fans engineered for maximum airflow and reduced noise. Server-grade thermal conductive gel ensures optimal heat dissipation across the GPU, maintaining stable performance during extended gaming sessions. The dual BIOS configuration offers Performance and Silent modes, allowing you to balance between maximum output and quiet operation based on your needs.

Compact SFF-Ready Design

Measuring 304mm x 126mm x 50mm, this NVIDIA SFF-ready graphics card fits perfectly in small form factor builds without compromising performance. The reinforced structure prevents PCB bending and ensures long-term durability. The included versatile VGA holder provides additional support for secure installation in any case configuration.

Overclocked Performance

Factory overclocked to 2497 MHz (45 MHz above reference), this RTX 5070 Ti delivers enhanced frame rates right out of the box. The 16GB GDDR7 memory running at 28 Gbps across a 256-bit bus provides ample bandwidth for high-resolution textures and complex scenes in modern games and professional applications.

Connectivity and Display Options

Equipped with three DisplayPort 2.1a outputs and one HDMI 2.1b port, this graphics card supports up to four displays simultaneously at resolutions up to 7680x4320. The PCI-E 5.0 interface ensures maximum bandwidth compatibility with the latest motherboards. A single 16-pin power connector simplifies cable management, with a 12V-2x6 to 3x PCIe 8-pin adapter included for older PSUs.

Technical Specifications

GeForce RTX 5070 Ti WINDFORCE OC SFF 16G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070 Ti
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
Dual BIOS (Performance / Silent)
NVIDIA SFF-ready
Reinforced structure
Versatile VGA holder

SPECIFICATION

Graphics Processing
GeForce RTX 5070 Ti

Core Clock
2497 MHz (Reference: 2452 MHz)

CUDA Cores
8960

Memory Clock
28 Gbps

Memory Size
16GB

Memory Type
GDDR7

Memory Bus
256 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680 x 4320

Multi-View
4

Card Size
L=304 W=126 H=50 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
750W

Power Connectors
16 pin x 1

Output
DisplayPort 2.1a x 3
HDMI 2.1b x 1

Accessories
VGA manual
1 x 12V-2x6 to 3 x PCIe 8pin adapter
Versatile VGA holder
Versatile VGA holder manual

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5070Ti
• Form Factor: 2x ATX
• Memory: 16GB
• Fans: 3
• RGB: No
