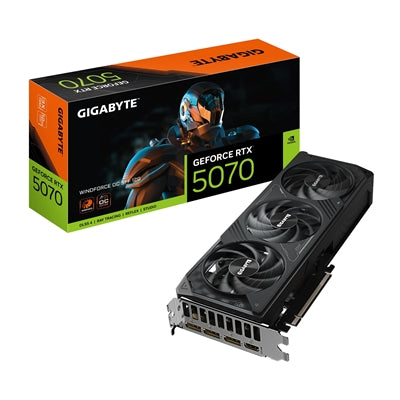

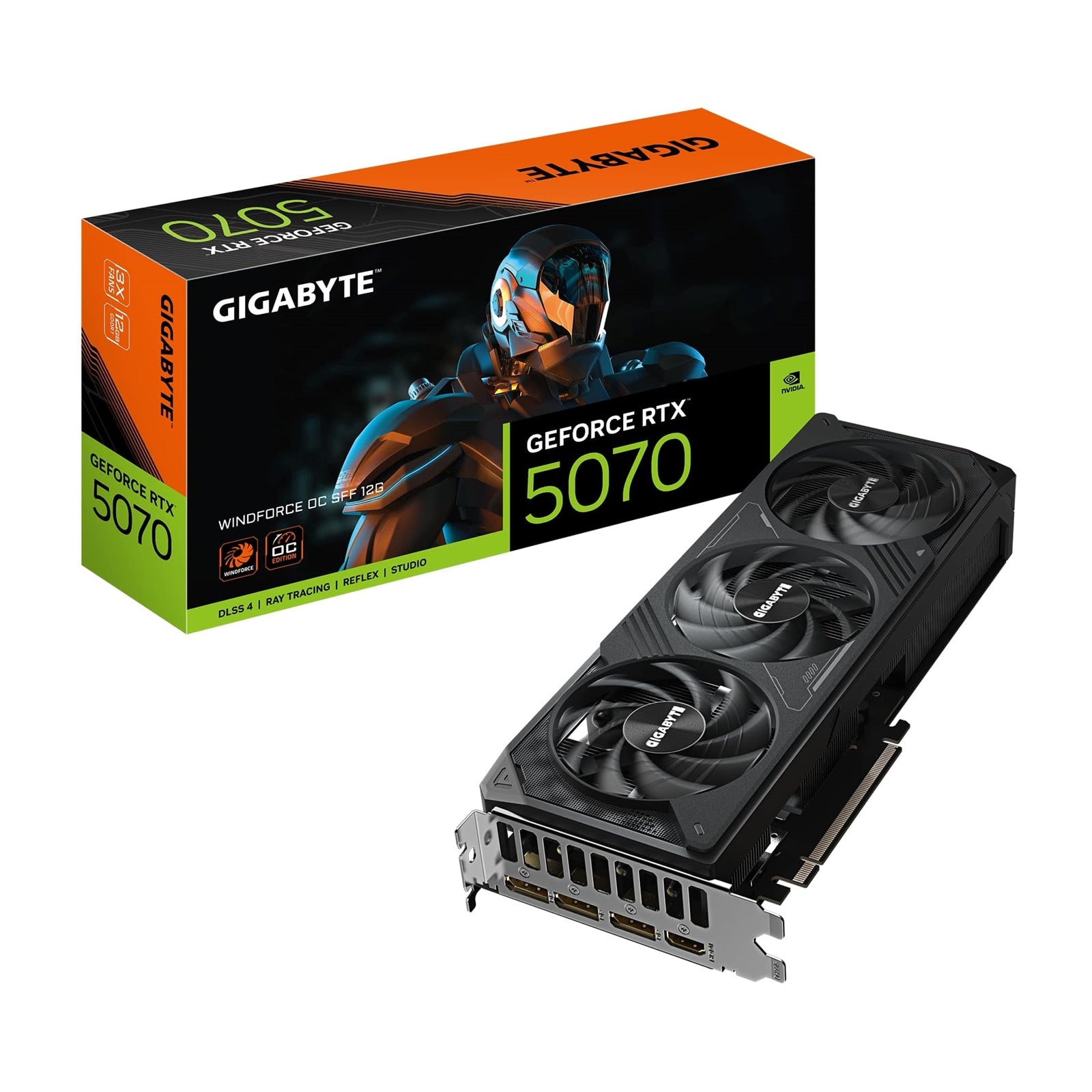

Gigabyte GeForce RTX 5070 WINDFORCE OC SFF Graphics Card

The Gigabyte GeForce RTX 5070 WINDFORCE OC SFF delivers professional-grade performance in a compact form factor. Built on NVIDIA's Blackwell architecture with DLSS 4 technology, this graphics card features 12GB of GDDR7 memory across a 192-bit interface, providing the bandwidth needed for demanding workloads and high-resolution gaming.

Performance Specifications

Equipped with 6144 CUDA cores and a boosted core clock of 2542 MHz (compared to the reference 2512 MHz), this overclocked variant delivers enhanced performance out of the box. The 28 Gbps memory clock ensures rapid data transfer, while PCI-E 5.0 compatibility provides maximum bandwidth for modern systems. Support for DirectX 12 API and OpenGL 4.6 ensures compatibility with current and future applications.

WINDFORCE Cooling System

The triple-fan WINDFORCE cooling system utilizes Hawk fan technology to maintain optimal temperatures during extended operation. Server-grade thermal conductive gel ensures efficient heat transfer from critical components. This cooling solution operates quietly while keeping the GPU at safe temperatures, even during intensive workloads.

Small Form Factor Design

This NVIDIA SFF-ready card features a reinforced structure designed for compact builds without compromising performance. The ATX PCB form factor fits in space-constrained cases while maintaining the cooling efficiency of larger cards. A single 16-pin power connector simplifies cable management in tight spaces.

Display Connectivity

Multiple display outputs include three DisplayPort 2.1b ports and one HDMI 2.1b port, supporting up to four simultaneous displays. The card handles resolutions up to 7680x4320, making it suitable for multi-monitor setups, content creation, and ultra-high-resolution gaming. Both DisplayPort and HDMI 2.1b ensure compatibility with the latest high-refresh-rate monitors and HDR displays.

Package Contents

Includes a quick guide for installation and a 12V-2x6 to 2x PCIe 8-pin adapter for compatibility with existing power supplies. The card is ready to install in systems meeting the recommended PSU requirements.

GeForce RTX 5070 WINDFORCE OC SFF 12G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5070
Integrated with 12GB GDDR7 192bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
NVIDIA SFF-ready
Reinforced structure

SPECIFICATION

Graphics Processing
GeForce RTX 5070

Core Clock
2542 MHz (Reference card : 2512 MHz)

CUDA Cores
6144

Memory Clock
28 Gbps

Memory Size
12 GB

Memory Type
GDDR7

Memory Bus
192 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680x4320

Multi-View
4

Card Size
TBD

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
TBD

Power Connectors
16 Pin x 1

Output
DisplayPort 2.1b x 3
HDMI 2.1b x 1

Accessories
Quick guide
1 x 12V-2x6 to 2x PCIe 8pin adapter

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5070
• Form Factor: 2x ATX
• Memory: 12GB
• Fans: 3
• RGB: No
