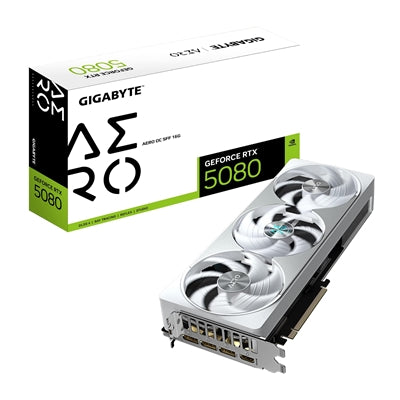

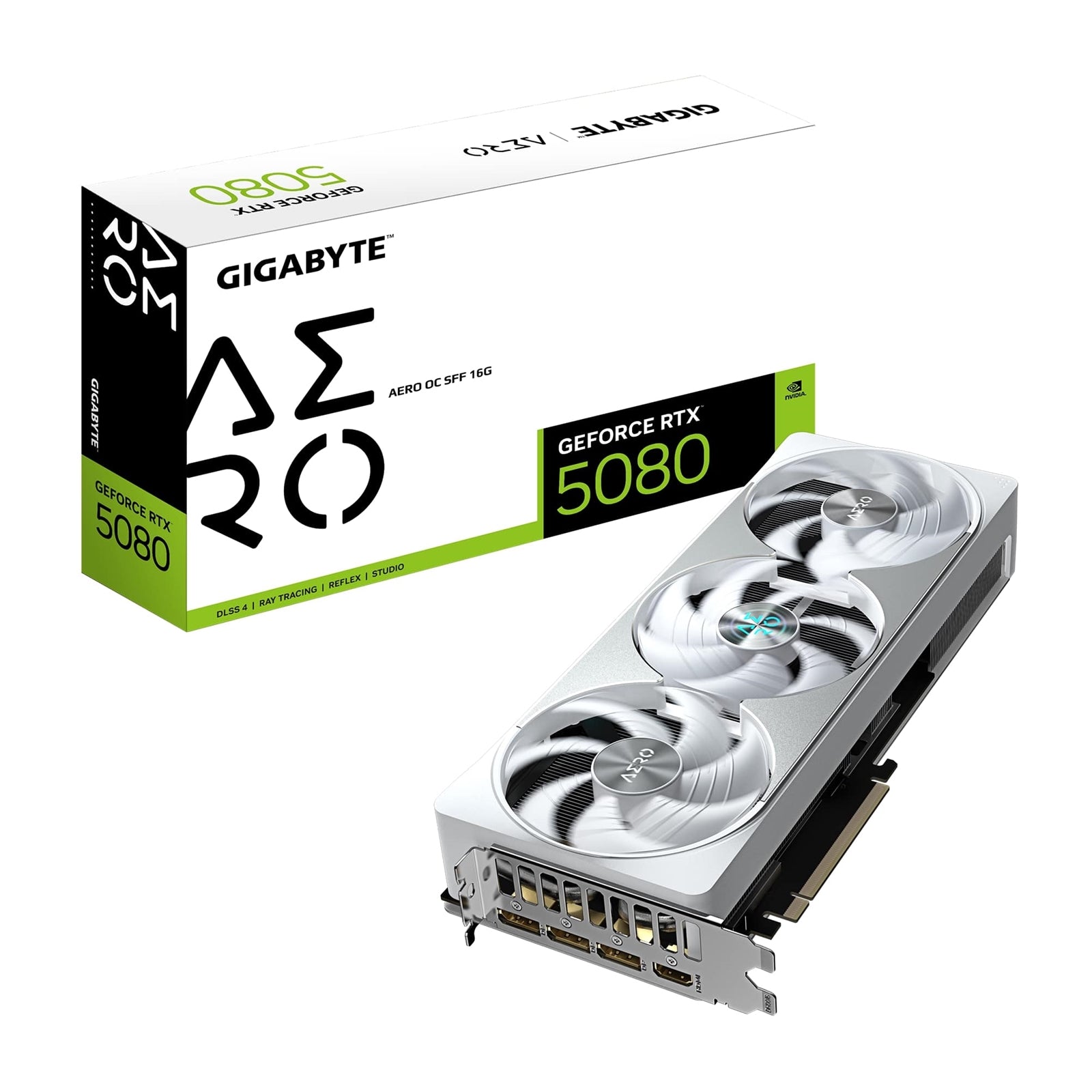

Gigabyte GeForce RTX 5080 AERO OC SFF 16GB GDDR7 Graphics Card

The Gigabyte GeForce RTX 5080 AERO OC SFF delivers professional-grade performance in a compact white design. Built on NVIDIA's Blackwell architecture with DLSS 4 technology, this graphics card features 16GB of GDDR7 memory running at 30 Gbps across a 256-bit interface, providing exceptional bandwidth for demanding workloads and gaming.

Performance Specifications

Equipped with 10752 CUDA cores and a factory-overclocked core speed of 2730 MHz (113 MHz above reference), this RTX 5080 handles ray tracing, AI processing, and high-resolution gaming with ease. The card supports resolutions up to 7680 x 4320 and features PCI-E 5.0 compatibility for maximum bandwidth. DirectX 12 API and OpenGL 4.6 support ensure compatibility with modern games and professional applications.

WINDFORCE Cooling System

The triple-fan WINDFORCE cooling system utilizes Hawk fan technology with server-grade thermal conductive gel for optimal heat dissipation. This cooling solution maintains lower temperatures during intensive workloads while keeping noise levels minimal. The dual BIOS switch allows toggling between Performance and Silent modes to match your usage scenario.

NVIDIA SFF-Ready Design

Measuring 304mm (L) x 126mm (W) x 50mm (H), this NVIDIA SFF-ready card fits compact builds without sacrificing performance. The reinforced structure prevents PCB flex and includes a versatile VGA holder for additional support. The white aesthetic with RGB lighting creates a clean look that complements modern builds.

Connectivity and Power

Display outputs include three DisplayPort 2.1a ports and one HDMI 2.1b port, supporting multi-view configurations across up to four displays. Power delivery comes through a single 16-pin connector, with a 12V-2x6 to 3x PCIe 8-pin adapter included. An 850W PSU is recommended for stable operation.

Package Contents and Warranty

Includes VGA manual, warranty notice, power adapter, versatile VGA holder with installation manual. Gigabyte backs this graphics card with a 4-year warranty when registered online.

GeForce RTX 5080 AERO OC SFF 16G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5080
Integrated with 16GB GDDR7 256bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade thermal conductive gel
RGB Lighting
Dual BIOS (Performance / Silent)
NVIDIA SFF-ready
Reinforced structure
Versatile VGA holder
4 years warranty (Online registration required)

SPECIFICATION

Graphics Processing
GeForce RTX 5080

Core Clock
2730 MHz (Reference: 2617 MHz)

CUDA Cores
10752

Memory Clock
30 Gbps

Memory Size
16GB

Memory Type
GDDR7

Memory Bus
256 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680 x 4320

Multi-View
4

Card Size
L=304 W=126 H=50 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
850W

Power Connectors
16 pin x 1

Output
DisplayPort 2.1a x 3
HDMI 2.1b x 1

Accessories
VGA manual
Warranty notice
1 x 12V-2x6 to 3 x PCIe 8pin adapter
Versatile VGA holder
Versatile VGA holder manual

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5080
• Form Factor: 2x ATX
• Memory: 16GB
• Fans: 3
• RGB: Yes
