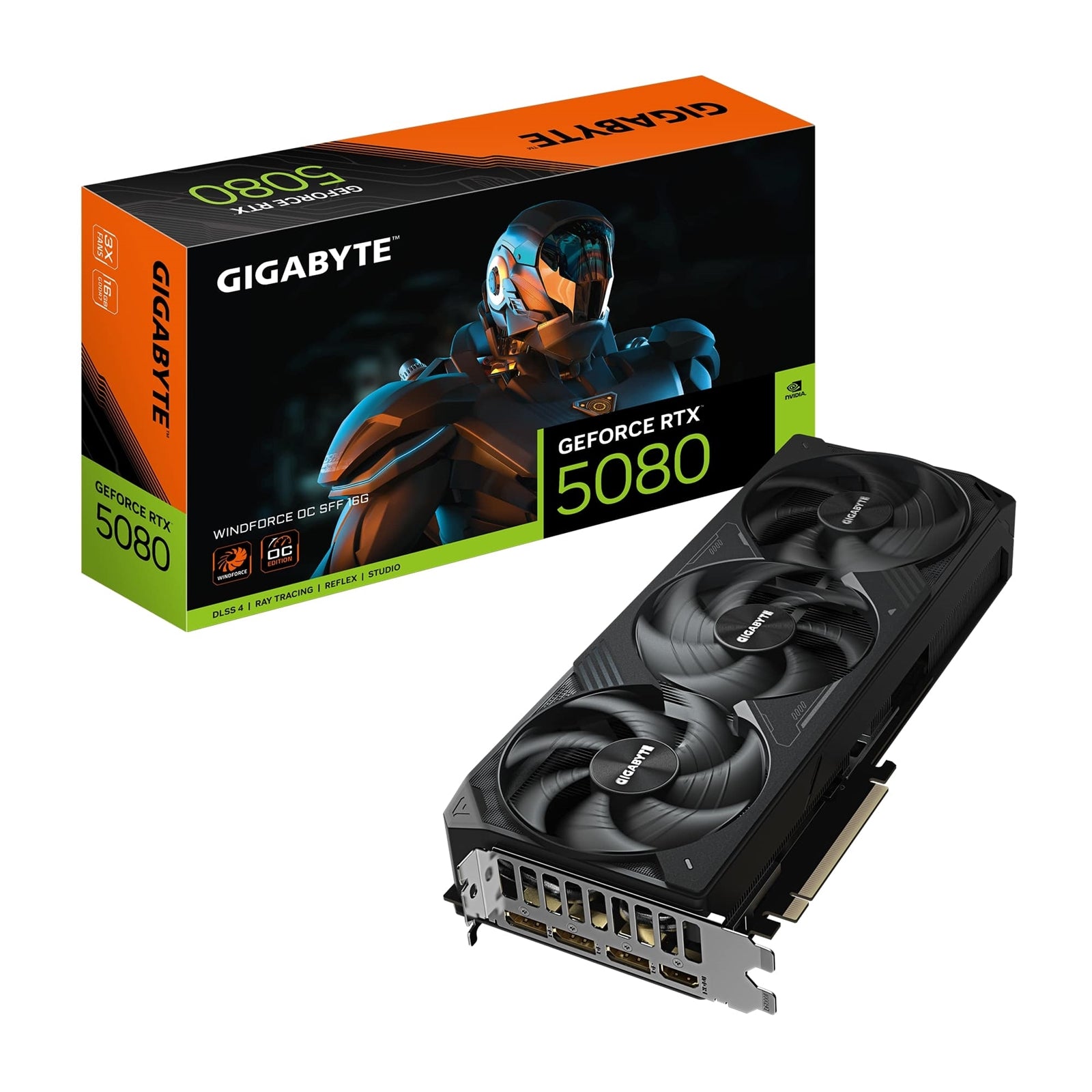

Gigabyte GeForce RTX 5080 WINDFORCE OC SFF Graphics Card

The Gigabyte GeForce RTX 5080 WINDFORCE OC SFF delivers professional-grade performance in a compact 304mm design. Built on NVIDIA's Blackwell architecture with DLSS 4 technology, this graphics card features 16GB of GDDR7 memory running at 30 Gbps across a 256-bit interface, providing the bandwidth needed for 4K gaming and content creation workloads.

Performance Specifications

Equipped with 10752 CUDA cores and a boosted core clock of 2670 MHz (53 MHz above reference), this card handles ray tracing, AI-accelerated rendering, and modern gaming titles. The PCI-E 5.0 interface ensures maximum data throughput, while support for up to 7680 x 4320 resolution and 4-way multi-view makes it suitable for multi-monitor setups.

WINDFORCE Cooling System

The triple Hawk fan cooling solution keeps temperatures controlled during intensive workloads. Server-grade thermal conductive gel improves heat transfer from the GPU, while the reinforced structure prevents PCB flex and protects components. The dual BIOS feature allows switching between Performance and Silent modes depending on your priority.

Small Form Factor Design

NVIDIA SFF-ready certification confirms compatibility with compact PC builds. Measuring 304 x 126 x 50 mm, this card fits in smaller cases without sacrificing cooling performance. The included versatile VGA holder provides additional support to prevent GPU sag in various mounting orientations.

Connectivity and Power

Three DisplayPort 2.1a outputs and one HDMI 2.1b port support the latest display standards, including HDR and high refresh rates. A single 16-pin power connector simplifies cable management, with an included 12V-2x6 to 3x PCIe 8-pin adapter for PSU compatibility. An 850W power supply is recommended for stable operation.

Technical Specifications

Graphics Processing: GeForce RTX 5080
Core Clock: 2670 MHz (Reference: 2617 MHz)
CUDA Cores: 10752
Memory: 16GB GDDR7
Memory Clock: 30 Gbps
Memory Bus: 256 bit
Card Bus: PCI-E 5.0
Digital Max Resolution: 7680 x 4320
Multi-View: 4
Card Size: L=304 W=126 H=50 mm
PCB Form: ATX
DirectX: DirectX 12 API
OpenGL: OpenGL 4.6
Recommended PSU: 850W
Power Connectors: 16 pin x 1
Output: DisplayPort 2.1a x 3, HDMI 2.1b x 1

Package Contents

VGA manual, 12V-2x6 to 3x PCIe 8-pin adapter, versatile VGA holder with installation manual.

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5080
• Form Factor: 2x ATX
• Memory: 16GB
• Fans: 3
• RGB: No
