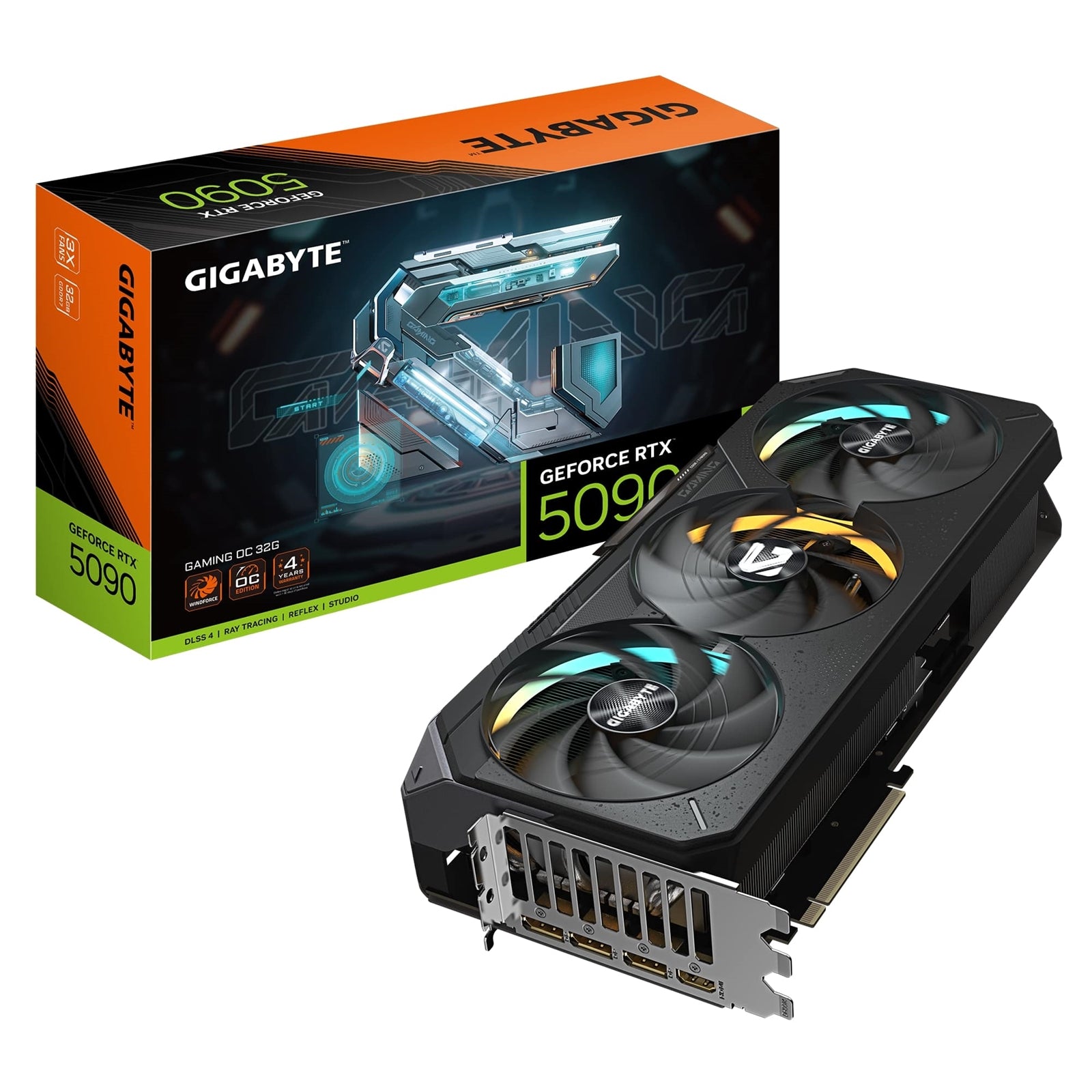

Gigabyte GeForce RTX 5090 GAMING OC 32G Graphics Card

The Gigabyte GeForce RTX 5090 GAMING OC 32G delivers professional-grade graphics performance powered by NVIDIA's Blackwell architecture. This high-performance graphics card features 32GB GDDR7 memory with a 512-bit memory interface, providing the bandwidth needed for demanding 4K and 8K workflows, AI applications, and next-generation gaming.

NVIDIA Blackwell Architecture Performance

Built on the GeForce RTX 5090 GPU, this graphics card packs 21760 CUDA cores with a boosted core clock of 2550 MHz, significantly higher than the reference card's 2407MHz. The 28 Gbps memory clock and GDDR7 technology ensure rapid data processing for ray tracing, DLSS 4, and compute-intensive tasks. The PCI-E 5.0 interface maximizes bandwidth between your CPU and GPU.

WINDFORCE Cooling System

The triple-fan WINDFORCE cooling system utilizes Hawk fan technology to maintain optimal temperatures during extended workloads. Server-grade thermal conductive gel ensures efficient heat transfer from the GPU die to the heatsink. The dual BIOS feature lets you switch between Performance and Silent modes, adapting to your specific needs whether you prioritize maximum performance or quieter operation.

Reinforced Construction and RGB Lighting

The reinforced structure prevents PCB bending and supports the card's substantial 342mm length. The included versatile VGA holder provides additional support for secure installation. RGB Halo lighting adds customizable aesthetics to complement your build while maintaining the card's professional appearance.

Display Connectivity

Three DisplayPort 2.1a outputs and one HDMI 2.1b port support up to 7680x4320 resolution with multi-view capability across four displays simultaneously. This connectivity suite handles professional multi-monitor setups and high-refresh-rate gaming configurations.

Technical Specifications

The card measures 342mm (L) x 152mm (W) x 70mm (H) in ATX form factor and requires a 1000W power supply with a single 16-pin power connector. DirectX 12 API and OpenGL 4.6 support ensure compatibility with current and future applications. Gigabyte includes a 4-year warranty with online registration, a 12V-2x6 to 4x PCIe 8-pin adapter, versatile VGA holder with manual, quick guide, and warranty registration documentation.

GeForce RTX 5090 GAMING OC 32G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5090
Integrated with 32GB GDDR7 512bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Halo
Dual BIOS (Performance / Silent)
Reinforced structure
Versatile VGA holder
4 years warranty (Online registration required)

SPECIFICATION

Graphics Processing
GeForce RTX 5090

Core Clock
2550 MHz (Reference card : 2407MHz)

CUDA Cores
21760

Memory Clock
28 Gbps

Memory Size
32 GB

Memory Type
GDDR7

Memory Bus
512 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680x4320

Multi-View
4

Card Size
L=342 W=152 H=70 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
1000W

Power Connectors
16 Pin x 1

Output
DisplayPort 2.1a x 3
HDMI 2.1b x 1

Accessories
Quick guide
Warranty registration
1 x 12V-2x6 to 4 x PCIe 8pin adapter
Versatile VGA holder
Versatile VGA holder manual

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5090
• Form Factor: 3x ATX
• Memory: 32GB
• Fans: 3
• RGB: Yes
