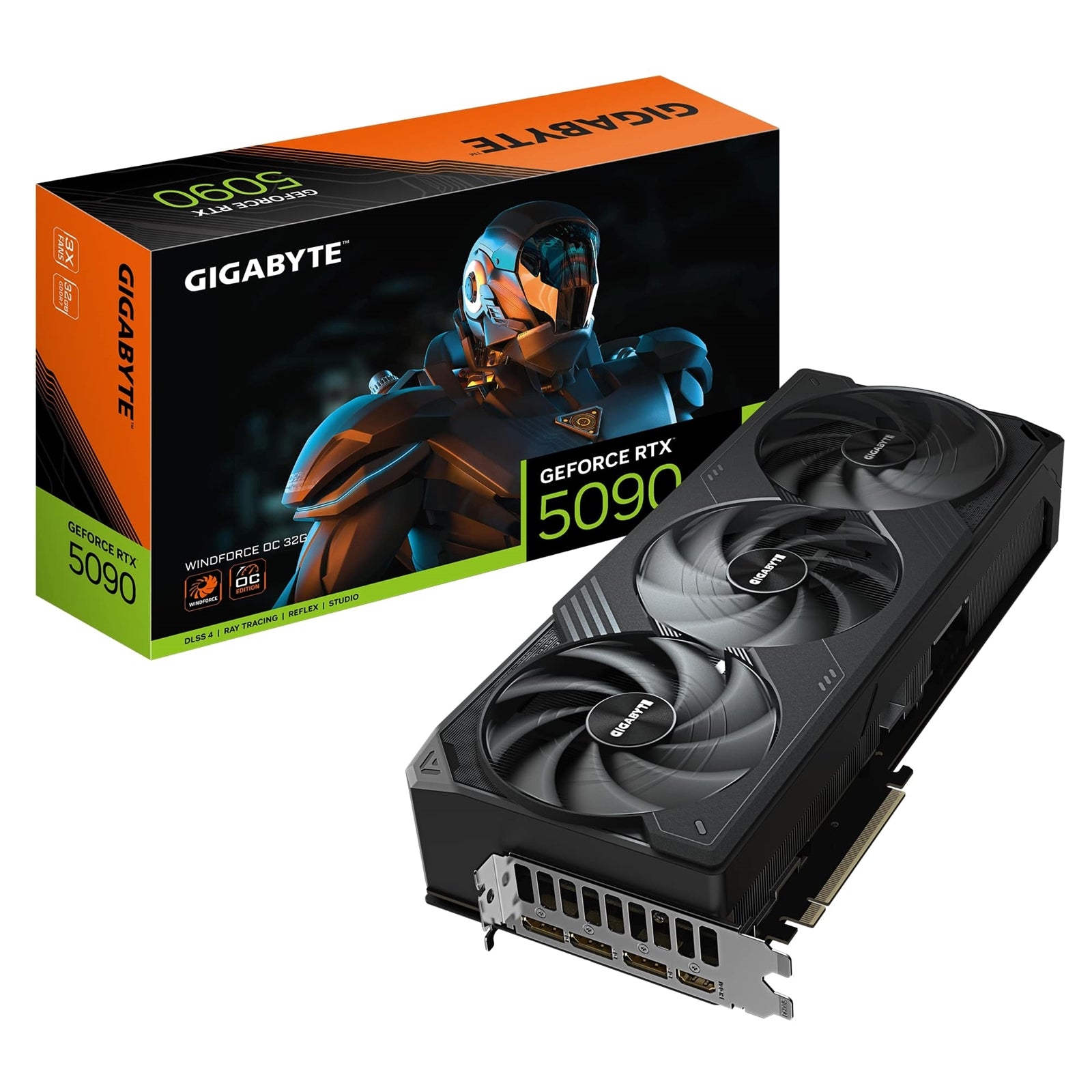

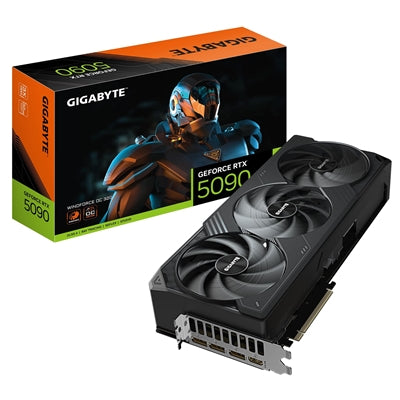

Gigabyte GeForce RTX 5090 WINDFORCE OC 32G Graphics Card

The Gigabyte GeForce RTX 5090 WINDFORCE OC 32G delivers flagship performance powered by NVIDIA's Blackwell architecture and DLSS 4 technology. With 32GB of GDDR7 memory across a 512-bit interface and 21760 CUDA Cores, this graphics card handles 8K gaming, professional 3D rendering, and AI workloads with exceptional capability.

Performance Specifications

Factory overclocked to 2467 MHz (60MHz above reference), the RTX 5090 WINDFORCE OC provides immediate performance gains out of the box. The 28 Gbps memory clock and massive 32GB GDDR7 memory capacity ensure smooth operation even with the most demanding textures and datasets. Supporting resolutions up to 7680x4320 across four simultaneous displays, this card adapts to multi-monitor professional workflows and immersive gaming setups.

WINDFORCE Cooling System

The triple-fan WINDFORCE cooling system features Hawk fan technology designed for optimal airflow and reduced noise. Server-grade thermal conductive gel ensures efficient heat transfer from the GPU to the heatsink. The dual BIOS switch allows instant switching between Performance and Silent modes, adapting to your priority whether maximum frame rates or quiet operation matters most.

Build Quality and Design

Measuring 342mm x 150mm x 65mm, the reinforced structure prevents PCB flex and protects components during installation and transport. The included versatile VGA holder provides additional support to prevent GPU sag in your case. The ATX form factor fits standard PC builds while the PCI-E 5.0 interface ensures compatibility with current motherboards and future-proof bandwidth.

Connectivity and Power

Three DisplayPort 2.1a outputs and one HDMI 2.1b port deliver cutting-edge display connectivity with support for the latest high-refresh 4K and 8K monitors. DirectX 12 API and OpenGL 4.6 compatibility ensure broad software support. The single 16-pin power connector requires a 1000W PSU, with a 12V-2x6 to 4x PCIe 8-pin adapter included for compatibility with existing power supplies.

Professional Applications

Beyond gaming, the RTX 5090's CUDA core count and memory capacity accelerate video editing timelines, 3D viewport performance, and AI model training. The Blackwell architecture introduces efficiency improvements for ray tracing workloads, making real-time path tracing more accessible for content creators and developers.

GeForce RTX 5090 WINDFORCE OC 32G

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5090
Integrated with 32GB GDDR7 512bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
Dual BIOS (Performance / Silent)
Reinforced structure
Versatile VGA holder

SPECIFICATION

Graphics Processing
GeForce RTX 5090

Core Clock
2467 MHz (Reference card : 2407MHz)

CUDA Cores
21760

Memory Clock
28 Gbps

Memory Size
32 GB

Memory Type
GDDR7

Memory Bus
512 bit

Card Bus
PCI-E 5.0

Digital Max Resolution
7680x4320

Multi-View
4

Card Size
L=342 W=150 H=65 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
1000W

Power Connectors
16 Pin x 1

Output
DisplayPort 2.1a x 3
HDMI 2.1b x 1

Accessories
Quick guide
1 x 12V-2x6 to 4 x PCIe 8pin adapter
Versatile VGA holder
Versatile VGA holder manual

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5090
• Form Factor: 2x ATX
• Memory: 32GB
• Fans: 3
• RGB: No
