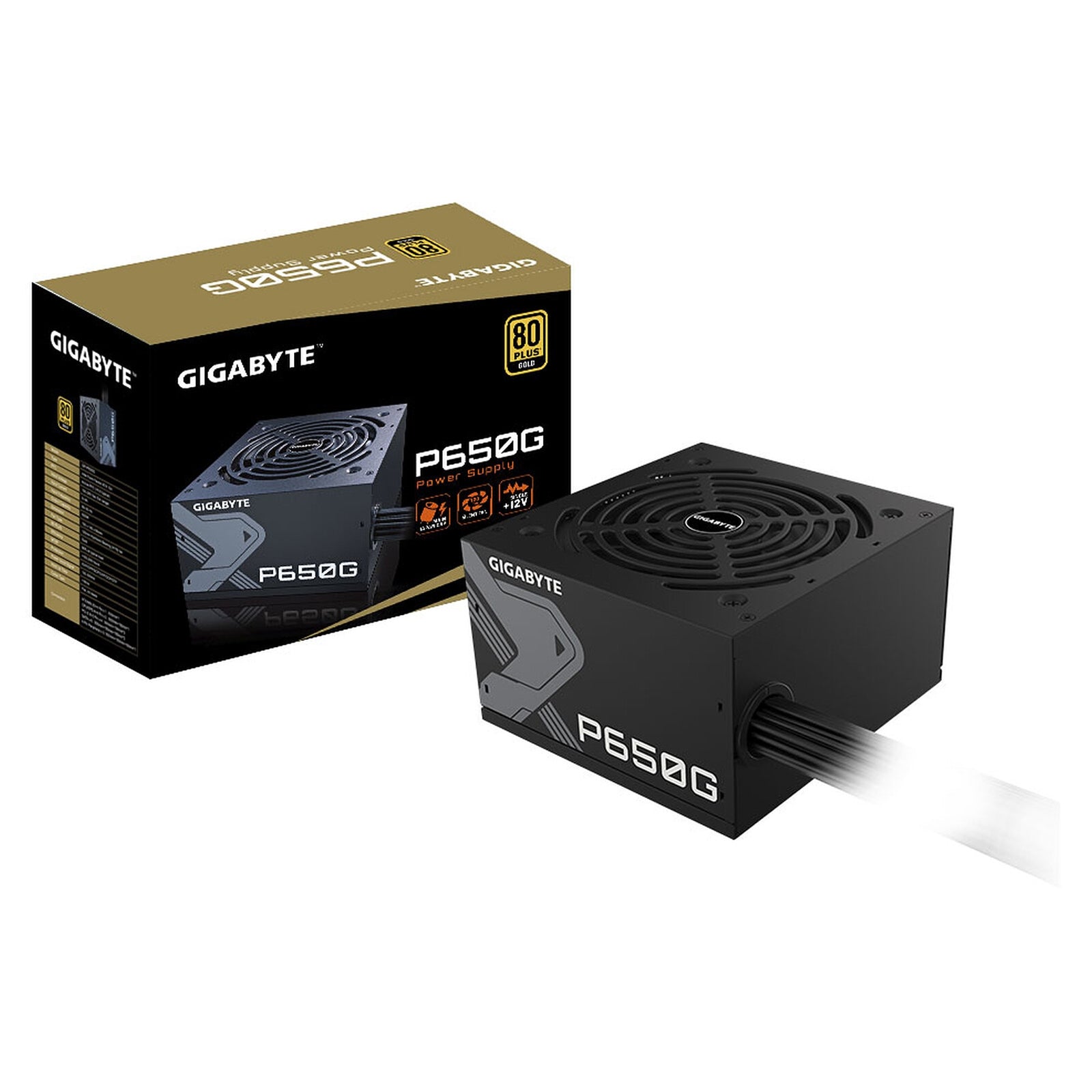

GIGABYTE P650G 650W Power Supply Unit

The GIGABYTE GP-P650G delivers reliable 650W power output for gaming and workstation builds. This ATX form factor PSU features 80 PLUS Gold certification, achieving 90% efficiency at typical load to reduce electricity costs and heat generation.

Premium Japanese Capacitors for Extended Lifespan

Built with 100% Japanese primary capacitors from top-tier manufacturers, this power supply provides stable voltage delivery and enhanced durability. These high-quality components ensure consistent performance and significantly extend the operational lifespan beyond standard PSU offerings.

Silent 120mm Hydraulic Bearing Fan

The 120mm Hydraulic Bearing (HYB) fan actively monitors power utilization and temperature, automatically adjusting rotation speed to minimize acoustic output. Hydraulic bearing technology offers superior longevity and quieter operation compared to traditional sleeve bearing fans, with an MTBF exceeding 100,000 hours.

Single +12V Rail Design

The single +12V rail configuration delivers optimal power output and stability across all connected components. This design simplifies cable management, improves hardware compatibility, and provides the clean power delivery required for overclocking applications.

Comprehensive Protection Features

Six integrated protection mechanisms safeguard your system: Over Voltage Protection (OVP), Over Power Protection (OPP), Short Circuit Protection (SCP), Under Voltage Protection (UVP), Over Current Protection (OCP), and Over Temperature Protection (OTP). These features ensure stable operation under all conditions.

Black Flat Cable Design

Non-modular flat black cables reduce cable clutter and improve airflow within your chassis. The streamlined cable design enhances thermal performance while maintaining a clean aesthetic.

Compact ATX Form Factor

Measuring 150 x 140 x 86mm, this compact design fits standard ATX cases while leaving additional space for improved airflow. The reduced footprint facilitates easier installation without compromising power delivery.

Technical Specifications

Model: GP-P650G
Type: Intel Form Factor ATX 12V
PFC: Active PFC (>0.9 typical)
Input Voltage: 100-240 Vac (full range)
Input Current: 9-4A
Input Frequency: 60-50 Hz
Output Capacity: 650W
Dimension: 150 x 140 x 86 mm
Fan Type: 120mm Hydraulic Bearing (HYB) Fan
80 PLUS: Gold
Efficiency: 90% at typical load
MTBF: >100,000 hours
Protection: OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal: 100-500ms
Hold Up Time: >16ms
Cable Type: Flat, All black

Connector Configuration

Connectors:
ATX/MB 20+4 Pin x 1: 600mm*1
CPU/EPS 4+4 Pin x 2: 600mm+150mm*1
PCI-e 6+2 Pin x 4: 500mm+150mm*2
SATA x 6: 500mm+150mm+150mm*2
4 Pin Peripheral x 3: 500mm+150mm+150mm*1

• Wattage: 650W
• Size/Version: ATX
• Modular: No
• SATA Connections: 6
• Certification: Gold
• Colour: Black
