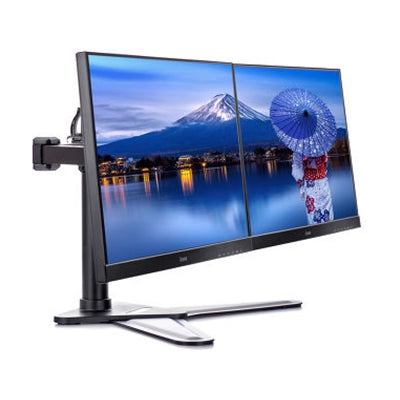

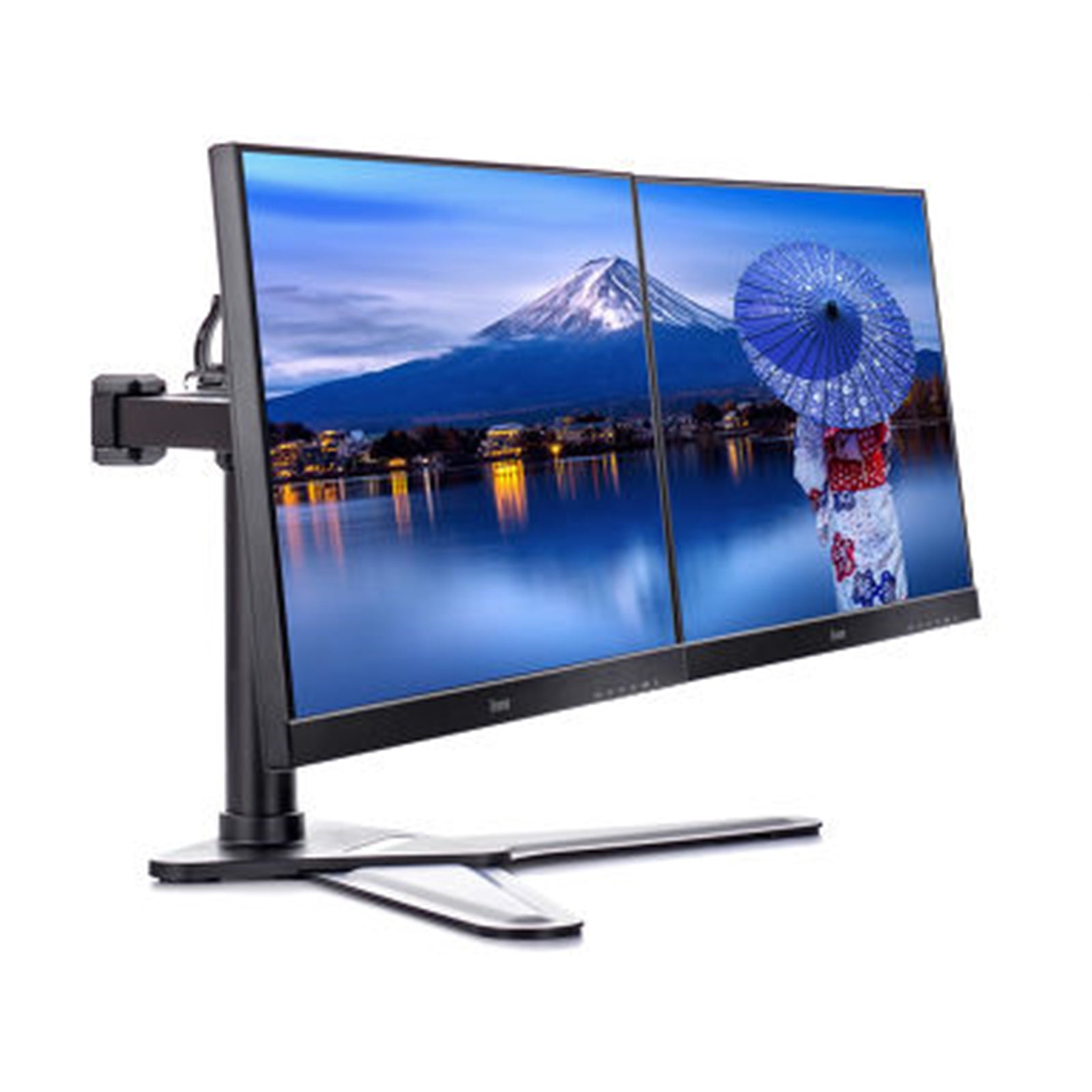

iiyama DS1002D-B1 Dual Monitor Desk Stand

The iiyama DS1002D-B1 is a desk stand designed for two flat screens up to 30". This monitor arm consolidates your dual display setup into a single mounting point, freeing up valuable desk space while the integrated cable management system keeps cables organized and out of sight.

Adjustable Positioning for Dual Screens

This desk stand offers comprehensive adjustment capabilities across multiple axes. The height adjustment ranges from 200mm to 340mm, allowing you to position your monitors at the optimal viewing level. Each screen can rotate 90° for portrait orientation (PIVOT), tilt between -85° and 15°, and swivel 180° horizontally. This range of motion ensures you can configure both monitors to match your specific workspace requirements and viewing preferences.

Technical Specifications

The DS1002D-B1 accommodates screens from 10" to 30" with VESA mounting patterns of 75x75mm or 100x100mm. Each arm supports monitors up to 10kg in weight. The desk mount base (dstand) provides stable support for dual monitor configurations without requiring wall installation.

Space-Efficient Design

By replacing two individual monitor stands with a single desk-mounted arm system, the DS1002D-B1 reduces desktop clutter and creates additional workspace. The cable management features route monitor cables through the arm structure, maintaining a clean appearance and preventing cable tangling between the two displays.

Key Features

• Dual Monitor Capacity: Supports 2 screens simultaneously
• Screen Compatibility: 10" - 30" displays
• Weight Capacity: 10kg per monitor arm
• Height Range: 200mm - 340mm adjustment
• VESA Compatibility: 75x75mm and 100x100mm mounting patterns
• Rotation: 90° PIVOT for portrait mode
• Tilt Range: -85° to 15°
• Swivel Range: 180° horizontal rotation
• Mounting Type: Desk stand (dstand)
• Cable Management: Integrated routing system

Installation and Setup

The DS1002D-B1 features straightforward installation with desk mounting hardware. The stand is designed for quick setup, allowing you to attach both monitors and begin adjusting their positions without complex assembly procedures.

DS1002D-B1 - Comfortable dual monitor arm stand
The iiyama DS1002D-B1 is a desk stand for two flat screens up to 30". The monitor arm allows you to save space on your desk reducing the number of stands to one only and the cable management system makes it easier to keep your workplace tidy. The easy to set-up stand offers broad adjustment capabilities, including tilt, swivel, height and rotation, so you can easily adjust the position of both screens to your preferences assuring comfortable and healthy body posture.

Features
Type - desk stand for desktop monitor
Number of screens - 2
Desk mount - dstand
Screen size - 10'' - 30''
Height adjustment - 200 - 340mm
Screen rotation - PIVOT 90°
Tilt - -85° - 15°
Swivel - 180°
Max weight capacity - 10kg / monitor
VESA minimum - 75 x 75mm
VESA maximum - 100 x 100mm

• Max Size Screen (in): 30
• Swivel: Yes
• Tilt: Yes
