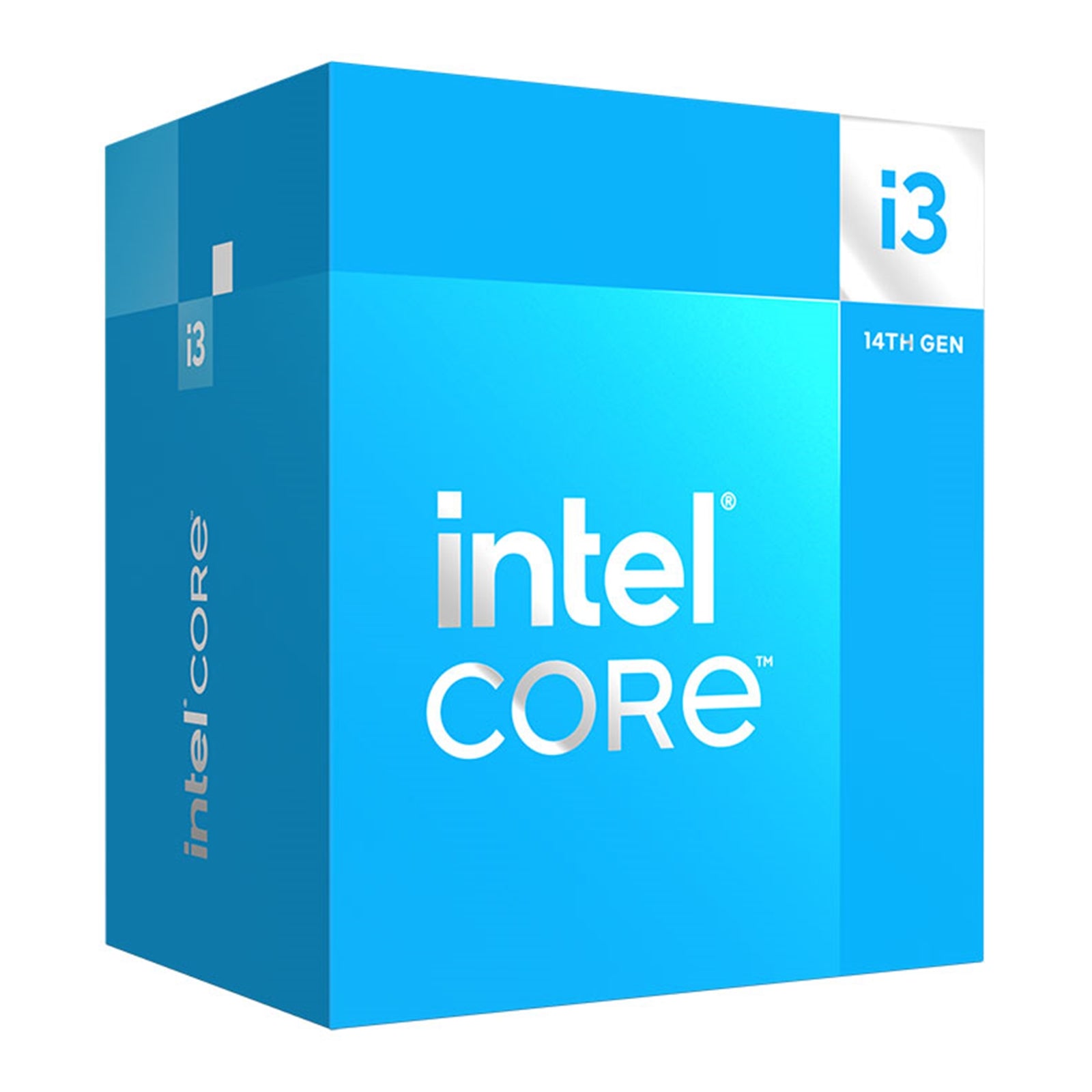

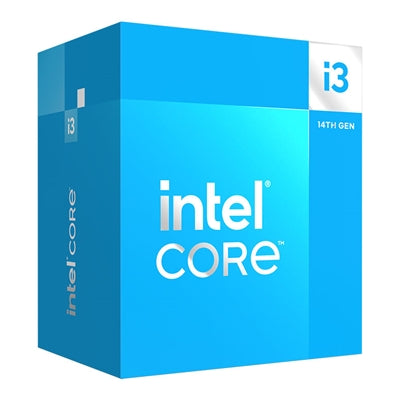

Intel Core i3-14100 Desktop Processor - 14th Generation Raptor Lake Refresh

The Intel Core i3-14100 delivers reliable performance for everyday computing and entry-level gaming. Built on Intel's 14th Generation Raptor Lake Refresh architecture using Intel 7 lithography, this quad-core processor offers 8 threads with a base frequency of 3.5GHz and turbo speeds up to 4.7GHz.

Performance Specifications

Featuring 4 performance cores and 12MB of Intel Smart Cache with an additional 5MB L2 cache, the i3-14100 handles multitasking efficiently. The processor operates at a base power of 60W with a maximum turbo power of 110W, making it energy-efficient for standard desktop builds. Intel Thread Director technology ensures background tasks don't interfere with your primary applications.

Memory and Connectivity

This LGA 1700 socket processor supports both DDR5 memory up to 4800 MT/s and DDR4 up to 3200 MT/s, offering flexibility for budget-conscious builds or future-proof configurations. With dual-channel memory support and a maximum bandwidth of 76.8 GB/s, you can configure up to 192GB of system memory. The processor includes 20 PCIe lanes with support for PCIe 5.0 and 4.0, enabling high-speed storage and graphics card connectivity.

Integrated Graphics

The Intel UHD Graphics 730 with 24 execution units runs at up to 1.5GHz, supporting DirectX 12, OpenGL 4.5, and OpenCL 3.0. Display outputs include HDMI 2.1 (4096x2160 @60Hz), DisplayPort 1.4a (7680x4320 @60Hz), and eDP 1.4b, with support for up to 4 simultaneous displays. Intel Quick Sync Video and Clear Video HD Technology provide hardware-accelerated media encoding and playback.

Security and Virtualization

Security features include Intel AES New Instructions, Control-Flow Enforcement Technology, OS Guard, and Boot Guard. Virtualization technologies (VT-x, VT-d, EPT) enable efficient virtual machine performance. The processor includes Intel Standard Manageability for enterprise environments.

Technical Details

Operating at a maximum junction temperature of 100°C, the processor measures 45.0mm x 37.5mm. DMI 4.0 with 8 lanes provides high-bandwidth chipset connectivity. Launched in Q1 2024, the i3-14100 is compatible with WiFi 7 ready motherboards for next-generation wireless connectivity.

GAME WITHOUT COMPROMISE
Go beyond performance with the latest 14th Generation Intel Core processors, based on the Raptor-Lake Refresh Architecture with a hybrid-design incorporating a mixture of high performance P-Cores and efficient E-Cores. The i3-14100 comes in with up to 4 cores and up to 8 threads. Capable of reaching maximum clock speeds of 4.7GHz and providing incredible versatility with support for PCIe 5.0 components, DDR4 and DDR5 memory and All-New Wifi 7 connectivity. Be your Best with Intel.

REVOLUTIONARY PERFORMANCE AND MULTITASKING
Newly optimised hybrid architecture and industry-leading technology enable you to go beyond gaming and creation. From progressing in-game to advancing in real life, Intel empowers you to be your best self.?

4 PERFORMANCE CORES
unleashes the capability to optimise the latest games and gaming software.

INTEL THREAD DIRECTOR
Keeps your gaming free of interruptions by making sure your background tasks never slow you down.


Specifications

Essentials
Product Collection:
Intel Core i3 Processors (14th gen)

Vertical Segment:
Desktop

Processor Number:
i3-14100

Lithography:
Intel 7

Use Conditions:
PC/Client/Tablet

CPU Specifications

Total Cores:
4

# of Performance-cores:
4

# of Efficient-cores:
0

Total Threads:
8

Max Turbo Frequency:
4.7 GHz

Performance-core Max Turbo Frequency:
4.7 GHz

Performance-core Base Frequency:
3.5 GHz

Cache: 12 MB Intel Smart Cache
Total L2 Cache:
5 MB

Processor Base Power:
60 W

Maximum Turbo Power:
110W

Supplemental Information

Marketing Status:
Launched

Launch Date:
Q1'24

Embedded Options Available:
Yes

Memory Specifications

Max Memory Size (dependent on memory type):
192 GB

Memory Types:
Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s

Max # of Memory Channels:
2

Max Memory Bandwidth:
76.8 GB/s

GPU Specifications

GPU Name‡:
Intel UHD Graphics 730

Graphics Max Dynamic Frequency:
1.5 GHz

Graphics Output:
eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units:
24

Max Resolution (HDMI):
4096 x 2160 @ 60Hz

Max Resolution (DP):
7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel):
5120 x 3200 @ 120Hz

DirectX Support:
12

OpenGL Support:
4.5

OpenCL Support:
3.0

Multi-Format Codec Engines:
1

Intel Quick Sync Video:
Yes

Intel Clear Video HD Technology:
Yes

# of Displays Supported:
4

Device ID:
0x4692

Expansion Options

Direct Media Interface (DMI) Revision:
4.0

Max # of DMI Lanes:
8

Scalability:
1S Only

PCI Express Revision:
5.0 and 4.0

PCI Express Configurations
: Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes:
20

Package Specifications
TJUNCTION:
100°C

Package Size:
45.0 mm x 37.5 mm


Security & Reliability
Intel Standard Manageability (ISM):
Yes

Intel Control-Flow Enforcement Technology:
Yes

Intel AES New Instructions:
Yes

Secure Key:
Yes

Intel OS Guard:
Yes

Execute Disable Bit:
Yes

Intel Boot Guard:
Yes

Mode-based Execute Control (MBEC):
Yes

Intel Virtualization Technology (VT-x):
Yes

Intel Virtualization Technology for Directed I/O (VT-d):
Yes

Intel VT-x with Extended Page Tables (EPT):
Yes

• Socket: 1700
• On-Chip Graphics: Yes
• Speed: 3.5GHz
• Core Quantity: 4
• Prefix: Core i3
