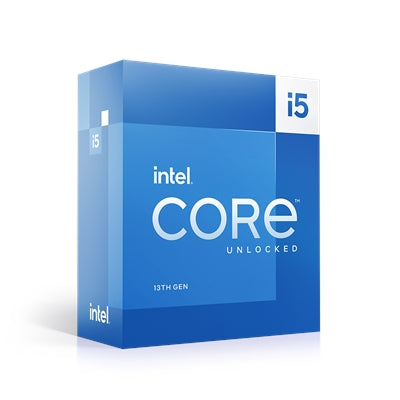

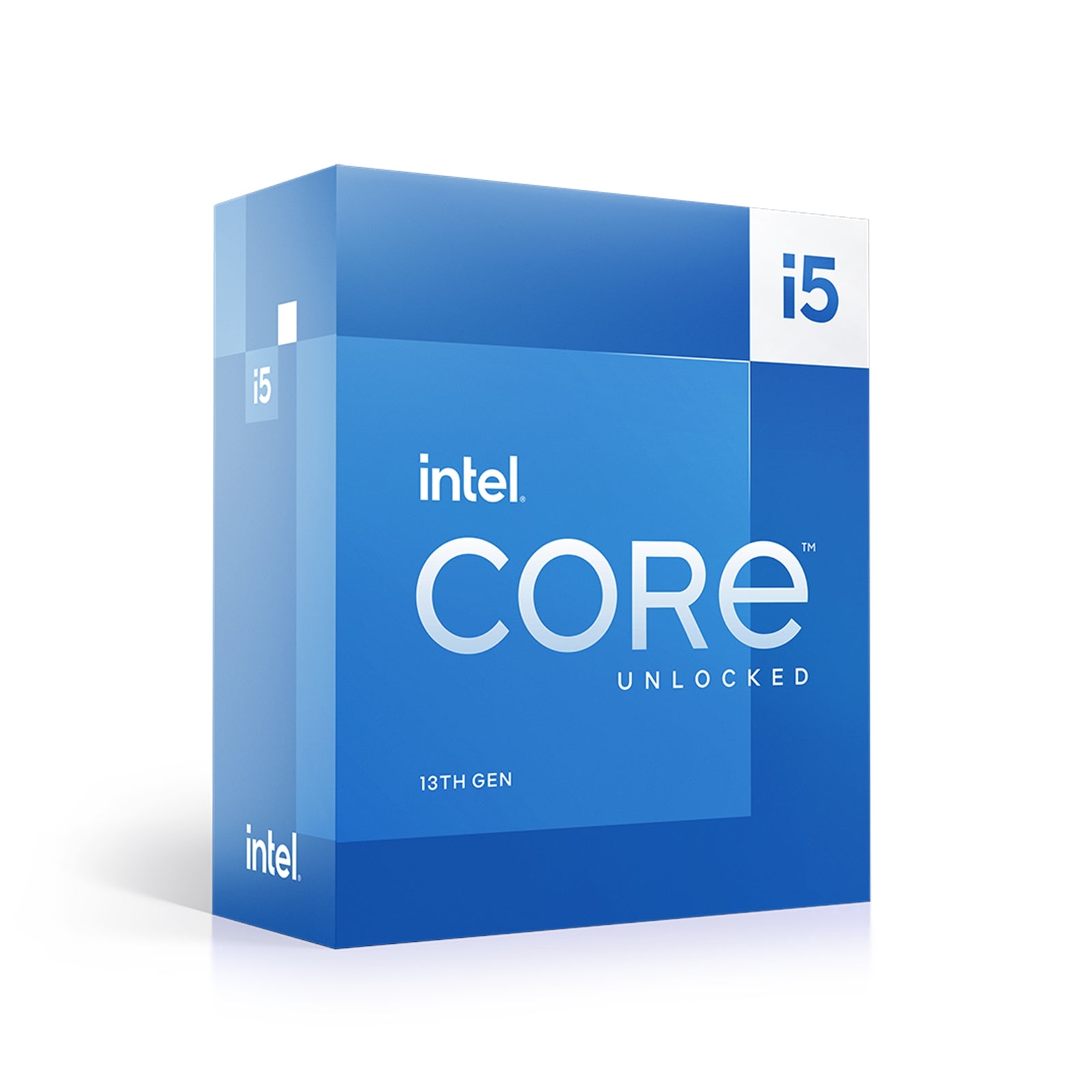

Intel Core i5-13400 Desktop Processor - 13th Gen Raptor Lake

The Intel Core i5-13400 delivers exceptional performance for gaming, content creation, and multitasking with its advanced 13th generation Raptor Lake architecture. Featuring 10 cores (6 Performance-cores and 4 Efficient-cores) with 16 threads, this processor handles demanding workloads while maintaining efficiency with its 65W base power.

Hybrid Architecture Performance

Built on Intel's performance hybrid architecture, the i5-13400 combines Performance-cores optimized for single-threaded tasks with Efficient-cores designed for background operations. Performance-cores boost up to 4.6GHz from a 2.5GHz base, while Efficient-cores operate between 1.8GHz and 3.3GHz. Intel Thread Director intelligently routes workloads to the appropriate cores, maximizing efficiency across gaming, streaming, and productivity applications.

Gaming and Content Creation Ready

The i5-13400 handles modern gaming titles, simultaneous streaming, and content editing without compromise. The 20MB Intel Smart Cache and 9.5MB L2 cache ensure rapid data access, while support for DDR5-5600 and DDR4-3200 memory provides flexibility for system builds. PCIe 5.0 support future-proofs your platform for next-generation graphics cards and storage devices.

Integrated Graphics Capabilities

Intel UHD Graphics 730 integrated graphics deliver reliable performance for display output and light workloads. Supporting up to three displays simultaneously via HDMI 2.1, DisplayPort 1.4a, and eDP 1.4b, the graphics engine handles resolutions up to 7680x4320 at 60Hz through DisplayPort. DirectX 12, OpenGL 4.5, and OpenCL 3.0 support ensure compatibility with modern applications.

Socket LGA 1700 Platform

Compatible with LGA 1700 motherboards using Intel 600 and 700 series chipsets, the i5-13400 supports up to 128GB of memory across two channels with 89.6 GB/s maximum bandwidth. ECC memory support adds reliability for workstation builds. Maximum Turbo Power reaches 148W under sustained loads, requiring appropriate cooling solutions for optimal performance.

Technical Specifications

Total Cores: 10
# of Performance-cores: 6
# of Efficient-cores: 4
Total Threads: 16
Max Turbo Frequency: 4.60 GHz
Performance-core Max Turbo Frequency: 4.60 GHz
Efficient-core Max Turbo Frequency: 3.30 GHz
Performance-core Base Frequency: 2.50 GHz
Efficient-core Base Frequency: 1.80 GHz
Cache: 20 MB Intel Smart Cache
Total L2 Cache: 9.5 MB
Processor Base Power: 65 W
Maximum Turbo Power: 148 W
Max Memory Size: 128 GB
Memory Types: DDR5-5600 / DDR4-3200
Max # of Memory Channels: 2
Max Memory Bandwidth: 89.6 GB/s
ECC Memory Supported: Yes
Processor Graphics: Intel UHD Graphics 730
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 1.65 GHz
Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
Max Resolution (HDMI): 4096 x 2160 @ 60Hz
Max Resolution (DP): 7680 x 4320 @ 60Hz
Max Resolution (eDP): 5120 x 3200 @ 120Hz
DirectX Support: 12
OpenGL Support: 4.5
OpenCL Support: 3.0

• Socket: 1700
• On-Chip Graphics: Yes
• Speed: 2.5GHz
• Core Quantity: 10
• Prefix: Core i5
