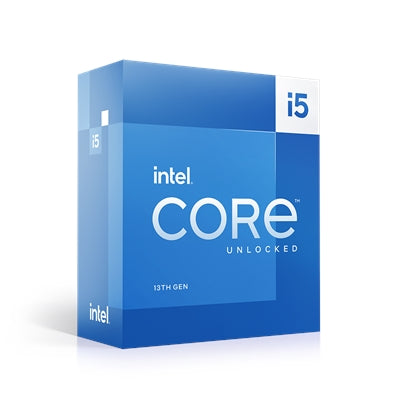

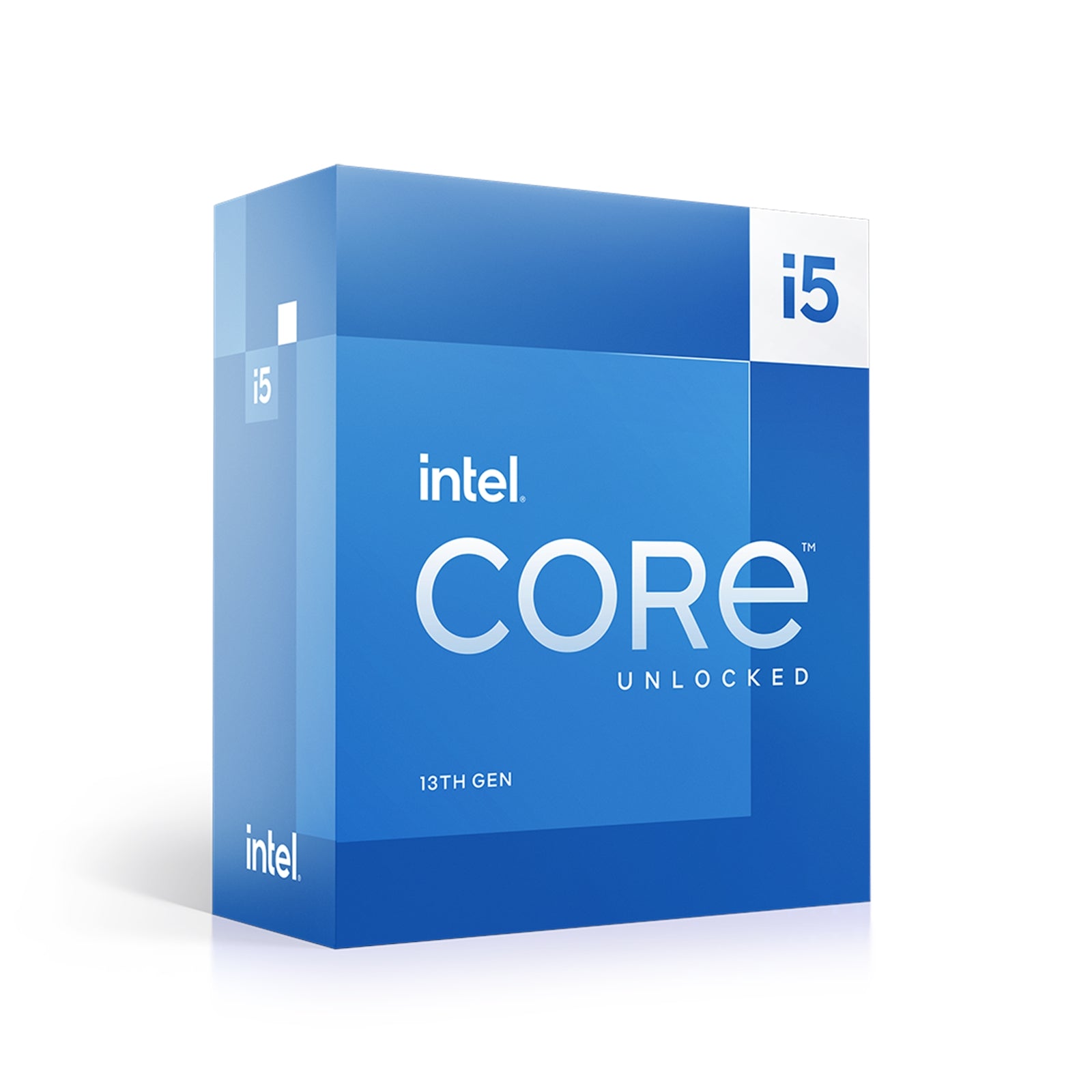

Intel Core i5-13500 Desktop Processor - 13th Gen Raptor Lake

The Intel Core i5-13500 delivers 13th generation performance with 14 cores and 20 threads for gaming, content creation, and multitasking. This LGA 1700 processor features 6 Performance-cores running up to 4.8GHz and 8 Efficient-cores, providing the processing power needed for modern workloads.

Performance Hybrid Architecture

Built on Intel's Raptor Lake architecture, the i5-13500 combines Performance-cores optimized for single-threaded tasks with Efficient-cores designed for background processes. Intel Thread Director intelligently routes workloads to the appropriate cores, ensuring optimal performance across gaming, streaming, and productivity applications.

Key Specifications

• 14 Cores (6 P-cores + 8 E-cores) and 20 Threads
• Base Clock: 2.5GHz | Max Turbo: 4.8GHz
• 24MB Intel Smart Cache + 11.5MB L2 Cache
• 65W Base Power | 154W Maximum Turbo Power
• Integrated Intel UHD Graphics 770
• DDR5-5600 and DDR4-3200 Memory Support
• PCIe 5.0 and PCIe 4.0 Compatibility

Gaming and Content Creation

The i5-13500 handles modern gaming titles while simultaneously streaming and recording. The Performance-cores tackle game engines and single-threaded workloads, while Efficient-cores manage background tasks like Discord, browser tabs, and system processes without impacting frame rates.

Graphics and Display Support

Intel UHD Graphics 770 provides integrated graphics capability with support for up to three displays. Output options include HDMI 2.1 (4096x2160 @ 60Hz), DisplayPort 1.4a (7680x4320 @ 60Hz), and eDP 1.4b. DirectX 12, OpenGL 4.5, and OpenCL 3.0 support ensure compatibility with modern applications.

Memory and Platform Features

Support for both DDR5-5600 and DDR4-3200 memory provides flexibility for system builds. The dual-channel memory controller supports up to 128GB with 89.6 GB/s maximum bandwidth. ECC memory support adds reliability for workstation applications.

Compatibility

Requires an LGA 1700 socket motherboard with Intel 600 or 700 series chipset. Compatible with Windows 11 for full Intel Thread Director functionality. PCIe 5.0 support enables next-generation storage and graphics card compatibility.

Frequently Asked Questions

What are Performance-cores and Efficient-cores?

Performance-cores (P-cores):
- Are optimized to handle single and lightly threaded performance.
- Enhance gaming and productivity workload.

Efficient-cores (E-cores):
- Are optimized to handle scaling highly threaded workloads.
- Minimize interruptions from background task management.

What is Intel Thread Director?
Intel Thread Director sends the right workload to the right core at the right time. It helps prioritize and manage the distribution of workloads, sending tasks to the most optimized thread. This feature is on by default and works in tandem with the operating system for intelligent workload distribution. To get the full capabilities of Intel Thread Director, pair a select 13th Gen Intel Core desktop processor with Windows 11.

Specifications

Total Cores
14

# of Performance-cores
6

# of Efficient-cores
8

Total Threads
20

Max Turbo Frequency
4.80 GHz

Performance-core Max Turbo Frequency
4.80 GHz

Efficient-core Max Turbo Frequency
3.50 GHz

Performance-core Base Frequency
2.50 GHz

Efficient-core Base Frequency
1.80 GHz

Cache
24 MB Intel Smart Cache

Total L2 Cache
11.5 MB

Processor Base Power
65 W

Maximum Turbo Power
154 W

Max Memory Size (dependent on memory type)
128 GB

Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s

Max # of Memory Channels
2

Max Memory Bandwidth
89.6 GB/s

ECC Memory Supported
Yes

Processor Graphics
Intel UHD Graphics 770

Graphics Base Frequency
300 MHz

Graphics Max Dynamic Frequency
1.65 GHz

Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1

Max Resolution (HDMI)
4096 x 2160 @ 60Hz

Max Resolution (DP)
7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)
5120 x 3200 @ 120Hz

DirectX Support
12

OpenGL Support
4.5

OpenCL Support
3.0

• Socket: 1700
• On-Chip Graphics: Yes
• Speed: 2.5GHz
• Core Quantity: 16
• Prefix: Core i5
