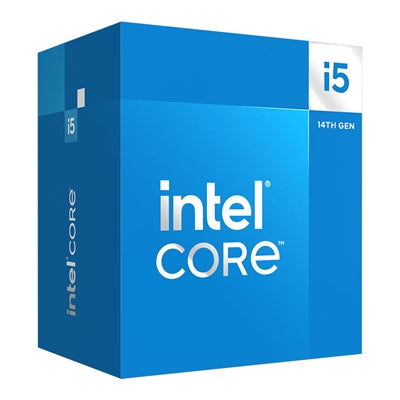

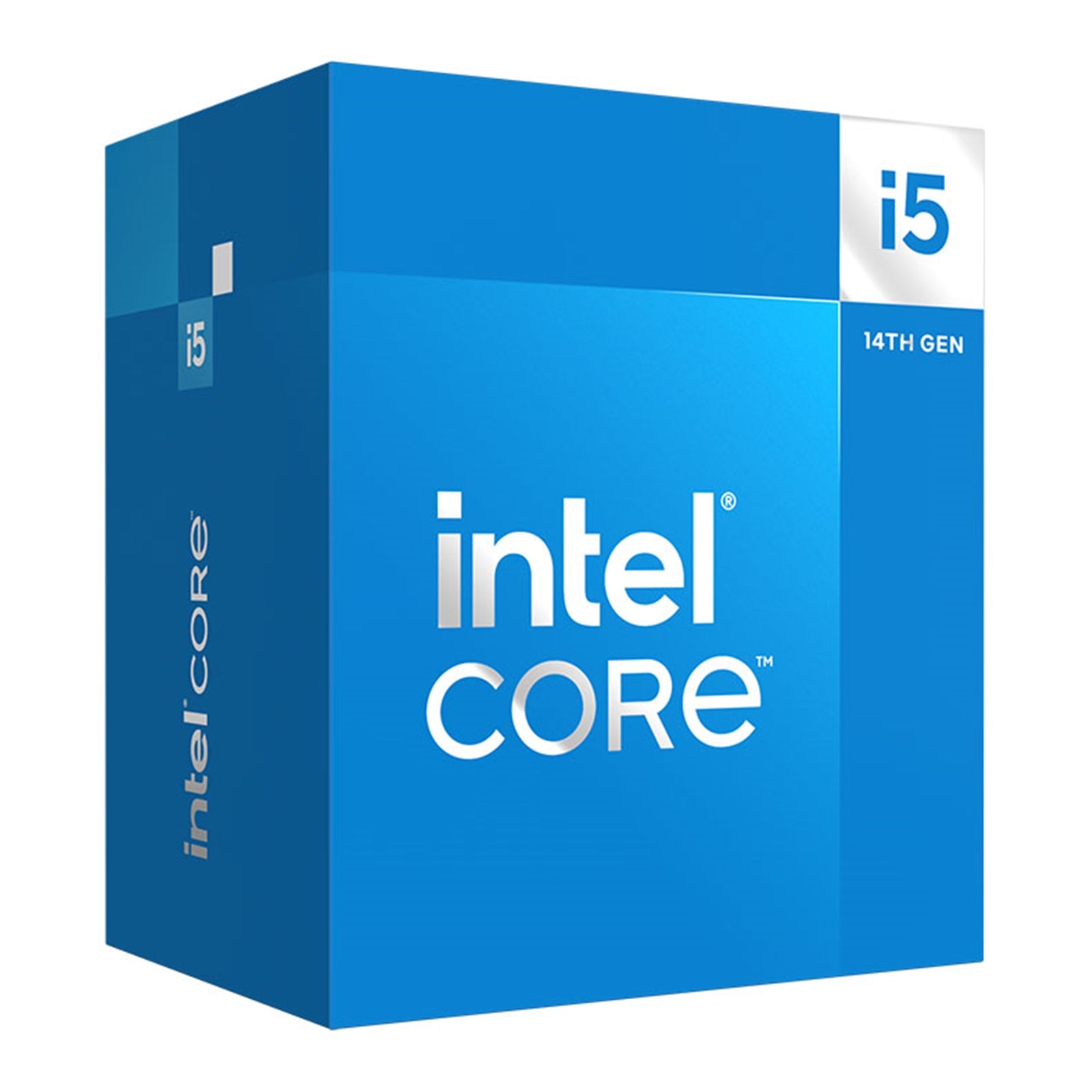

Intel Core i5-14400 Desktop Processor

The Intel Core i5-14400 delivers 14th Generation performance with 10 cores (6 Performance-cores and 4 Efficient-cores) and 16 threads. Built on the Raptor Lake Refresh architecture using Intel 7 lithography, this LGA 1700 processor reaches turbo frequencies up to 4.7GHz while maintaining a 65W base power envelope.

Hybrid Architecture Performance

The i5-14400 features Intel's hybrid core design: 6 Performance-cores handle demanding gaming and intensive applications with a max turbo frequency of 4.7GHz and base frequency of 2.5GHz, while 4 Efficient-cores manage background tasks and multitasking workloads at up to 3.5GHz turbo frequency. This architecture delivers 20MB Intel Smart Cache and 9.5MB L2 cache for responsive performance across gaming, content creation, and productivity tasks.

Memory and Connectivity

Support for both DDR5-4800 and DDR4-3200 memory provides flexibility for system builds, with up to 192GB maximum memory capacity across 2 channels. The processor includes 20 PCI Express lanes with PCIe 5.0 and 4.0 support, enabling high-speed storage and graphics card connectivity. Configurations support up to 1x16+4 or 2x8+4 lane arrangements.

Integrated Graphics

Intel UHD Graphics 730 with 24 execution units operates at up to 1.55GHz, supporting 4 simultaneous displays. Output options include HDMI 2.1 (4096x2160 @60Hz), DisplayPort 1.4a (7680x4320 @60Hz), and eDP 1.4b. Hardware acceleration includes Intel Quick Sync Video, DirectX 12, OpenGL 4.5, and OpenCL 3.0 support with multi-format codec engines.

Advanced Technologies

Intel Thread Director optimizes workload distribution across P-cores and E-cores. Intel Gaussian & Neural Accelerator 3.0 accelerates AI workloads, while Intel Deep Learning Boost enhances machine learning performance. Intel Turbo Boost Technology 2.0 and Hyper-Threading Technology maximize responsiveness under load. The processor supports Intel Virtualization Technology (VT-x and VT-d) for virtualized environments.

Technical Specifications

• Socket: FCLGA1700
• Total Cores/Threads: 10 cores / 16 threads
• Base Power: 65W (Maximum Turbo Power: 148W)
• Cache: 20MB Intel Smart Cache, 9.5MB L2 Cache
• Max Memory Bandwidth: 76.8 GB/s
• TJUNCTION: 100°C
• Package Size: 45.0mm x 37.5mm

Security Features

Intel AES New Instructions, Intel Boot Guard, Control-Flow Enforcement Technology, and OS Guard provide hardware-level security. Execute Disable Bit and Mode-based Execute Control (MBEC) protect against malicious code execution.

GAME WITHOUT COMPROMISE
Go beyond performance with the latest 14th Generation Intel Core processors, based on the Raptor-Lake Refresh Architecture with a hybrid-design incorporating a mixture of high performance P-Cores and efficient E-Cores. The i5-14400 comes in with up to 10 cores (6 Performance and 4 Efficient Cores) and up to 16 threads. Capable of reaching maximum clock speeds of 4.7GHz and providing incredible versatility with support for PCIe 5.0 components, DDR4 and DDR5 memory and All-New Wifi 7 connectivity. Be your Best with Intel.

REVOLUTIONARY PERFORMANCE AND MULTITASKING
Newly optimised hybrid architecture and industry-leading technology enable you to go beyond gaming and creation. From progressing in-game to advancing in real life, Intel empowers you to be your best self.

6 PERFORMANCE CORES
unleashes the capability to optimise the latest games and gaming software.

4 EFFICIENT CORES
Provides multi-tasking power to work, create and play together.


Specifications

Essentials

Product Collection:
Intel Core i5 Processors (14th gen)

Code Name:
Products formerly Raptor Lake

Vertical Segment:
Desktop

Processor Number:
i5-14400

Lithography:
Intel 7

Use Conditions:
PC/Client/Tablet

CPU Specifications
Total Cores:
10

# of Performance-cores:
6

# of Efficient-cores:
4

Total Threads:
16

Max Turbo Frequency:
4.7 GHz

Performance-core Max Turbo Frequency:
4.7 GHz

Efficient-core Max Turbo Frequency:
3.5 GHz

Performance-core Base Frequency:
2.5 GHz

Efficient-core Base Frequency:
1.8 GHz

Cache:
20 MB Intel Smart Cache

Total L2 Cache:
9.5 MB

Processor Base Power:
65 W

Maximum Turbo Power:
148 W

Supplemental Information
Marketing Status:
Launched

Launch Date:
Q1'24

Embedded Options Available:
Yes

Memory Specifications
Max Memory Size (dependent on memory type):
192 GB

Memory Types:
Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s

Max # of Memory Channels:
2

Max Memory Bandwidth:
76.8 GB/s

GPU Specifications
GPU Name‡:
Intel UHD Graphics 730

Graphics Max Dynamic Frequency:
1.55 GHz

Graphics Output:
eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units:
24

Max Resolution (HDMI):
4096 x 2160 @ 60Hz

Max Resolution (DP):
7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡:
5120 x 3200 @ 120Hz

DirectX* Support:
12

OpenGL* Support:
4.5

OpenCL* Support:
3.0

Multi-Format Codec Engines:
1

Intel Quick Sync Video:
Yes

Intel Clear Video HD Technology:
Yes

# of Displays Supported:
4

Device ID:
0x4682/0xA782

Expansion Options
Direct Media Interface (DMI) Revision:
4.0

Max # of DMI Lanes:
8

Scalability:
1S Only

PCI Express Revision:
5.0 and 4.0

PCI Express Configurations:
Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes:
20

Package Specifications
Sockets Supported:
FCLGA1700

Max CPU Configuration:
1

Thermal Solution Specification:
PCG 2020C

TJUNCTION:
100°C

Package Size:
45.0 mm x 37.5 mm

Advanced Technologies
Intel Gaussian & Neural Accelerator:
3.0

Intel Thread Director:
Yes

Intel Deep Learning Boost (Intel DL Boost) on CPU:
Yes

Intel Speed Shift Technology:
Yes

Intel Turbo Boost Technology:
2.0

Intel Hyper-Threading Technology:
Yes

Intel 64 ‡:
Yes

Instruction Set:
64-bit

Instruction Set Extensions:
Intel SSE4.1, Intel SSE4.2, Intel AVX2

Idle States:
Yes

Enhanced Intel SpeedStep Technology:
Yes

Thermal Monitoring Technologies:
Yes

Intel Volume Management Device (VMD):
Yes

Security & Reliability
Intel Standard Manageability (ISM):
Yes

Intel Control-Flow Enforcement Technology:
Yes

Intel AES New Instructions:
Yes

Secure Key:
Yes

Intel OS Guard:
Yes

Execute Disable Bit:
Yes

Intel Boot Guard:
Yes

Mode-based Execute Control (MBEC):
Yes

Intel Virtualization Technology (VT-x):
Yes

Intel Virtualization Technology for Directed I/O (VT-d) ‡:
Yes

Intel VT-x with Extended Page Tables (EPT):
Yes

• Socket: 1700
• On-Chip Graphics: Yes
• Speed: 3.5GHz
• Core Quantity: 10
• Prefix: Core i5
