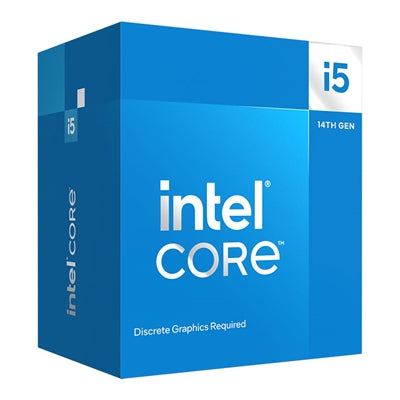

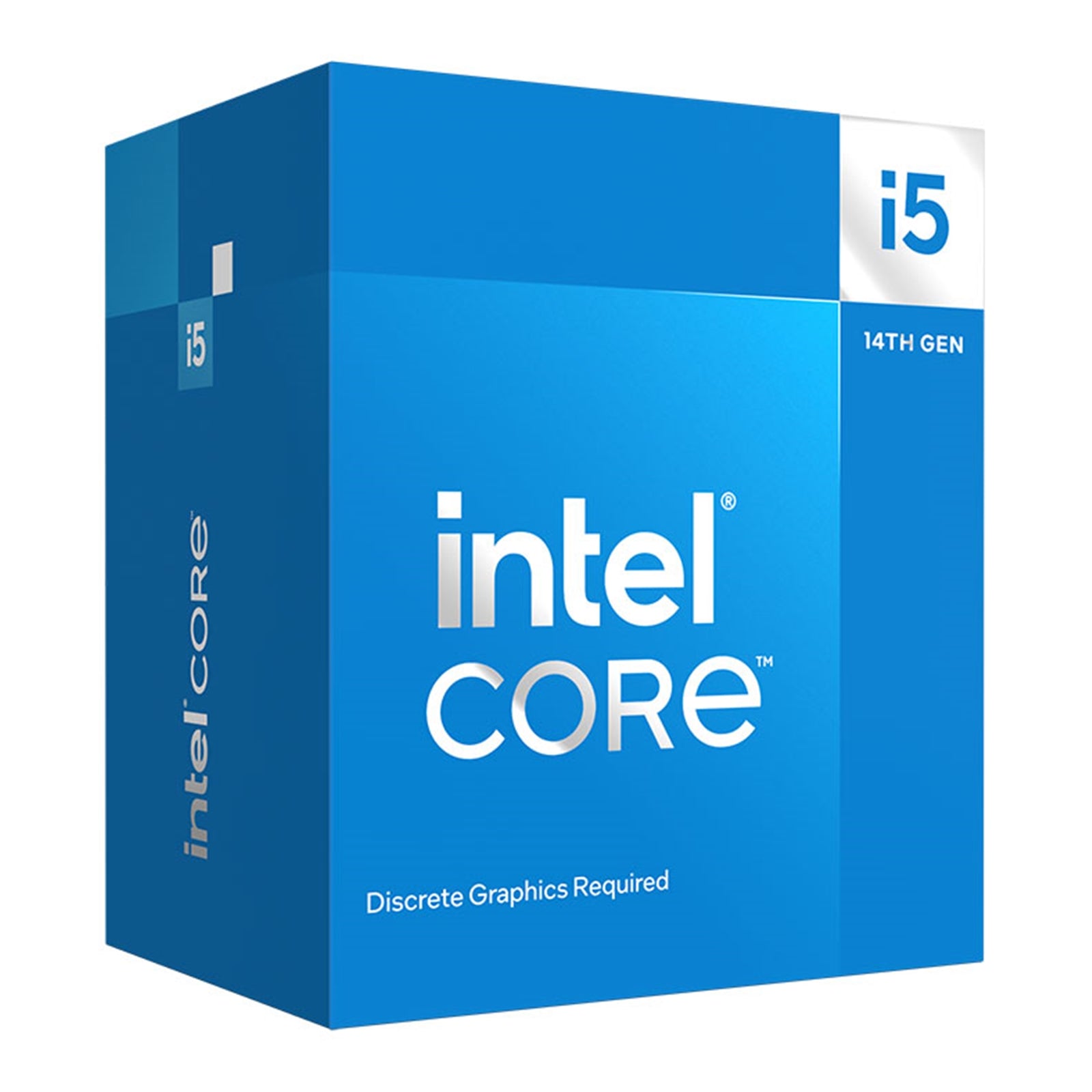

Intel Core i5-14400F 14th Generation Desktop Processor

The Intel Core i5-14400F delivers exceptional processing power for gaming and productivity workloads. Built on the Raptor Lake Refresh architecture, this 10-core processor combines 6 high-performance P-cores with 4 efficient E-cores to handle demanding applications and multitasking scenarios.

Core Performance Specifications

Operating at a base frequency of 2.5GHz on performance cores and 1.8GHz on efficient cores, the i5-14400F reaches maximum turbo speeds of 4.7GHz when needed. The processor features 20MB Intel Smart Cache and 9.5MB L2 cache, ensuring rapid data access for responsive performance. With 16 threads available through Intel Hyper-Threading Technology, this CPU handles concurrent workloads efficiently.

Power and Thermal Characteristics

Designed with a 65W processor base power rating, the i5-14400F operates efficiently while supporting a maximum turbo power of 148W for peak performance demands. The thermal junction temperature is rated at 100°C, compatible with PCG 2020C thermal solutions and the LGA1700 socket platform.

Memory and Connectivity

This processor supports both DDR5-4800 and DDR4-3200 memory configurations across 2 channels, accommodating up to 192GB total capacity with 76.8 GB/s maximum bandwidth. The platform includes 20 PCIe lanes supporting both PCIe 5.0 and 4.0 standards, configured as 1x16+4 or 2x8+4, providing flexibility for graphics cards and storage devices.

Advanced Technologies

The i5-14400F incorporates Intel Thread Director for intelligent workload optimization, Intel Gaussian & Neural Accelerator 3.0 for AI workloads, and Intel Deep Learning Boost on CPU. Intel Turbo Boost Technology 2.0 dynamically increases clock speeds, while Intel Speed Shift Technology ensures rapid frequency transitions. Security features include Intel AES New Instructions, Control-Flow Enforcement Technology, Intel Boot Guard, and comprehensive virtualization support through VT-x and VT-d.

Platform Compatibility

Compatible with FCLGA1700 motherboards, this processor requires a discrete graphics card as it does not include integrated graphics (F-series designation). The 45.0mm x 37.5mm package supports single-socket configurations and includes Intel Volume Management Device support for advanced storage management.

Specifications

Essentials
Product Collection:
Intel® Core™ i5 Processors (14th gen)

Code Name:
Products formerly Raptor Lake

Vertical Segment:
Desktop

Processor Number:
i5-14400F

Lithography:
Intel 7

Use Conditions:
PC/Client/Tablet

CPU Specifications
Total Cores:
10

# of Performance-cores:
6

# of Efficient-cores:
4

Total Threads:
16

Max Turbo Frequency:
4.7 GHz

Performance-core Max Turbo Frequency:
4.7 GHz

Efficient-core Max Turbo Frequency:
3.5 GHz

Performance-core Base Frequency:
2.5 GHz

Efficient-core Base Frequency:
1.8 GHz

Cache:
20 MB Intel® Smart Cache

Total L2 Cache:
9.5 MB

Processor Base Power:
65 W

Maximum Turbo Power:
148 W

Supplemental Information
Marketing Status:
Launched

Launch Date:
Q1'24

Embedded Options Available:
Yes

Memory Specifications
Max Memory Size (dependent on memory type):
192 GB

Memory Types:
Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s

Max # of Memory Channels:
2

Max Memory Bandwidth:
76.8 GB/s

Expansion Options
Direct Media Interface (DMI) Revision:
4.0

Max # of DMI Lanes:
8

Scalability:
1S Only

PCI Express Revision:
5.0 and 4.0

PCI Express Configurations:
Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes:
20

Package Specifications
Sockets Supported:
FCLGA1700

Max CPU Configuration:
1

Thermal Solution Specification:
PCG 2020C

TJUNCTION:
100°C

Package Size:
45.0 mm x 37.5 mm

Advanced Technologies
Intel® Gaussian & Neural Accelerator:
3.0

Intel® Thread Director:
Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU:
Yes

Intel® Speed Shift Technology:
Yes

Intel® Turbo Boost Technology:
2.0

Intel® Hyper-Threading Technology:
Yes

Intel® 64 ‡:
Yes

Instruction Set:
64-bit

Instruction Set Extensions:
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States:
Yes

Enhanced Intel SpeedStep® Technology:
Yes

Thermal Monitoring Technologies:
Yes

Intel® Volume Management Device (VMD):
Yes

Security & Reliability
Intel® Standard Manageability (ISM):
Yes

Intel® Control-Flow Enforcement Technology:
Yes

Intel® AES New Instructions:
Yes

Secure Key:
Yes

Intel® OS Guard:
Yes

Execute Disable Bit:
Yes

Intel® Boot Guard:
Yes

Mode-based Execute Control (MBEC):
Yes

Intel® Virtualization Technology (VT-x):
Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡:
Yes

Intel® VT-x with Extended Page Tables (EPT):
Yes

• Socket: 1700
• On-Chip Graphics: No
• Speed: 3.5GHz
• Core Quantity: 10
• Prefix: Core i5
