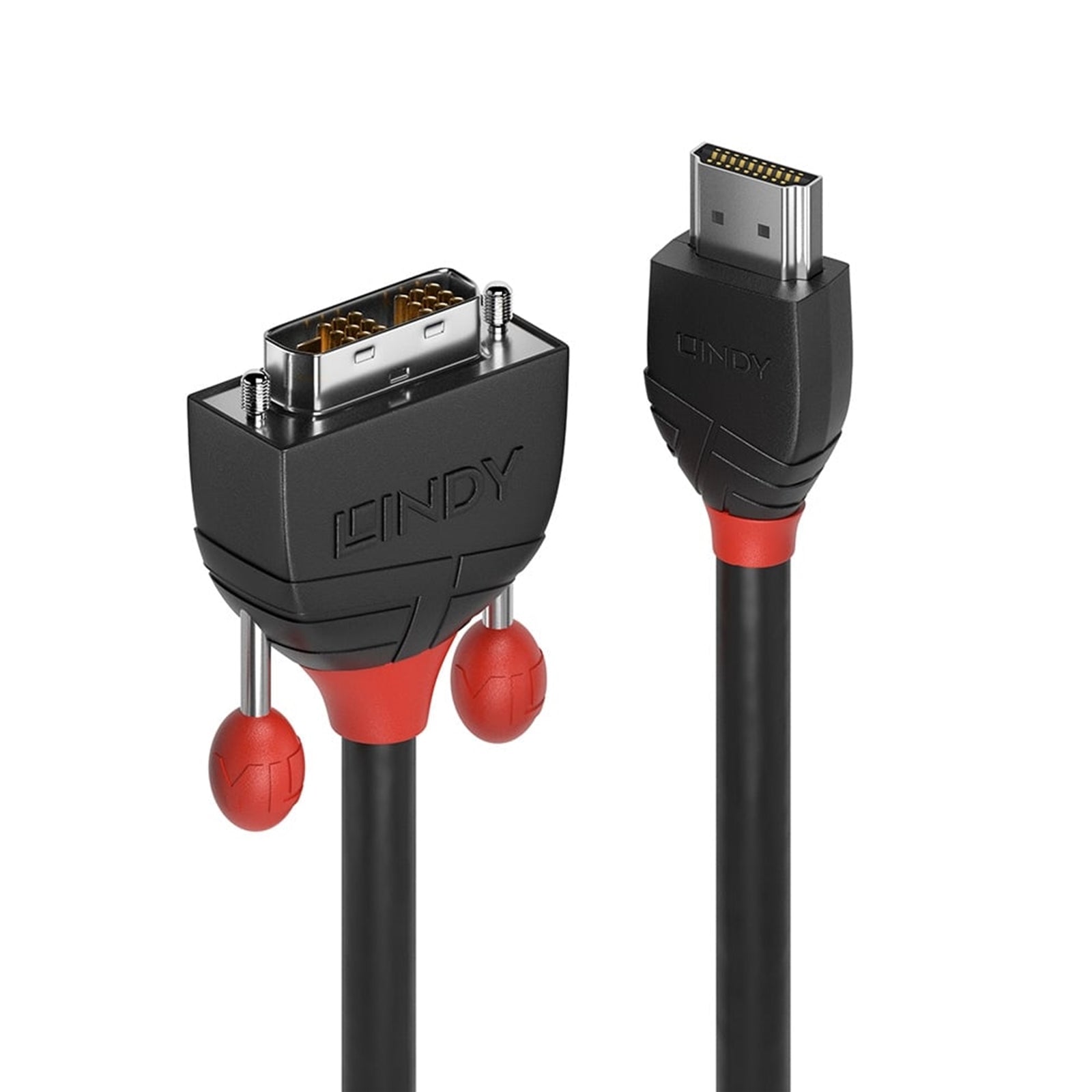

Lindy Black Line HDMI to DVI-D Cable - 2m

The Lindy 36272 Black Line HDMI to DVI-D cable delivers reliable connectivity for home and office setups. This 2-meter cable connects HDMI-equipped devices to DVI-D monitors and projectors, supporting resolutions up to 1920x1200@60Hz and HDTV resolutions up to 1080p.

Triple Shielded Construction

Built with triple shielded construction and 30AWG tinned copper conductors, this cable ensures consistent signal transmission while resisting corrosion. The aluminium/magnesium braid provides 85% shielding coverage, supporting bandwidth up to 4.95Gbps with minimal signal loss (1-825MHz < 12db attenuation).

Durable Connector Design

Nickel-plated connectors with 24K gold plated contacts (1µm) maintain signal integrity across extended use. The robust PVC housing incorporates an integrated finger grip for straightforward installation, while large thumb screws eliminate the need for tools during setup. A flexible strain relief extends cable lifespan at connection points.

Technical Specifications

The HDMI Type A Male to DVI-D Male (Single Link) configuration covers standard connectivity requirements. The round cable measures 5.5mm in diameter with a minimum bend radius of 55mm, suitable for typical routing scenarios. Operating temperature range spans -20°C to 80°C, with storage tolerance from -25°C to 85°C.

Connectors

Connector A: HDMI Type A Male
Connector B: DVI-D Male (Single Link)
Housing Material: PVC
Connector Plating: Nickel
Pin Construction: Brass
Pin Plating: 24K Gold 1µm
Dimensions, HDMI Connector (approx.) WxDxH: 21.4x34.2x12.7mm (0.84x1.35x0.5in)
Dimensions, DVI Connector (approx.) WxDxH: 36.8x44.5x12.5mm (1.45x1.75x0.49in)

Cable Construction

Length: 2m (6.56ft)
Standard: DVI-D Single Link
Colour: Black
Type: Round
Jacket Diameter: 5.5mm (0.22in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 30AWG
Shielding: Aluminium/Magnesium Braid 85%

Specifications

Supported Bandwidth: 4.95Gbps
Maximum Resolution: 1920x1200@60Hz
Nominal Attenuation: 1 – 825Mhz < 12db
Minimum Bend Radius: 55mm (2.17in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

• Connection A: HDMI (M)
• Connection B: DVI-D (M)
• Length: 2m
• Colour: Black & Red

10 Year Warranty

Backed by Lindy's 10-year warranty and certified to RoHS, REACH, and UL standards, this Black Line cable provides dependable performance for PC-to-monitor connections and presentation setups.
