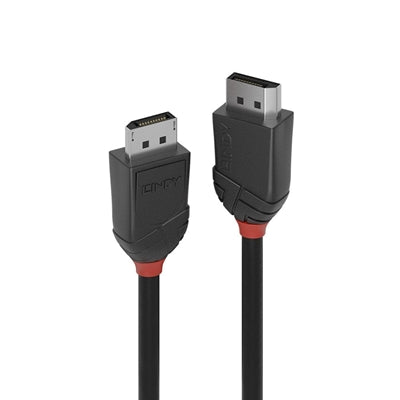

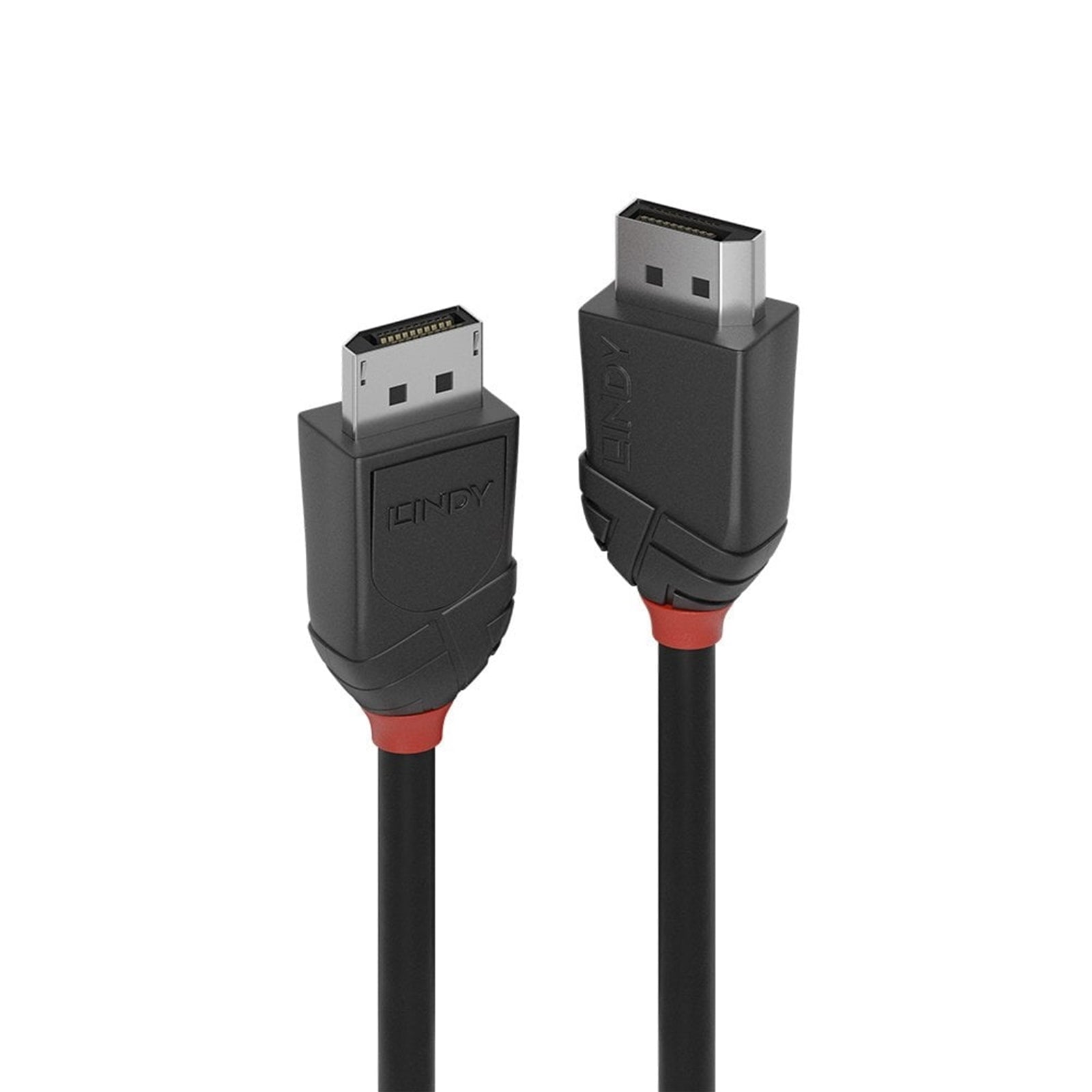

Lindy Black Line 3m DisplayPort 1.2 Cable - 4K Resolution

The Lindy 36493 Black Line DisplayPort cable delivers reliable 4K connectivity for home and small office applications. This 3-meter cable supports UHD resolutions up to 4096x2160@60Hz with 4:4:4 10bit color spacing, ensuring accurate color representation for professional and entertainment use.

Triple Shielded Construction for Signal Integrity

Built with triple shielded construction and 30AWG copper conductors, this DisplayPort cable maintains signal integrity across its full 3-meter length. The copper braid shielding provides 80% coverage, protecting against electromagnetic interference while the corrosion-resistant copper conductors ensure long-term reliability. Nickel connectors with 24K gold plated contacts deliver consistent performance and durability.

DisplayPort 1.2 Specifications

Supporting DisplayPort 1.2 standard, this cable provides 21.6Gbps bandwidth for high-resolution video transmission. The cable handles 32-channel audio and Dolby® True HD, making it suitable for complete multimedia setups. The robust PVC housing and 6mm jacket diameter provide flexibility while maintaining a minimum bend radius of 48mm.

Technical Specifications

Connectors:
Connector A: DisplayPort Male
Connector B: DisplayPort Male
Housing Material: ABS
Connector Plating: Nickel
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold 3µm
Dimensions (approx.) WxDxH: 21.0x38.9x13.6mm (0.83x1.53x0.54in)

Cable Construction:
Length: 3m (9.84ft)
Standard: DisplayPort 1.2
Colour: Black
Type: Round
Jacket Diameter: 6mm (0.24in)
Jacket Material: PVC
Conductor Material: Copper
Conductor Gauge: 30AWG
Shielding: Copper Braid 80%

Specifications:
Supported Bandwidth: 21.6 Gbps
Maximum Resolution: 4096x2160@60Hz 4:4:4 10bit
Nominal Attenuation: 300kHz-825MHz - <5dB, 825MHz-2.475GHz - <5dB, 2.475GHz-4.125GHz - <12dB, 4.125GHz-5.1GHz - <20dB
Minimum Bend Radius: 48mm (1.89in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous:
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

• Connection A: DisplayPort (M)
• Connection B: DisplayPort (M)
• Length: 3m
• Colour: Black & Red
