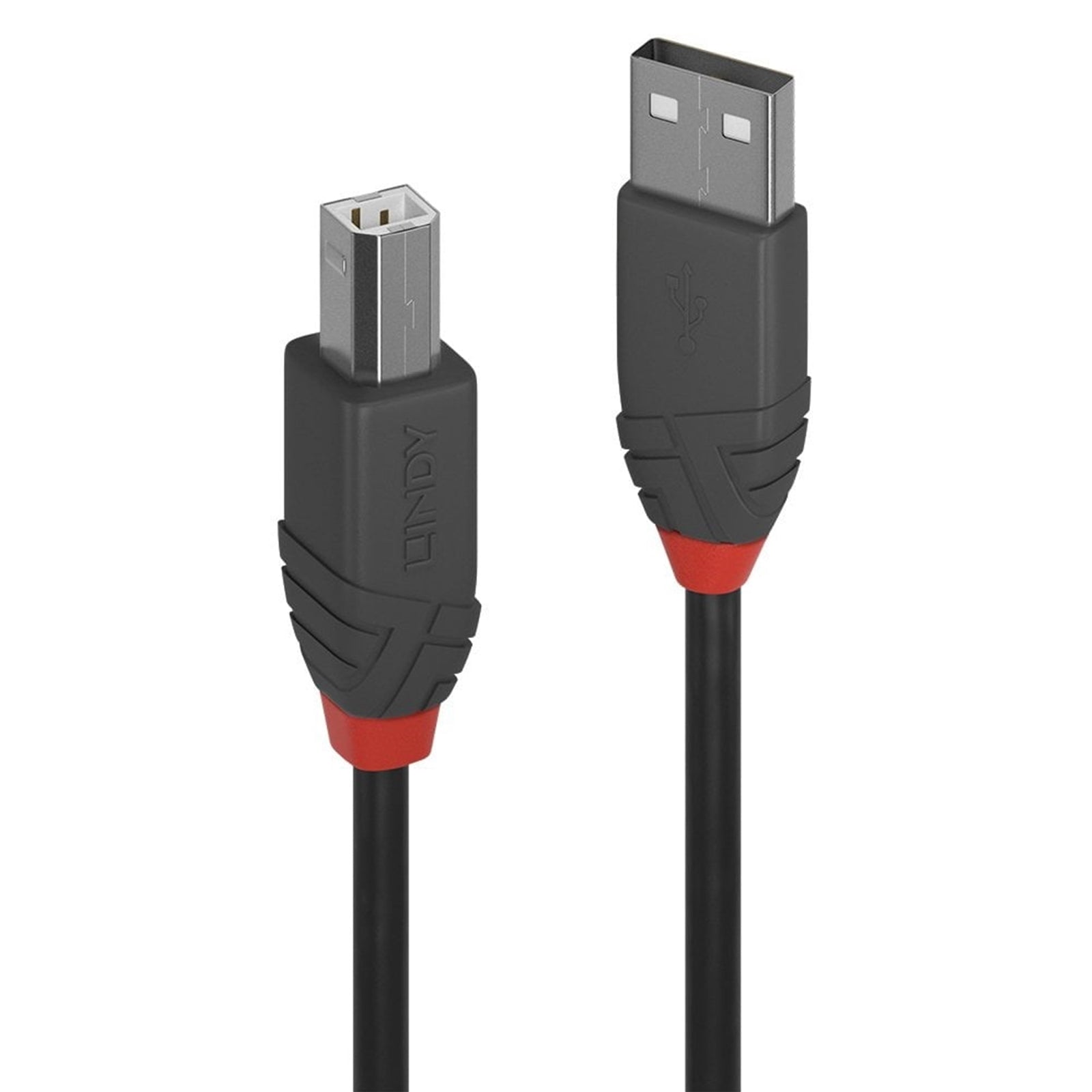

Professional USB 2.0 Type A to B Cable for High-Performance Installations

The LINDY 36674 Anthra Line USB 2.0 cable delivers professional-grade connectivity for commercial AV and IT installations. This 3-meter cable connects USB Type-A devices to USB Type-B peripherals with reliable 480Mbps data transfer speeds, making it ideal for printers, scanners, and other office equipment requiring fast, stable connections.

Premium Construction for Maximum Reliability

Built with double shielded construction and corrosion-resistant tinned copper conductors, this cable maintains optimal signal integrity even in demanding environments. The 24K gold plated contacts ensure superior conductivity and long-term durability, while nickel-plated connectors provide robust protection against wear. The 4.4mm PVC jacket houses aluminum magnesium braid shielding for comprehensive electromagnetic interference protection.

Technical Specifications

Connectors:

• Connection A: USB-A (M)
• Connection B: USB-B (M)
• Length: 3m
• Colour: Black & Red

Connector A: USB 2.0 Type A Male
Connector B: USB 2.0 Type B Male
Housing Material: PVC
Connector Plating: Nickel
Pin Construction: Copper
Pin Plating: 24K Gold
Dimensions, USB A (approx.) WxDxH: 15.5x35x7.8mm (0.61x1.38x0.31in)
Dimensions, USB B (approx.) WxDxH: 11.8x35x10.2mm (0.47x1.38x0.40in)

Cable Construction:
Length: 3m (9.84ft)
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter: 4.4mm (0.17in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 26/28AWG
Shielding: Aluminium Magnesium Braid

Performance Specifications:
Supported Bandwidth: 480Mbps
Maximum Resolution: -
Nominal Attenuation: 5.8db/km
Minimum Bend Radius: 16mm (0.63in)
Operating Temperature: 0°C - 60°C (32°F - 140°F)
Storage Temperature: 0°C - 60°C (32°F - 140°F)

Commercial-Grade Quality with 10-Year Warranty

Part of LINDY's premium Anthra Line series, this USB 2.0 cable meets RoHS, REACH, and UL certifications. The robust construction supports commercial installations where reliability is critical, backed by a comprehensive 10-year warranty. Available in lengths from 0.2m to 10m, the Anthra Line provides flexible solutions for various installation requirements.

Miscellaneous:
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL
