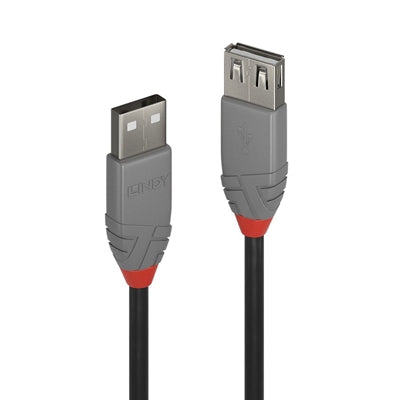

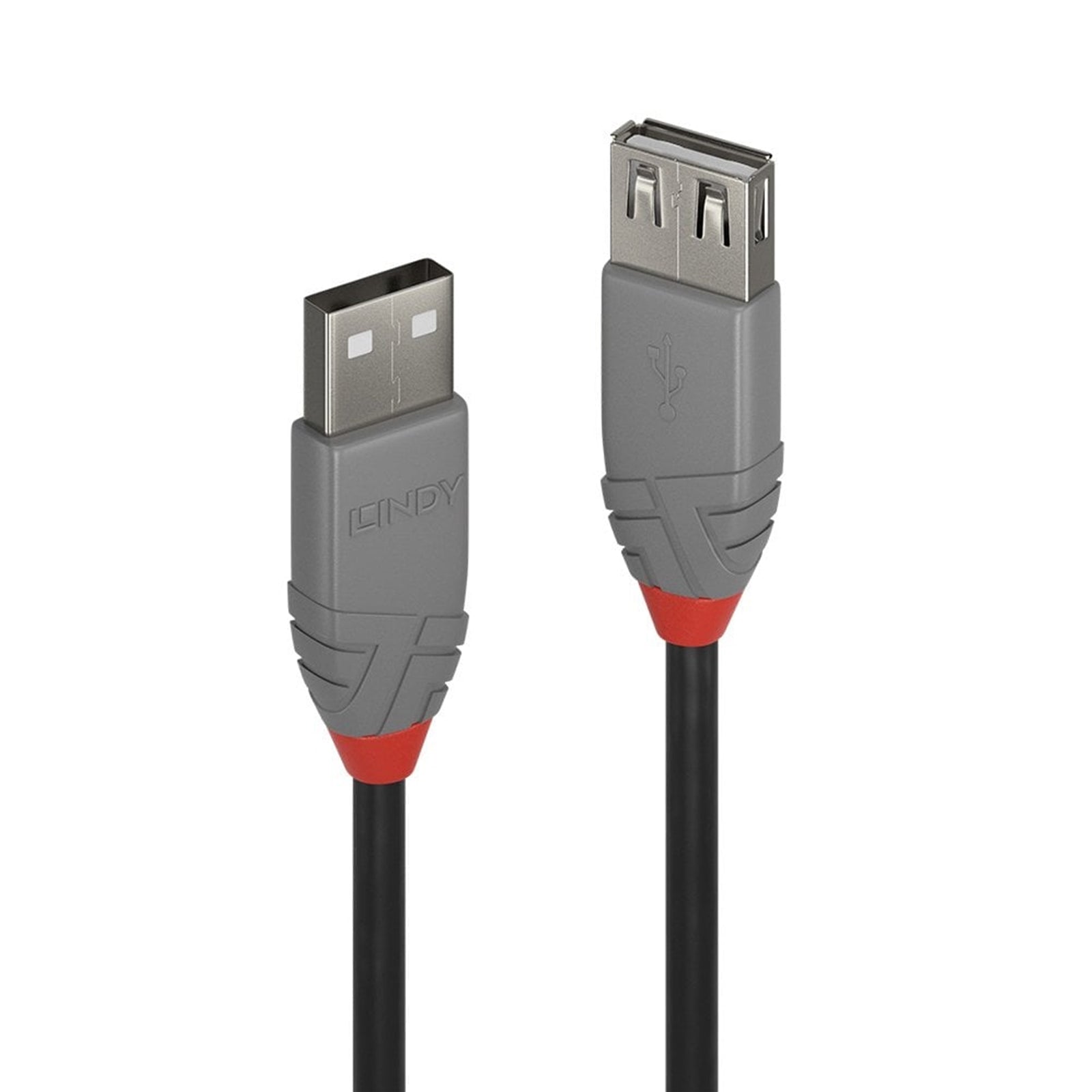

Lindy 0.5m USB 2.0 Type A Extension Cable - Anthra Line

The Lindy Anthra Line USB 2.0 Type A Extension Cable delivers professional-grade connectivity for commercial AV and IT installations. This 0.5m cable features double shielded construction with tinned copper conductors, ensuring reliable data transfer at speeds up to 480Mbps.

Professional Construction Quality

Built for demanding environments, this extension cable incorporates robust PVC housing with nickel-plated connectors and 24K gold plated contacts. The double shielding with aluminium magnesium braid protects against interference, while the corrosion-resistant tinned copper conductors (26/28AWG) maintain signal integrity over time. The 4.4mm round cable jacket provides durability without sacrificing flexibility, with a minimum bend radius of 16mm.

Technical Specifications

This USB 2.0 compliant cable supports data transfer speeds up to 480Mbps, making it suitable for connecting peripherals, external drives, and other USB devices. The male USB Type A connector measures 15.5 x 35 x 7.8mm, while the female connector measures 17 x 35 x 9.8mm. Operating temperature range spans 0°C to 60°C, ensuring reliable performance across various installation environments.

Anthra Line Reliability

Part of Lindy's professional Lines cable connectivity concept, Anthra Line cables represent the commercial choice for high-performance installations. The premium construction features nominal attenuation of just 5.8db/km, maintaining signal quality throughout the cable length. RoHS, REACH, and UL certified, this cable meets international safety and environmental standards.

Key Features

• Connection A: USB-A (F)
• Connection B: USB-A (M)
• Length: 0.5m
• Colour: Black & Grey

Complete Technical Details

Connectors

Connector A: USB 2.0 Type A Male
Connector B: USB 2.0 Type A Female
Housing Material: PVC
Connector Plating: Nickel
Pin Construction: Copper
Pin Plating: 24K Gold

Dimensions

USB A Male (approx.) W x D x H: 15.5 x 35 x 7.8 mm (0.61 x 1.38 x 0.31in)
USB A Female (approx.) W x D x H: 17 x 35 x 9.8 mm (0.67 x 1.38 x 0.39in)

Cable Construction

Length: 0.5 m (1.64ft)
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter: 4.4 mm (0.17 in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 26/28AWG
Shielding: Aluminium Magnesium Braid

Specifications

Supported Bandwidth: 480Mbps
Maximum Resolution: N/A
Nominal Attenuation: 5.8db/km
Minimum Bend Radius: 16 mm (0.63 in)
Operating Temperature: 0°C - 60°C (32°F - 140°F)
Storage Temperature: 0°C - 60°C (32°F - 140°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

Backed by a comprehensive 10-year warranty, this Lindy Anthra Line cable provides long-term reliability for professional installations. Available in lengths from 0.2m to 5m, ensuring the right solution for any setup requirement.
