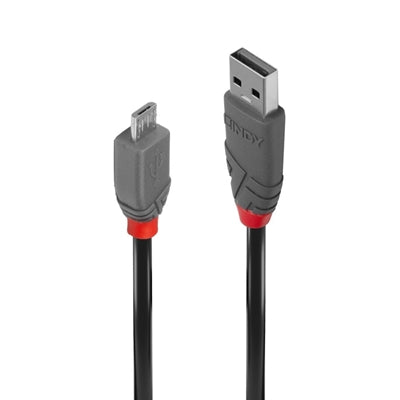

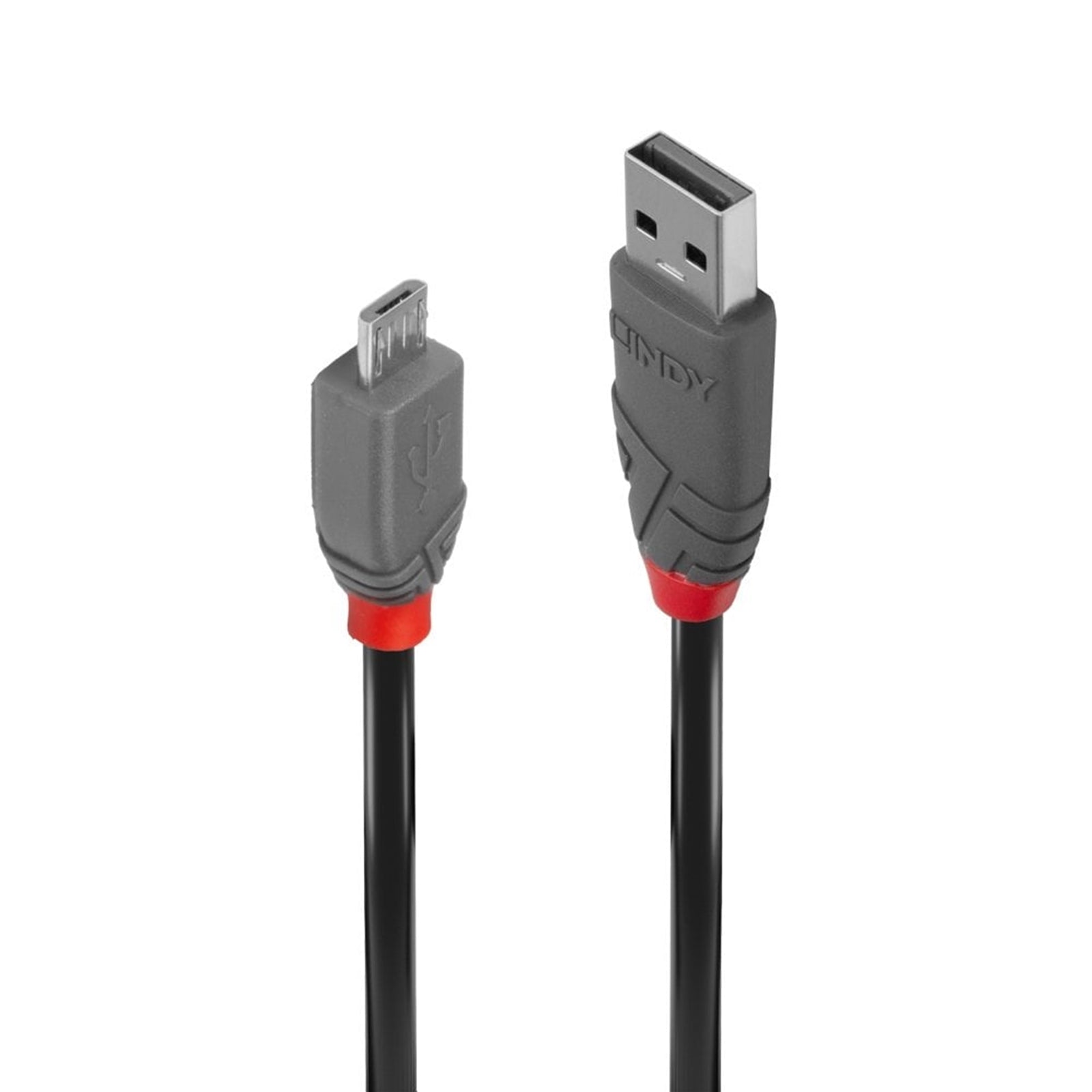

Lindy 0.5m USB 2.0 Type A to Micro-B Cable - Anthra Line

The Lindy 36731 USB 2.0 Type A to Micro-B Cable from the Anthra Line series delivers professional-grade connectivity for commercial AV and IT installations. This 0.5m cable combines robust construction with reliable performance for demanding environments.

Professional Construction

Built with double shielded aluminum magnesium braid construction and tinned copper conductors, this cable provides superior signal integrity and corrosion resistance. The 24K gold-plated pins and nickel-plated connectors ensure reliable connections over extended use. The PVC housing and jacket protect the 28AWG conductors while maintaining a compact 3.5mm diameter.

High-Speed Data Transfer

Supporting USB 2.0 specifications, this cable handles data transfer speeds up to 480Mbps, making it suitable for transferring large files, connecting peripherals, and charging compatible devices. The 0.5m length is ideal for desk setups, equipment racks, and installations where shorter cable runs reduce clutter.

Technical Specifications

Operating reliably in temperatures from 0°C to 60°C, this cable meets RoHS, REACH, and UL certifications. The minimum bend radius of 16mm prevents cable damage during installation. With a nominal attenuation of 5.8db/km, signal quality remains consistent across the cable length.

10-Year Warranty

Backed by Lindy's 10-year warranty, this cable is designed for long-term reliability in professional environments. The Anthra Line series represents Lindy's commitment to quality connectivity solutions for commercial applications.

Lindy 0.5m USB 2.0 Type A to Micro-B Cable, Anthra Line

Key Features
Professional choice USB 2.0 Type A to Micro-B cable for commercial and high performance AV and IT installations
Supports data transfer speeds up to 480Mbps
Robust PVC housing, nickel connectors and gold plated contacts
Double shielded cable, corrosion resistant tinned copper conductors
USB 2.0, 480Mbps; 10 year warranty

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to Micro-B cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain signal integrity and reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A to Micro-B cables are available in lengths from 0.2m to 5m.

Connectors

Connector A
USB 2.0 Type A Male

Connector B
USB 2.0 Type Micro-B Male

Housing Material
PVC

Connector Plating
Nickel

Pin Construction
Copper

Pin Plating
24K Gold

Dimensions
USB A (approx.) W x D x H
15.5 x 35 x 7.8 mm (0.61 x 1.38 x 0.31 in)

USB Micro-B (approx.) W x D x H
10 x 24 x 7.6 mm (0.29 x 0.95 x 0.30 in)

Cable Construction

Length
0.5 m (1.64 ft)

Standard
USB 2.0

Colour
Black

Type
Round

Jacket Diameter
3.5 mm (0.14 in)

Jacket Material
PVC

Conductor Material
Tinned Copper

Conductor Gauge
28AWG

Shielding
Aluminium Magnesium Braid

Specifications

Supported Bandwidth
480Mbps

Maximum Resolution
N/A

Nominal Attenuation
5.8db/km

Minimum Bend Radius
16 mm (0.63 in)

Operating Temperature
0°C - 60°C (32°F - 140°F)

Storage Temperature
0°C - 60°C (32°F - 140°F)

Miscellaneous

Packaging Type
Polybag

Warranty (Years)
10

Certificated
RoHS, REACH, UL

• Connection A: USB-A (M)
• Connection B: USB-A (M)
• Length: 0.5m
• Colour: Black & Grey
