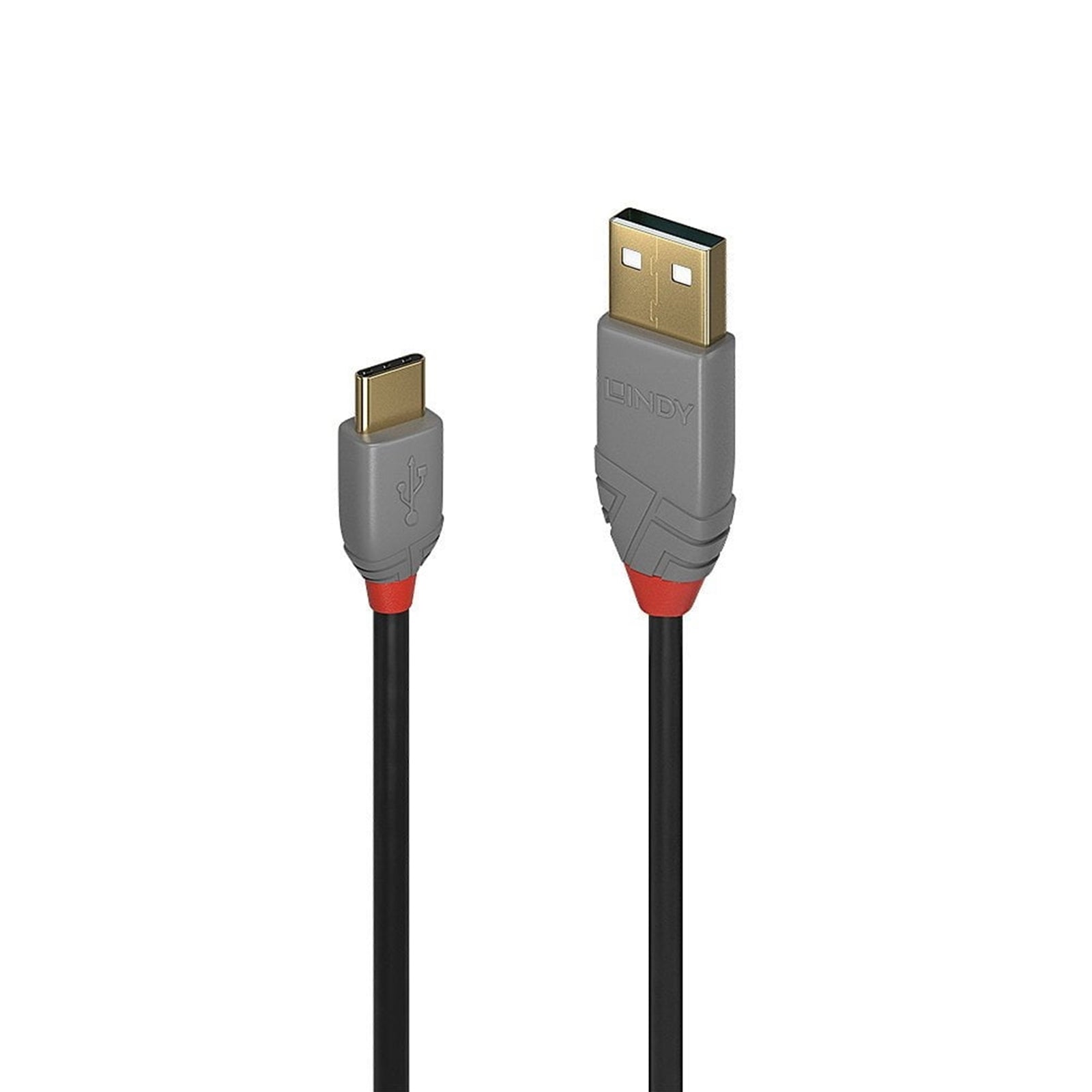

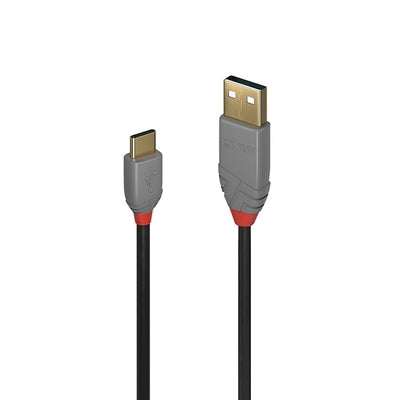

Professional USB 2.0 Type A to USB-C Cable - Lindy Anthra Line

The Lindy Anthra Line 36886 is a professional-grade USB 2.0 Type A to USB-C cable engineered for commercial AV and IT installations. This 1-meter cable delivers reliable 480Mbps data transfer speeds with premium construction designed to withstand demanding professional environments.

Premium Construction for Professional Use

Built with double shielded architecture featuring 60% copper braid shielding and corrosion-resistant tinned copper conductors (28AWG), this cable ensures consistent signal integrity and long-term reliability. The 24K gold-plated connectors and phosphor bronze pin construction minimize signal degradation and resist corrosion, making it suitable for permanent installations.

The reversible USB Type C connector eliminates connection orientation concerns, while the robust PVC housing protects internal components. With a 3.5mm jacket diameter and 35mm minimum bend radius, the cable balances flexibility with durability.

High-Performance Data Transfer

Supporting USB 2.0 standard with 480Mbps bandwidth, this cable handles large data volume transfers efficiently. The bi-directional design with automatic host and device negotiation ensures seamless connectivity across compatible devices.

Technical Specifications

Connectors
Connector A: USB 2.0 Type A Male
Connector B: USB 2.0 Type C Male
Housing Material: PVC
Connector Plating: 24K Gold Plated
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold Plated
Dimensions, USB Type A (approx.) WxDxH: 15.5x35.1x7.8mm (0.61x1.38x0.31in)
Dimensions, USB Type C (approx.) WxDxH: 11.0x25.5x7.3mm (0.43x1.00x0.29in)

Cable Construction
Length: 1m (3.28ft)
Standard: USB 2.0
Colour: Black
Type: Round
Jacket Diameter: 3.5mm (0.14in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 28AWG
Shielding: Copper Braid 60%

Specifications
Supported Bandwidth: 480Mbps
Maximum Resolution: -
Nominal Attenuation: 0.5-3m: 0.5Mhz – 400Mhz < 5.8db
Minimum Bend Radius: 35mm (1.38in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

Backed by 10-Year Warranty

Lindy stands behind this professional cable with a comprehensive 10-year warranty, reflecting confidence in its durability and performance. RoHS, REACH, and UL certifications ensure compliance with international safety and environmental standards.

• Connection A: USB-A (M)
• Connection B: USB-C (M)
• Length: 1m
• Colour: Black & Red
