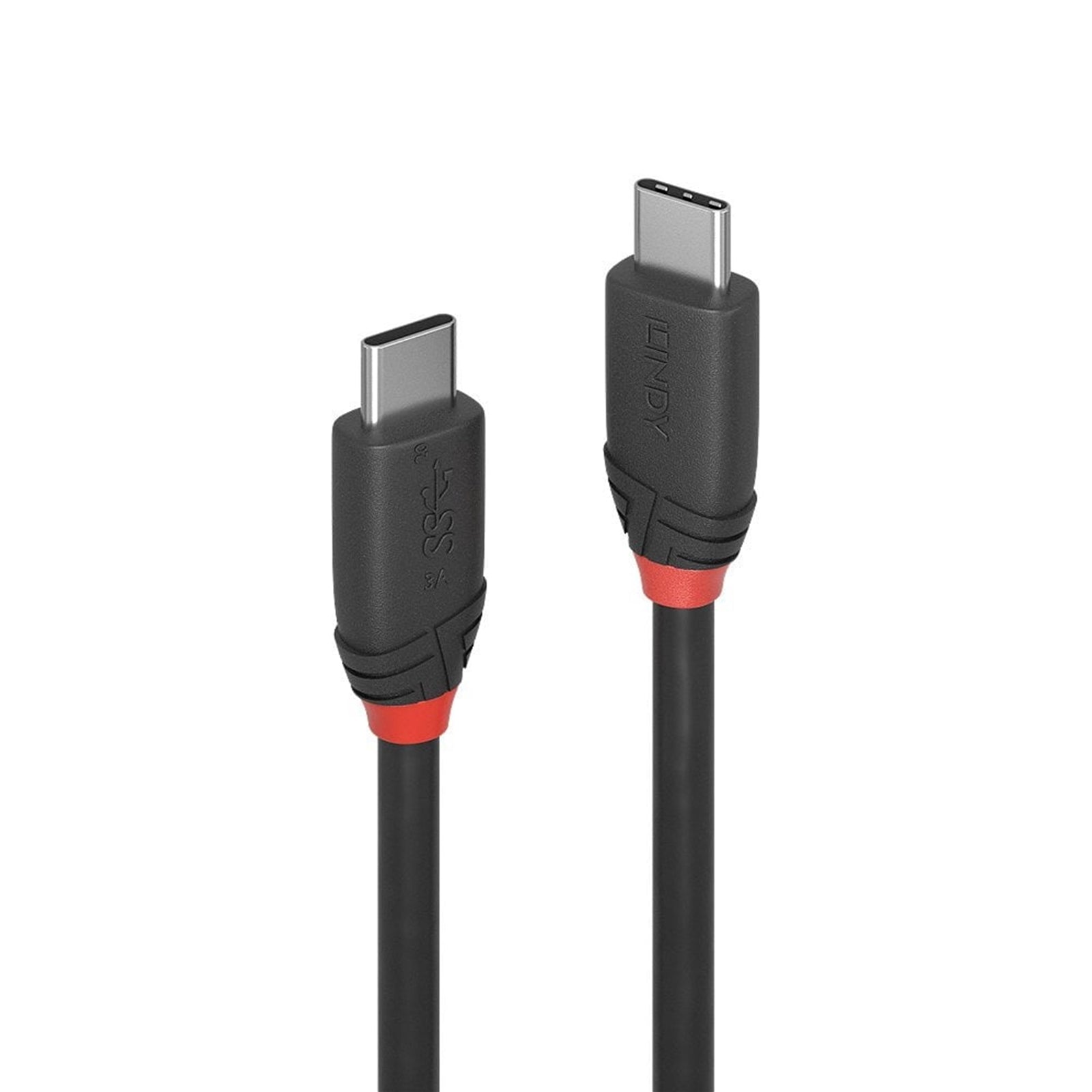

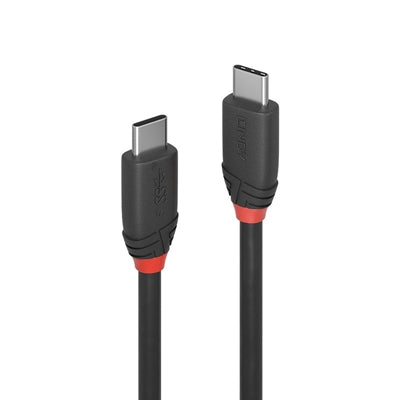

LINDY Black Line USB 3.2 Gen 2x2 Type-C to Type-C Cable - 1m

The LINDY 36906 Black Line USB 3.2 Type-C to Type-C cable delivers professional-grade connectivity for demanding data transfer applications. This 1-meter cable supports SuperSpeed USB 20Gbps transfer rates through USB 3.2 Gen 2x2 technology, making it ideal for transferring large files, connecting external storage, and high-speed device synchronization.

High-Speed Data Transfer Performance

Supporting data transfer speeds up to 20Gbps, this USB 3.2 Gen 2x2 cable handles rapid transfer of large data volumes with ease. The cable also provides 3A power delivery (60W), enabling simultaneous charging and data transfer for compatible devices. The reversible USB Type-C connectors ensure easy connection regardless of orientation, with automatic host and device negotiation for seamless operation.

Premium Construction and Durability

Built with triple shielded construction and corrosion-resistant tinned copper conductors, this cable maintains signal integrity and reliability over extended use. The robust PVC housing protects internal components, while nickel connectors with 24K gold plated contacts ensure optimal conductivity and resistance to corrosion. The cable features 26AWG power conductors and 32AWG data conductors with 75% tinned copper braid shielding for superior performance.

Technical Specifications

Connectors
Connector A: USB 3.2 Type C Male
Connector B: USB 3.2 Type C Male
Housing Material: PVC
Connector Plating: Nickel
Pin Construction: Phosphor Bronze
Pin Plating: 24K Gold plated
Dimensions (approx.) WxDxH: 11.0x25.5x7.3mm (0.43x1.00x0.29in)

Cable Construction
Length: 1m (3.28ft)
Standard: USB 3.2 Gen 2x2
Colour: Black
Type: Round
Jacket Diameter: 4.5mm (0.18in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge Power: 26AWG
Conductor Gauge Data: 32AWG
Shielding: Tinned Copper Braid 75%

Specifications
Supported Bandwidth: 20Gbps
Maximum Resolution: -
Nominal Attenuation: 0.5Mhz – 15Ghz < 40db
Minimum Bend Radius: 45mm (1.77in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)
ATC Approved: -

Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL

USB 3.2 Generation Information

This cable follows the updated USB specification naming convention. USB 3.2 Gen 2x2 represents the latest standard supporting data transfer rates up to 20Gbps. The cable maintains full backward compatibility with USB 3.0, USB 3.1 and USB 3.2 devices when using either USB Type A or USB Type C host interfaces.

Backed by LINDY's comprehensive 10-year warranty and certified to RoHS, REACH, and UL standards, this Black Line USB 3.2 Type-C cable provides reliable, high-performance connectivity for home and small office applications.

• Connection A: USB-C (M)
• Connection B: USB-C (M)
• Length: 1m
• Colour: Black & Red
