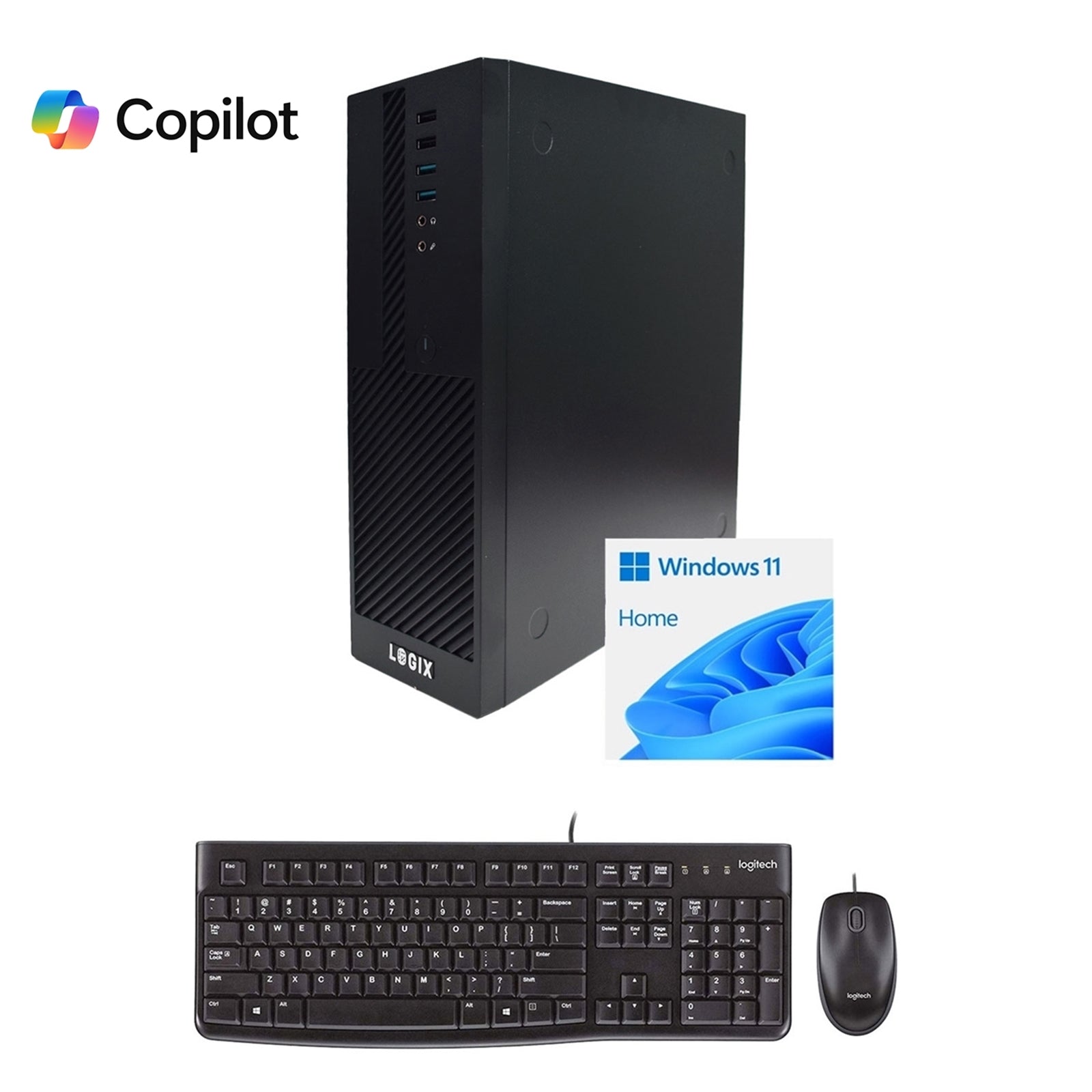

Compact Desktop PC for Home and Office Productivity

The LOGIX S4 386H delivers reliable performance in a space-saving design. Built around the 14th Gen Intel Core i3-14100 processor with 4 cores and 8 threads (3.5GHz base, up to 4.7GHz turbo), this small form factor desktop handles everyday computing tasks efficiently—video conferencing, document editing, web browsing, and light creative work.

Equipped with 8GB Kingston DDR4 RAM and a 500GB Kingston PCIe 4.0 NVMe SSD (6000MB/s read speeds), the system delivers fast boot times and responsive application performance. The Gigabyte H610M motherboard supports memory expansion up to 64GB DDR4, with an additional RAM slot available for future upgrades.

Connectivity and Graphics

Intel UHD Graphics 730 supports resolutions up to 7680 x 4320 @ 60Hz via DisplayPort and 4096 x 2160 @ 60Hz through HDMI. Multiple display outputs include 2x DisplayPort, 1x HDMI, and 1x VGA. WiFi 6E 802.11ax (AX1800) and Bluetooth 5.2 via TP-Link Archer TX20E adapter provide wireless connectivity, while Realtek 1Gbps Ethernet ensures stable wired network performance.

Front panel access includes 2x USB 3.0 and 2x USB 2.0 ports, plus 3.5mm audio connections. The rear I/O features 2x USB 3.2 Gen 1, 4x USB 2.0, RJ-45 Ethernet, and multiple audio jacks. The compact 321mm x 95mm x 283mm chassis includes an 80mm cooling fan and 300W TFX power supply.

Ready to Use Out of the Box

Windows 11 Home comes pre-installed with latest updates—no bloatware or unnecessary software. The Logitech MK120 wired keyboard and optical mouse are included for immediate productivity. Hand-built in the UK with industry-leading components, each system undergoes rigorous testing before shipping.

Storage expansion options include 4x SATA 6Gb/s connectors and drive bays supporting 1x 3.5" and 2x 2.5" drives. The motherboard offers 1x PCIe x16 slot (Gen 4.0) and 1x PCIe x1 slot (Gen 3.0) for additional expansion cards.

Backed by a comprehensive 3-year warranty covering parts and labor with collection and return service (UK mainland), this desktop provides long-term reliability for home office and business environments.

Specification:

Operating System: Windows 11 Home
Processor: 14th Gen Intel Core i3-14100
Memory (RAM): Kingston Technology 8GB DDR4 (upgradeable to 64GB DDR4 – additional memory slot available)
Storage: Kingston Technology 500GB PCIE 4.0 NVMe M.2 SSD
Graphics: Intel UHD Graphics 730 (maximum resolution 7680 x 4320 pixels @ 60Hz using DisplayPort, 4096 x 2160 @ 60Hz using HDMI)
Motherboard: Gigabyte H610M Ultra Durable Motherboard
Case: LOGIX Small Form Factor
Connections:
Front –
2 x USB-A 3.0
2 x USB-A 2.0
3.5mm HD microphone & audio
Back:
2 x PS/2
1 x VGA
2 x DisplayPort
1 x HDMI
2 x USB-A 3.2 Gen 1
4 x USB-A 2.0
1 x RJ-45 Ethernet
3 x 3.5mm Audio
Networking:
Wired: Realtek 1Gbps GbE LAN
Wireless:Wireless: WiFi 6E 802.11ax
Peripherals: Logitech MK120 Wired Keyboard & Mouse
Warranty: 3 years - parts and collection included (UK mainland only)


Processor
Intel Core i3 14100 4 Core Processor 8 Threads, 3.5GHz up to 4.7GHz Turbo Raptor Lake Refresh Socket LGA 1700 12MB Cache

Processor Cores
4

Processor Threads
8

Core Clock Speed
3.50GHz

Core Boost Speed
4.70GHz

Memory
Kingston Technologies RAM 8GB No Heatsink DDR4 3200MHz System Memory
Voltage: 1.20V
Latency Timing: CL22
Speed: 3200MHz (PC4-25600)
1 x 8GB DIMM Memory
Intel XMP Profile Support

Memory Configuration
1 x 8GB
2 Lanes (1 occupied)

SSD Drive
Kingston NV3 (SNV3S/500G) 500GB, NVMe M.2 Interface, PCIe 4.0, 2280 SSD, Read 6000 MB/s, Write 2200 MB/s
Data storage life
160 TBW
MTBF
1,500,000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe

Format
Gen4 x4 NVMe

Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 2200MB/S

Hard Drive
No Additional Drive Fitted

Optical Drive
No Optical Drive Fitted

Graphics
Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)
4096 x 2160 @ 60Hz
Max Resolution (DP)
7680 x 4320 @ 60Hz

Graphics Card I/O
No Graphics Card Fitted. Uses Intel On-Chip Graphics

Operating System
Microsoft Windows 11 Home 64bit English OEI DVD Operating Software - installed and up to Date. No Bloatware

Card Reader
No Card Reader Fitted

Networking
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
Wireless Standards:

IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2

WLAN Signal Rate:
5 GHz
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Power Supply
300w TFX Pre-Fitted PSU

Motherboard
Gigabyte H610M S2H V2 Motherboard, LGA1700 Socket, Micro ATX, DDR4, PCIe Gen3 x4 M.2

Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors

Rear I/O
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
2 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Chassis
LOGIX Small Form Purpose Built Robust Chassis

Drive Bays
5.25" x 0
3.5" x 1
2.5" x 2

IO Ports
2 x USB 3.0
2 x USB 2.0
HD Mic
HD Audio
Power

Cooling
1 x 80mm fan included

Dimensions
321mm x 95mm x 283mm (W x H x D)

Package Weight
4.0 kg

Warranty
3 Years Parts & Labour Including Collect and Return (UK mainland only)

• Case Style: Small Form Factor
• Processor: Intel Core i3
• Processor Cores: 4
• Storage: 500GB
• Memory: 8GB
• Graphics: On-Chip
• Operating Software: Windows 11 Home
