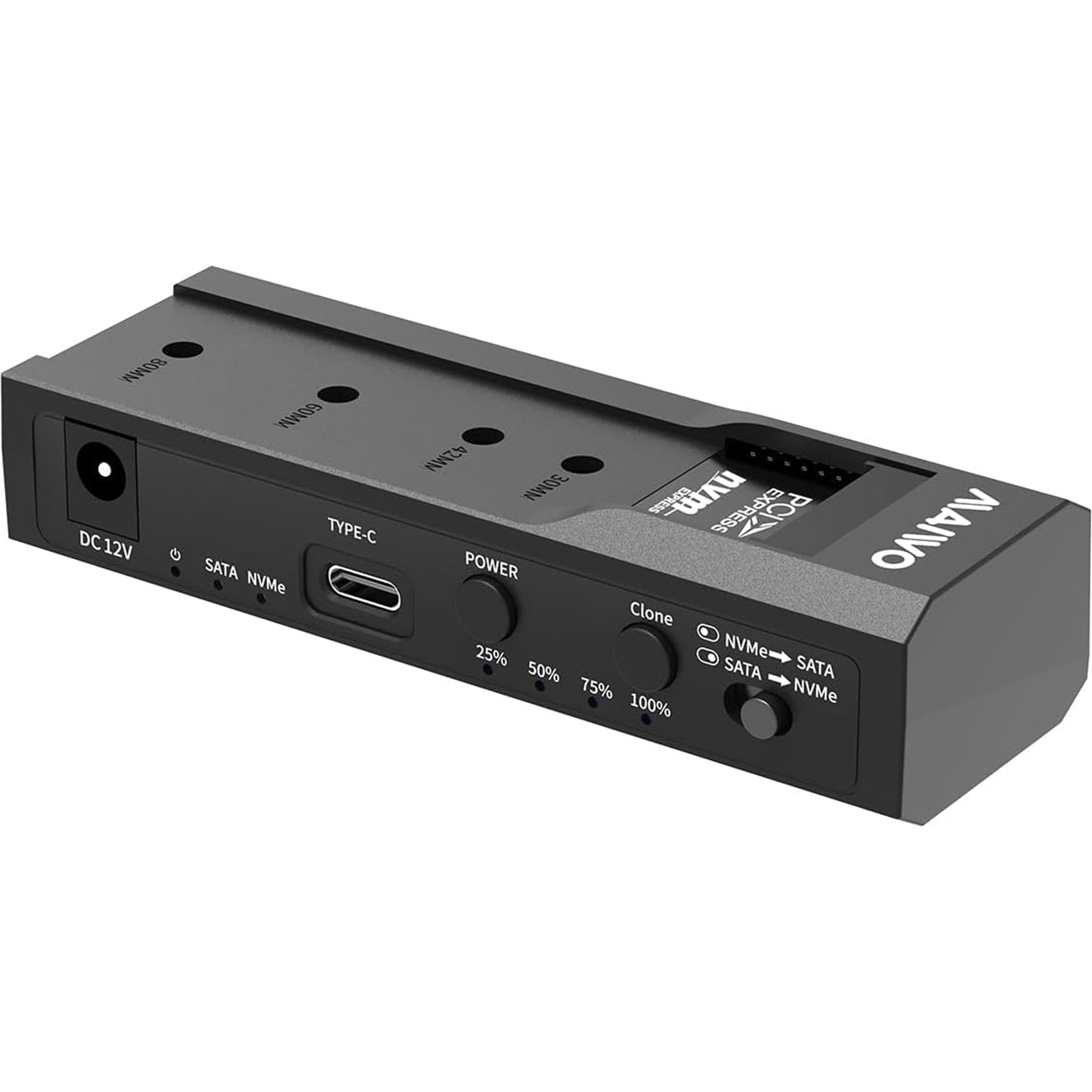

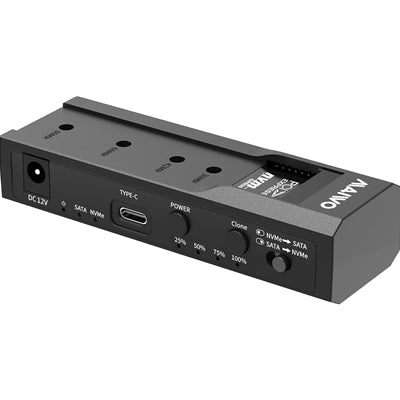

Maiwo K10635N USB Type-C Dual Bay Docking Station with Offline Cloning

The Maiwo K10635N is a professional-grade dual bay docking station that supports both M.2 NVMe SSDs and 2.5"/3.5" SATA drives simultaneously. With USB Type-C connectivity delivering up to 10Gbps transfer speeds, this converter provides fast data access and seamless drive cloning capabilities without requiring a computer connection.

Versatile Drive Compatibility

This docking station accommodates M-key NVMe SSDs in multiple sizes including 2230, 2242, 2260, and 2280 form factors. The SATA bay accepts both 2.5-inch and 3.5-inch SATA HDDs and SSDs. The tool-free design allows quick installation without screws, while a silicone cork secures M.2 drives firmly in place. Both drives are recognized simultaneously when connected to your PC, providing flexible storage management options.

Bidirectional Offline Clone Function

The K10635N features dual-way offline cloning capability, allowing you to copy data from 2.5"/3.5" SATA drives to NVMe SSDs or from NVMe to SATA drives without computer involvement. Four LED indicators display clone progress at 25%, 50%, 75%, and 100% completion stages. A dedicated switch controls source and target disk selection, ensuring accurate data migration. The clone function requires the USB-C cable to be disconnected from the PC during operation.

High-Speed Data Transfer

The USB Type-C interface supports UASP (USB Attached SCSI Protocol), improving transfer speeds by approximately 30% on Windows 8 and above operating systems. With maximum speeds reaching 10Gbps, this docking station handles large file transfers efficiently. Drive indicator lights flash during read and write operations, providing visual feedback on drive activity.

Cross-Platform Compatibility

The Maiwo K10635N works seamlessly with Windows, macOS, and Linux operating systems. The compact unit measures 108 x 35 x 24 mm, making it suitable for desktop and portable use. The package includes the adapter, USB-C cable, power adapter, mounting screws, user manual, and warranty card.

Clone Operation

To initiate cloning, ensure the target drive capacity equals or exceeds the source drive. Select your desired clone mode, connect the power adapter, and activate the power switch. Long-press the clone button for 5 seconds until the clone indicator flashes, then press again within 5 seconds to begin. Progress indicators illuminate sequentially as cloning proceeds, remaining lit upon completion.

Technical Specifications

Key Features
Screw-less design easy to install HDD and SSD
Compatible for different kinds of HDD/SSD in the market, including M-key NVMe SSD,2.5" SATA HDD/SSD and 3.5" SATA HDD, can recognize two disks simultaneously when connecting with PC
Support M-key NVMe SSD
Offline clone, dual way, can copy 2.5"/3.5" SATA => NVMe or NVMe => 2.5"/3.5" SATA, switch to control source and target disk
Four LED lights indicate clone progress 25%,50%,75% and 100%
Interface: Type C to SATA/M-key M2
Support SSD size: 2230,2242,2260 ,2280
USB speed to 10Gbps max
Support U.A.S.P, will improve speed 30% at win8 or above
Compatible with windows, MAC and Linux
Unit size:108 x 35 x 24 mm

Clear Indicator Light

Drive Indicatior
Light Flashes when read & write, light goes off when in sleep mode.

Clone Indicator
Light flashes when cloning, light up when cloning is finished.

Step 1
Insert 2.5"/3.5" SATA drive into the SATA Port, or insert M.2 NVMe SSD into the M2 port.

Step 2
Spin the silicone cork to fix the M.2 hard drive.

Step 3
Connect the adapter to your device via data cable.

Step 4
Connect the power adapter and open the power switch.

Clone Operation Steps

Step 1
Choose the clone mode
Make sure the capacity of the target drive is larger than or equal to the source drive
Connect the power adapter, open the POWER switch, the power light, lights up and then the two Drive Indicators light up

Step 2
Long-press Clone button for 5 seconds and the Clone Indicator flashes
Press Clone button within 5 seconds to enter clone mode
Corresponding progress indicators start to flash when cloning
Indicators are on once cloning is finished

Note:
You must remove the USB-C cable from the PC for the cloning process to work

Box Contents
Package Content:
1 x adapter
1 x cable
1 x power adapter
3 x screws
1 x manual
1 x warranty card

Warranty
1 Year

• HD Size: 2.5 & 3.5
• Internal Connection: SATA III
• External Connection: USB Type - C
