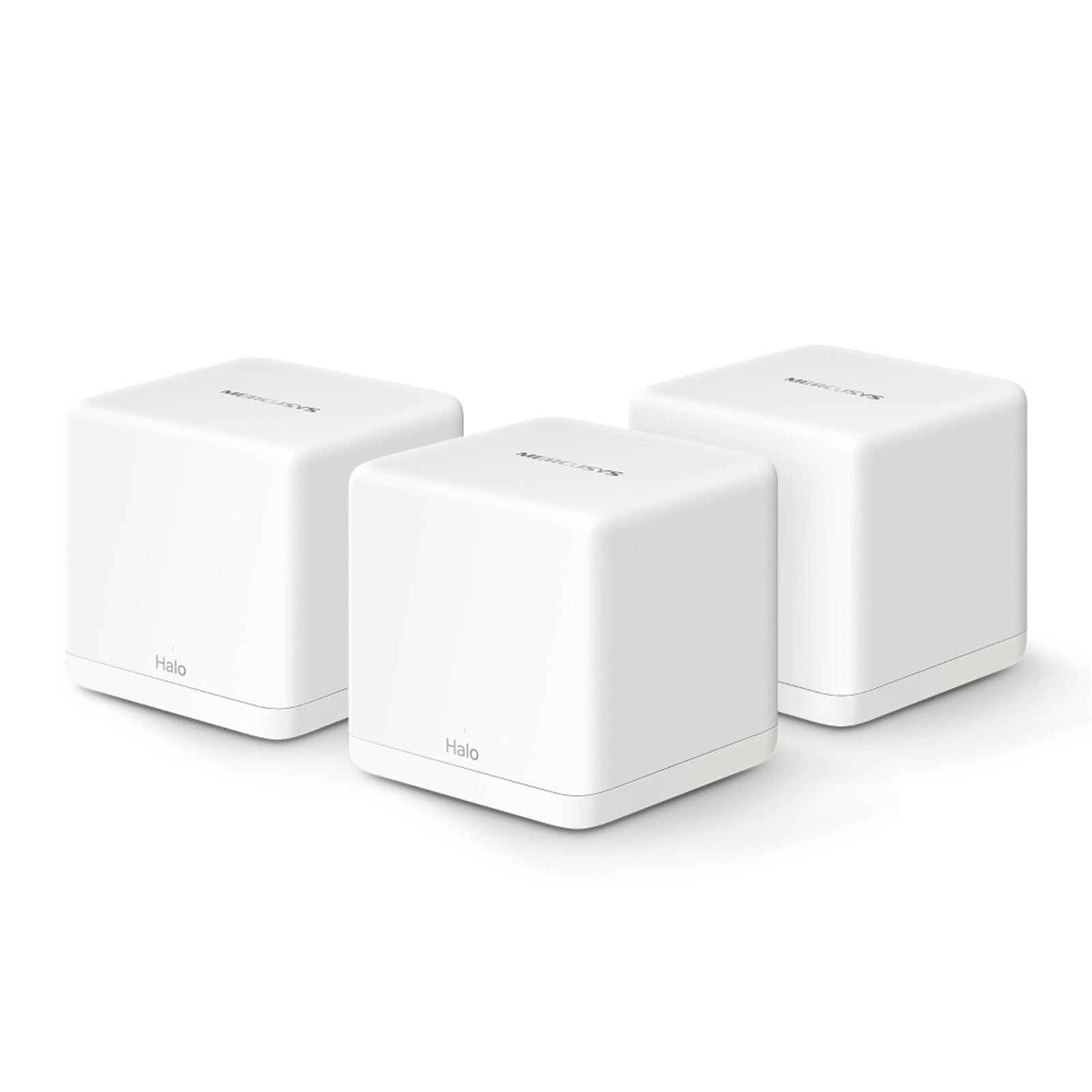

Mercusys Halo H1500X AX1500 Whole Home Mesh WiFi 6 System

The Mercusys Halo H1500X delivers comprehensive WiFi 6 coverage across your entire home with a 3-pack mesh system. Engineered to blanket up to 6,000 square feet with reliable wireless connectivity, this AX1500 system eliminates dead zones and provides consistent internet access in every room.

WiFi 6 Performance for Modern Homes

Equipped with dual-band WiFi 6 technology, the H1500X achieves combined speeds up to 1500 Mbps—delivering 1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. This mesh system supports over 100 connected devices simultaneously, making it suitable for smart homes with multiple smartphones, tablets, laptops, IoT devices, and streaming equipment.

Seamless Mesh Network Technology

The Halo units create a unified network with a single SSID and password. Using 802.11k/v/r mesh protocols, the system automatically switches your devices between nodes as you move throughout your home, maintaining uninterrupted connections without manual network switching. This seamless roaming ensures consistent performance whether you're in the living room, bedroom, or home office.

Gigabit Wired Connectivity

Each unit features full gigabit ethernet ports for wired connections. The main H1500XR router includes 3 gigabit WAN/LAN ports, while each H1500XS satellite unit provides 2 gigabit LAN ports. These ports support devices requiring stable, high-speed wired connections such as gaming consoles, desktop computers, and smart TVs.

Network Management and Security

The MERCUSYS App provides straightforward network setup and management from your smartphone. Configure your WiFi settings, monitor connected devices, and manage parental controls to regulate children's internet access and content. The system supports WPA3 security protocols along with WPA-PSK/WPA2-PSK encryption, while the SPI firewall protects your network from external threats.

Flexible Operation Modes

The H1500X operates in both Router and Access Point modes, supporting multiple WAN types including Dynamic IP, Static IP, PPPoE, L2TP, and PPTP. The system is compatible with both IPv4 and IPv6 protocols and includes guest network capabilities on both frequency bands for visitor access without compromising your main network security.

Package Contents

The 3-pack includes one Halo H1500XR main unit, two Halo H1500XS satellite units, one RJ45 ethernet cable, three power adapters, and a quick installation guide. Each compact unit measures 3.5 x 3.5 x 3.5 inches and operates in temperatures from 0°C to 40°C.

Dual Band WiFi 6 Speeds up to 1500 Mbps
1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.

Seamless Roaming with One Unified Network
Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.

Whole Home Coverage
Blanket up to 6,000 ft² (550 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.

Connect over 100 Devices
Provide fast and stable connections over 100 devices.

Easily Manage Your Home Network
Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids' online time and contents.

Full Gigabit Ports
Gigabit ports for lightning-fast wired connections.
*Please note that the Halo H series and S series cannot work together.

Specifications

Wireless

Wireless Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

Signal Rate
1201 Mbps on 5 GHz, 300 Mbps on 2.4 GHz

Reception Sensitivity
2.4GHz:
11g 6Mbps:-96.5dBm
11g 54Mbps:-78dBm

5GHz:
11a 6Mbps:-96dBm
11a 54Mbps:-78dBm
11ac VHT20 MCS8:-74.5dBm
11ac VHT40 MCS9:-70.5dBm
11ac VHT80 MCS9:-66.5dBm
11ax HE20 MCS11:-66dBm
11ax HE40 MCS11:-63dBm
11ax HE80 MCS11:-61dBm

Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Wireless Security
WPA-PSK/WPA2-PSK/WPA3

Mesh protocol
802.11k/v/r

Software

Operation Modes
Router, Access Point

Quality of Service
WMM

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Local Management, Remote Management, Multi-Managers

DHCP
Server, Client

Firewall Security
SPI Firewall

Protocols
Supports IPv4 and IPv6

Guest Network
2.4 GHz Guest Network,
5 GHz Guest Network

Hardware

Dimensions (W X D x H)
3.5 x 3.5 x 3.5 in (88 x 88 x 88 mm)

Interfaces
Halo H1500XR: 3x Gigabit WAN/LAN Ports
Halo H1500XS: 2x Gigabit LAN Ports

Button
Reset button

Others

Package Contents - 3-pack

1x Halo H1500XR Unit+ 2x Halo H1500XS Units
1x RJ45 Ethernet Cable
3x Power Adapters
Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

• Product Type: Mesh System
• Included Nodes: 3
• Mesh Speed: AX1500
