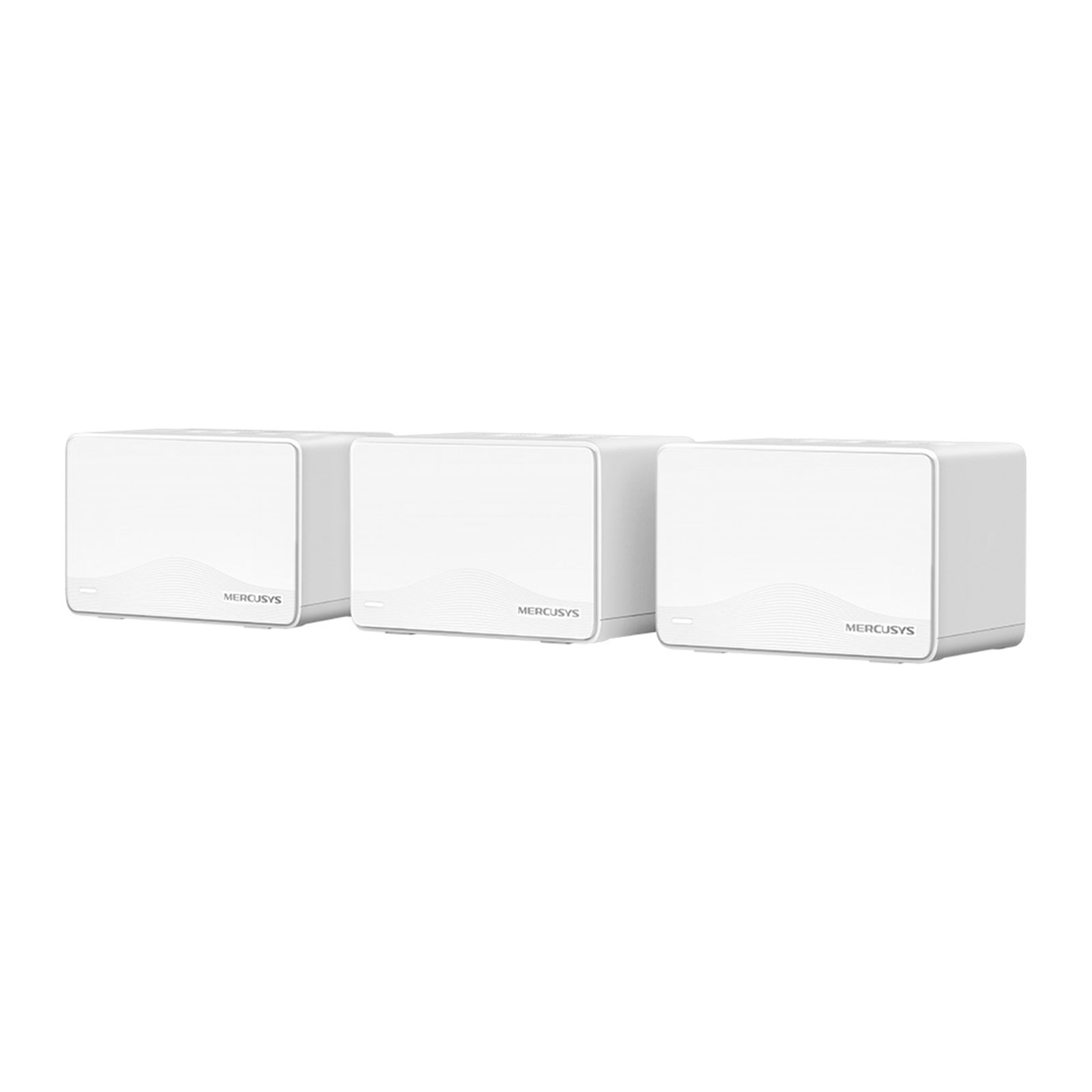

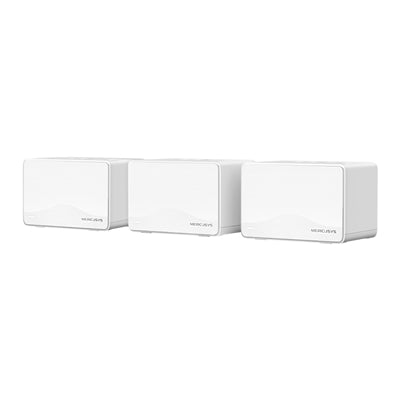

Mercusys Halo H25BE BE3600 Whole Home Mesh Wi-Fi 7 System

The Mercusys Halo H25BE delivers professional-grade Wi-Fi 7 performance with 3.6 Gbps dual-band speeds across your entire home. This 3-pack mesh system covers up to 7,000 sq ft with consistent, high-speed connectivity for 4K/8K streaming, AR/VR gaming, and multi-device households.

Wi-Fi 7 Technology for Maximum Performance

Built on the latest IEEE 802.11be standard, the H25BE utilizes 4K-QAM, Multi-Link Operation (MLO), and Multi-RUs to deliver significantly higher throughput and lower latency compared to previous generations. The system provides 2880 Mbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band, ensuring every device operates at optimal speed.

Seamless Mesh Coverage

Three Halo H25BE units work together as a unified network using 802.11k/v/r mesh protocols. Move freely throughout your home without experiencing signal drops or connection interruptions. The system automatically connects your devices to the strongest available signal as you move between rooms.

Multi-Link Operation (MLO)

MLO technology allows devices to transmit and receive data simultaneously across multiple bands, reducing latency and improving reliability for bandwidth-intensive applications. This feature is particularly beneficial for real-time gaming, video conferencing, and smart home automation.

Full Gigabit Connectivity

Each unit includes three gigabit ethernet ports with WAN/LAN auto-sensing, providing flexible wired connections for gaming consoles, smart TVs, NAS devices, and desktop computers. The system supports both router and access point operation modes to fit your network configuration.

Advanced Security and Management

WPA3-SAE encryption protects your network with the latest security standards. The SPI firewall provides additional protection against external threats. Manage your network locally or remotely through the MERCUSYS app, with support for multiple administrators. Guest networks on both 2.4 GHz and 5 GHz bands keep visitors separate from your primary network.

Technical Specifications

The H25BE supports Dynamic IP, Static IP, PPPoE, L2TP, and PPTP WAN types, with full IPv4 and IPv6 protocol support. DHCP server and client functionality, WMM quality of service, and reception sensitivity of -97dBm (2.4G) and -98.5dBm (5G) ensure reliable performance across various network environments.

Mercusys BE3600 Halo H25BE Whole Home Mesh Wi-Fi 7 System

Blazing-Fast 3.6 Gbps Dual-Band Speeds
Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.

Newest Wi-Fi 7
Armed with the 4K-QAM, MLO, Multi-RUs, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.

Seamless Roaming for a Smooth Network Experience
No more sudden signal drops or lagging Wi-Fi when you're walking around the house.

Multi-Link Operation (MLO) Increases throughput, reduces latency, and improves reliability for emerging applications.

Full Gigabit Ports
3x Gigabit ports per Halo unit for lightning-fast wired connections.

Whole Home Multi-Gigabit Coverage
Halo mesh units work as a unified network to fill your home up to 7,000 ft2 / 650 m2 (3-pack) ; 5,000 ft² / 460 m² (2-pack) .

Specifications

Wireless

Wireless Standards
5 GHz: IEEE 802.11b/g/n/ac/ax/be mixed
2.4 GHz: IEEE 802.11b/g/n/ax/be mixed

Signal Rate
2880 Mbps at 5 GHz
688 Mbps at 2.4 GHz

Reception Sensitivity
2.4G: -97dBm
5G: -98.5dBm

Transmission Power
5G band1 band2 < 23dBm
5G band3 < 30dBm
2.4G band < 20dBm

Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE

Mesh protocol
802.11k/v/r

Software

Operation Modes
Router, Access Point

Quality of Service
WMM

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Local Management, Remote Management, Multi-Managers

DHCP
Server, Client

Firewall Security
SPI Firewall

Protocols
Supports IPv4 and IPv6

Guest Network
2.4 GHz Guest Network
5 GHz Guest Network

Easy Setup and Use
Network management has never been easier with the MERCUSYS app.
*Please note that the Halo H series and S series cannot work together.

Hardware

Dimensions (W X D X H)
5 x 3.2 x 3.3 in (128 x 81.3 x 83.7 mm))

Interfaces
3x 1 Gbps Ports (WAN/LAN auto-sensing)

Button
Reset button

Others Package Contents
3-pack
3x Halo H25BE Units
1x RJ45 Ethernet Cable
3x Power Adapters
Quick Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

• Product Type: Mesh System
• Included Nodes: 3
• Mesh Speed: BE3600
