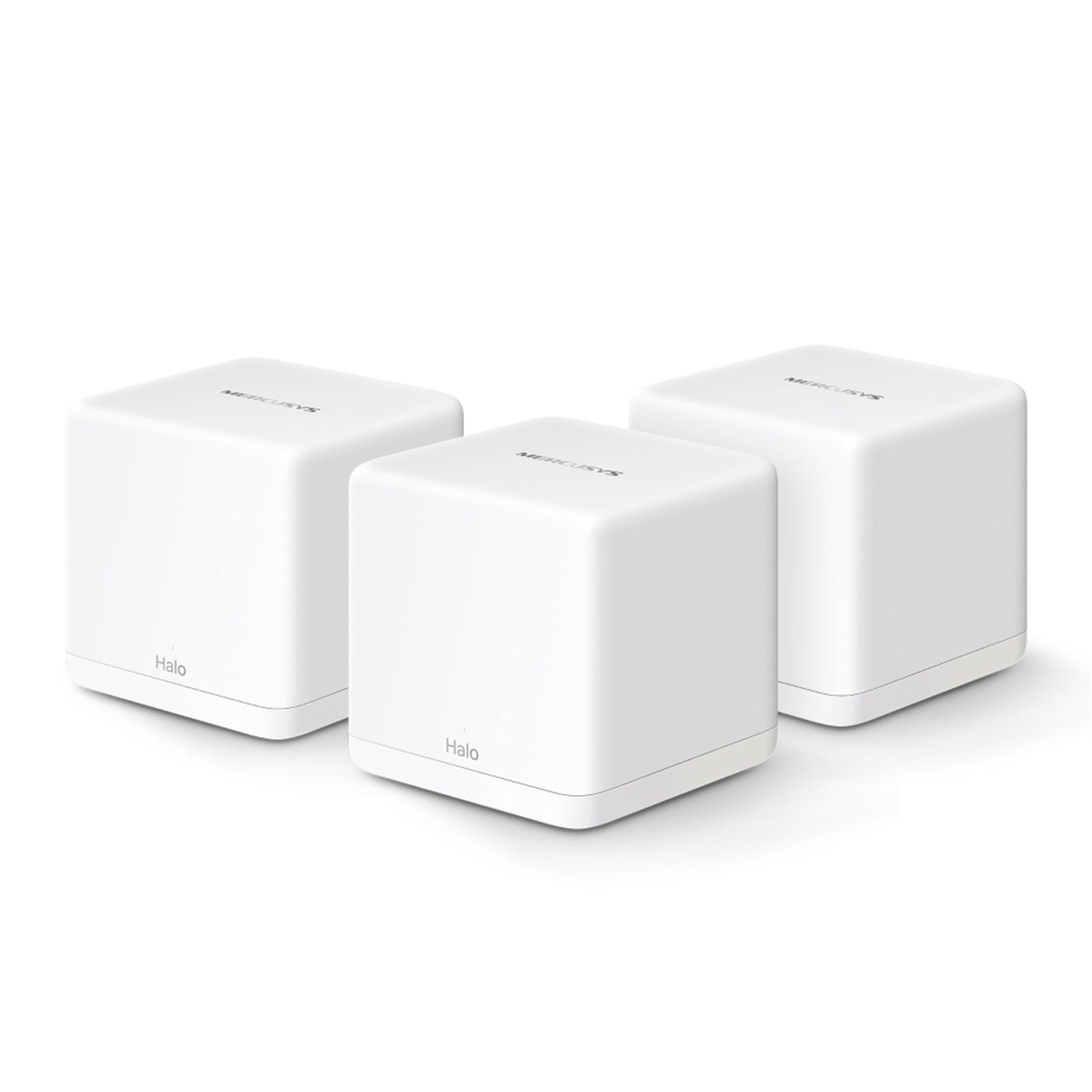

Mercusys Halo H60X AX1500 Whole Home Mesh Wi-Fi 6 System

The Mercusys Halo H60X delivers comprehensive Wi-Fi 6 coverage across your entire home with a 3-pack mesh configuration. This dual-band system provides combined speeds up to 1500 Mbps, with 1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, ensuring reliable connectivity for modern households.

Complete Home Coverage

Designed to eliminate dead zones, the H60X blankets up to 6,000 square feet (550 m²) with high-speed Wi-Fi. The three-unit mesh configuration works seamlessly together, automatically switching between nodes as you move throughout your home while maintaining a single unified network name and password. This seamless roaming capability is powered by 802.11k/v/r mesh protocols, ensuring uninterrupted connectivity.

High-Capacity Network Performance

Built to handle demanding network environments, the H60X supports over 100 connected devices simultaneously. Whether you're streaming 4K content, video conferencing, gaming, or managing smart home devices, the system maintains fast and stable connections across all your devices. Full Gigabit Ethernet ports on each unit provide lightning-fast wired connections for devices that require maximum performance.

Wi-Fi 6 Technology Benefits

The H60X leverages Wi-Fi 6 (IEEE 802.11ax) technology for improved efficiency and performance. This latest wireless standard delivers better performance in congested environments, reduced latency, and improved battery life for connected devices. The system maintains backward compatibility with 802.11ac/n/a/b/g standards, ensuring all your existing devices remain connected.

Simple Network Management

The MERCUSYS App provides straightforward setup and management of your home network. Configure your system in minutes, monitor connected devices, and manage parental controls to regulate online time and content access for family members. The system supports both Router and Access Point operation modes, adapting to your specific network requirements.

Advanced Security Features

Network security is prioritized with WPA3 encryption support, alongside WPA-PSK and WPA2-PSK protocols. The integrated SPI Firewall provides additional protection against external threats. Guest network functionality on both 2.4 GHz and 5 GHz bands allows visitors to access the internet without compromising your main network security.

Technical Specifications

Wireless Standards: Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
Signal Rate: 1201 Mbps on 5 GHz, 300 Mbps on 2.4 GHz
Wireless Security: WPA-PSK/WPA2-PSK/WPA3
Mesh Protocol: 802.11k/v/r
Operation Modes: Router, Access Point
WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Protocols: IPv4 and IPv6
Dimensions: 3.5 x 3.5 x 3.5 in (88 x 88 x 88 mm)
Interfaces: H60XR: 3x Gigabit WAN/LAN Ports, H60XS: 2x Gigabit LAN Ports
Operating Temperature: 0°C~40°C (32°F~104°F)

Package Contents

1x Halo H60XR Unit, 2x Halo H60XS Units, 1x RJ45 Ethernet Cable, 3x Power Adapters, Quick Installation Guide

Note: The Halo H series and S series cannot work together.

• Product Type: Mesh System
• Included Nodes: 3
• Mesh Speed: AC1500
