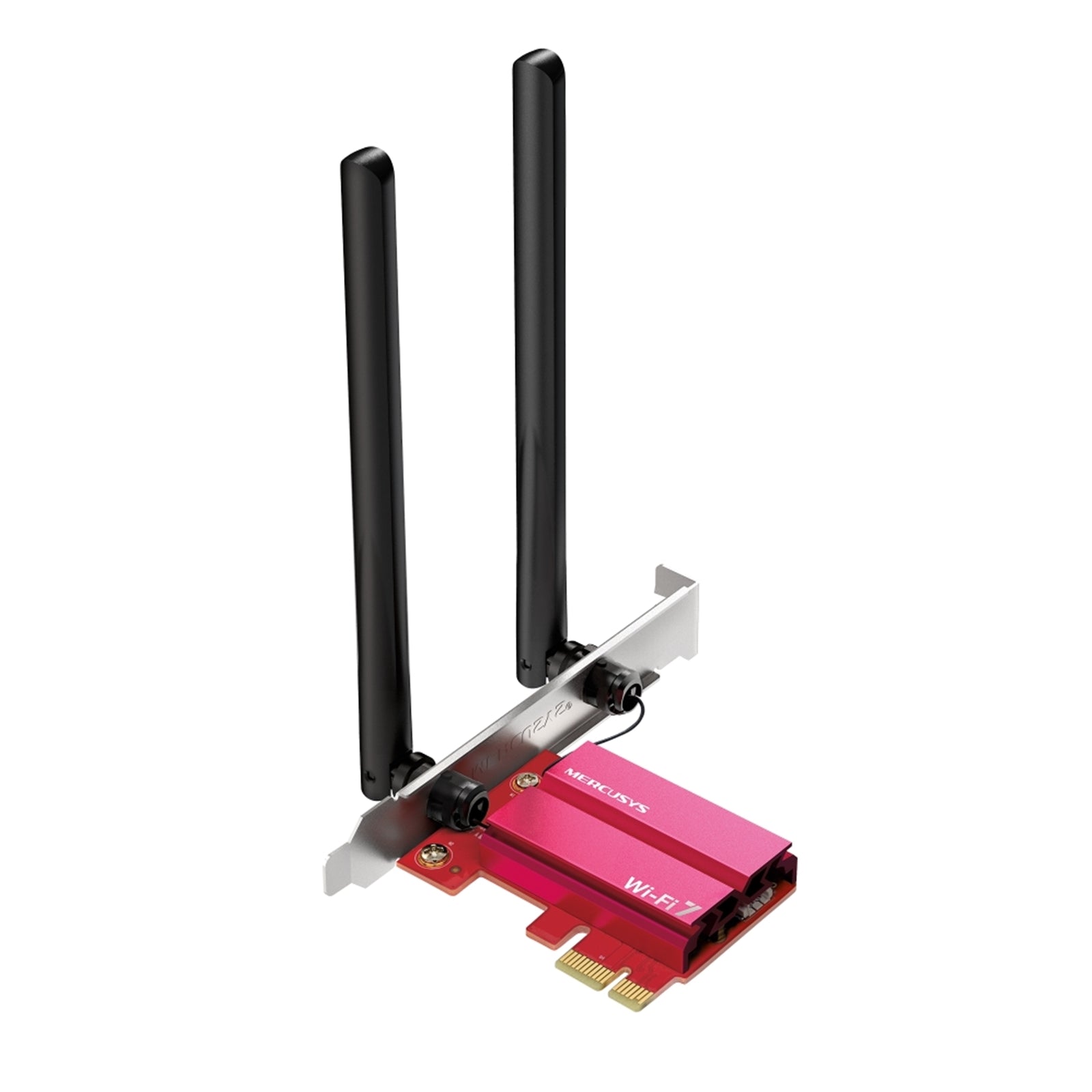

Mercusys MA37BE BE6500 WiFi 7 Bluetooth 5.4 PCIe Adapter

The Mercusys MA37BE delivers cutting-edge WiFi 7 technology to your desktop PC with tri-band connectivity across 6 GHz, 5 GHz, and 2.4 GHz frequencies. This PCIe adapter achieves combined speeds of 6452 Mbps, with 2882 Mbps on both 6 GHz and 5 GHz bands, plus 688 Mbps on 2.4 GHz.

WiFi 7 Technology with Multi-Band Performance

Built on IEEE 802.11be standard, the MA37BE supports simultaneous connections across all three bands. The adapter handles multiple devices with reduced latency and minimal network congestion, making it suitable for bandwidth-intensive applications like 4K streaming, online gaming, and large file transfers.

Bluetooth 5.4 Integration

The integrated Bluetooth 5.4 provides enhanced wireless connectivity for peripherals, offering improved speed, range, security, and reliability compared to previous Bluetooth versions. The included Bluetooth header cable ensures proper connection to your motherboard.

Hardware Specifications

Two fixed high-performance omnidirectional antennas provide consistent signal transmission and reception. The adapter measures 228 x 120.8 x 21.5 mm and installs via PCI Express interface. Note that the MA37BE is not compatible with low-profile brackets due to the fixed antenna design.

WPA3 Security Protocol

The adapter implements WPA3-SAE security alongside WPA-PSK and WPA2-PSK support, providing enhanced protection for network connections and personal password safety.

Reception Sensitivity

The MA37BE maintains strong reception across all bands:
6 GHz: -86 dBm to -56 dBm (11ax HE160)
5 GHz: -92 dBm to -59 dBm (11ac VHT80/11ax HE80)
2.4 GHz: -91 dBm to -60 dBm (11ax HE40)

System Requirements

Compatible exclusively with Windows 11 (64-bit). The adapter operates in temperatures from 0°C to 40°C with 10-90% non-condensing humidity.

Package Contents

BE6500 WiFi 7 Bluetooth 5.4 PCIe Adapter (MA37BE), Bluetooth Header Cable, Quick Installation Guide, and Resource CD included.

Specifications

Wireless
Wireless Standards
IEEE 802.11 ax/be 6 GHz
IEEE 802.11 a/n/ac/ax/be 5 GHz
IEEE 802.11 b/g/n/ax/be 2.4 GHz

WiFi Speeds
2882 Mbps on 6 GHz
2882 Mbps on 5 GHz
688 Mbps on 2.4 GHz

Reception Sensitivity
6 GHz:
11ax HE160 MCS0:-86 dBm
11ax HE160 MCS11:-56 dBm

5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm

2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm

Wireless Security
WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware
Dimensions
228 x 120.8 x 21.5 mm (9.0 x 4.8 x 0.85 in )

Antenna Type
2x Fixed High-Performance Omni-Directional Antennas

Others

Package Contents
BE6500 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter (MA37BE)
Bluetooth Header Cable
Quick Installation Guide
Resource CD

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

System Requirements
Compatible with Windows 11(64-bit)

• Internal/External: Internal
• Speed: 6500Mbps
• High-Gain Antenna: Yes
