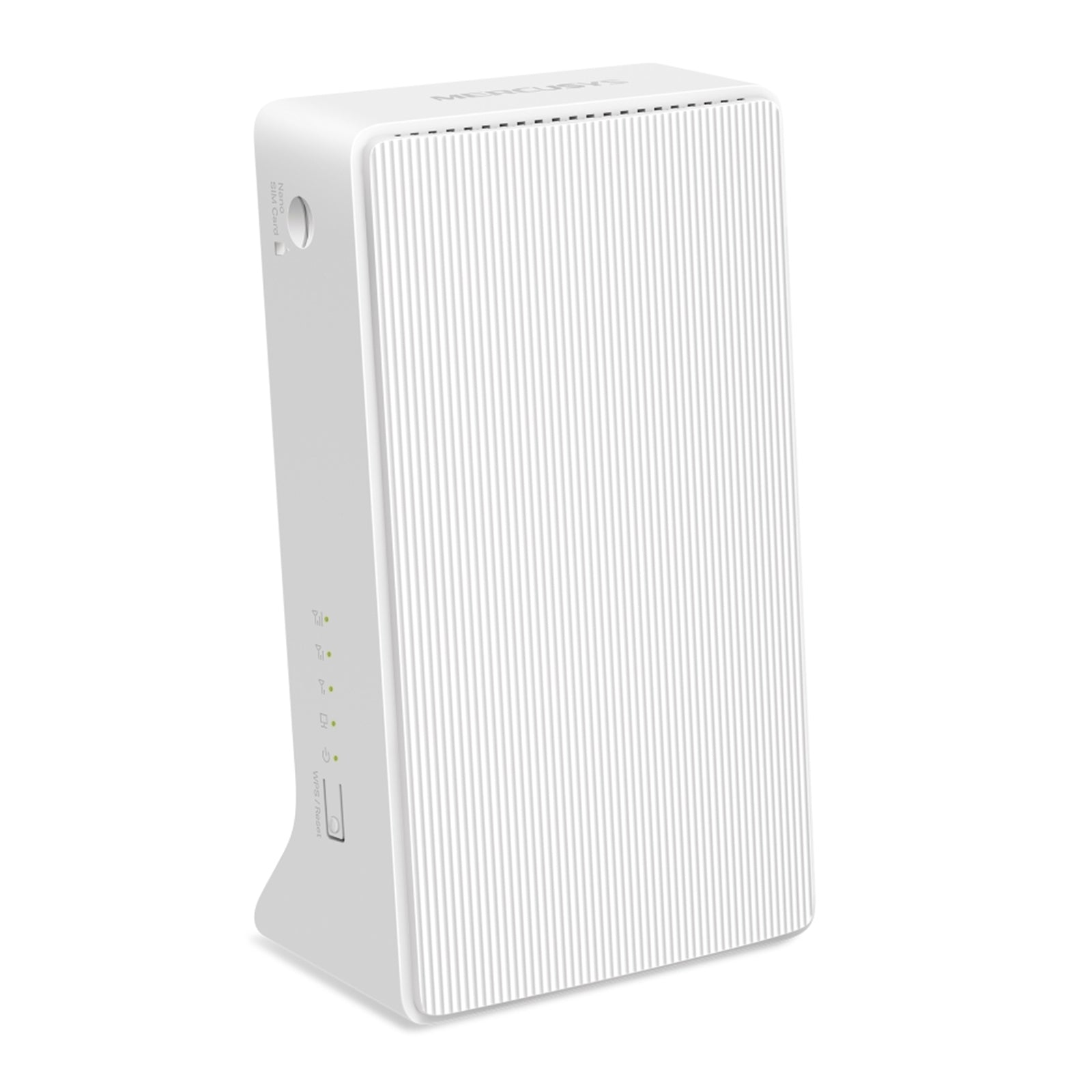

Mercusys MB110-4G 300Mbps Wireless N 4G LTE Router

The Mercusys MB110-4G delivers reliable 4G LTE internet connectivity with support for up to 32 wireless devices simultaneously. This router provides download speeds of up to 150Mbps on 4G networks, making it suitable for homes, offices, and locations where traditional broadband isn't available.

Key Features

4G LTE Connectivity - Insert a nano SIM card and get online immediately. The MB110-4G has been tested with numerous carriers to ensure broad compatibility, eliminating complicated configuration steps.

300Mbps Wireless Speed - The 2.4GHz wireless network delivers up to 300Mbps WiFi speeds, providing sufficient bandwidth for streaming, browsing, and connecting multiple devices throughout your space.

Dual-Mode Operation - The LAN/WAN port offers flexibility when 4G signal is unavailable. Connect an Ethernet cable to switch to wired internet mode, ensuring continuous connectivity regardless of circumstances.

Wide Network Compatibility - Supports multiple LTE bands including FDD-LTE B1/B3/B5/B7/B8/B20/B28 and TDD-LTE B38/B40, along with HSPA+/UMTS networks. The UN version includes additional bands for broader global coverage.

Technical Specifications

Wireless Standards: IEEE 802.11b/g/n operating at 2.4GHz frequency
Security: WPA-PSK and WPA2-PSK encryption protocols
Ports: 1x 10/100Mbps LAN/WAN port, 1x 10/100Mbps LAN port
Antennas: 2x external antenna ports for 4G/3G connectivity
Dimensions: 90 x 92 x 150.5mm

The router includes DHCP server functionality, wireless scheduling, WMM support, and WPS/Reset button for easy setup. Package includes the router, power adapter, RJ45 Ethernet cable, and quick installation guide.

4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests

300 Mbps WiFi – Fast WiFi speeds up to 300 Mbps to share your network

Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection


Specifications

Wireless

Wireless Standards
IEEE 802.11b/g/n

Frequency
2.4 GHz

Signal Rate
300 Mbps

Reception Sensitivity
11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm

Transmission Power
< 20 dBm (2.4 GHz)

Wireless Security
WPA-PSK / WPA2-PSK

Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

Software

DHCP
Server

Hardware

Dimensions (W x D x H)
90x92x150.5 mm

Interfaces
1x 10/100Mbps LAN/WAN Port
1x 10/100Mbps LAN Port
2x 4G/3G External Antenna Ports
1x Nano SIM Card Slot

Button
WPS/Reset Button

Ethernet Ports
1x 10/100 Mbps LAN/WAN Port +
1x 10/100 Mbps LAN

Network Type
EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

UN:
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 (2100/1900/1800/1700/850/2600/900/700/1700 MHz)
TDD-LTE: B40 (2300 MHz)
HSPA+/UMTS: B1/B2/B4/B5/B8 (2100/1900/1700/850/900 MHz)

Others

Package Contents
300 Mbps Wireless N 4G LTE Router (MB110-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

• Type: Router
• Speed: 300Mbps
• PoE: No
