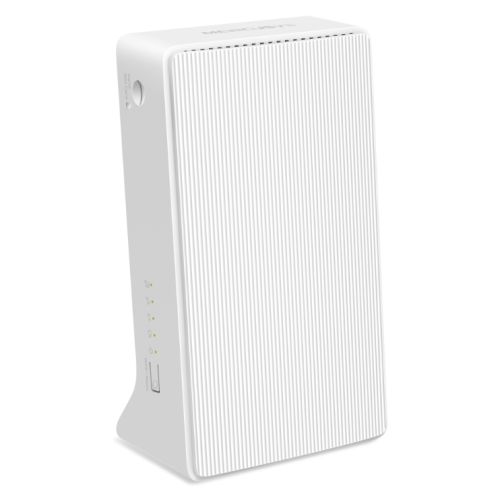

Mercusys MB110-4G 300Mbps Wireless N 4G LTE Router

The Mercusys MB110-4G transforms your 4G LTE connection into reliable WiFi for your home or remote workspace. This wireless router supports up to 32 simultaneous device connections and delivers 300Mbps WiFi speeds on the 2.4GHz band, making it suitable for streaming, gaming, and everyday internet use.

4G LTE Network Connectivity

Compatible with both FDD-LTE and TDD-LTE networks, the MB110-4G works with most service providers worldwide. Insert a nano SIM card, power on the router, and start sharing your 4G connection immediately. The router achieves download speeds up to 150Mbps and upload speeds up to 50Mbps through 4G LTE technology. Years of field testing ensure broad SIM card compatibility without complex configurations.

Flexible Connection Options

The MB110-4G includes a dual-purpose LAN/WAN port that provides backup connectivity options. When 4G coverage is unavailable, connect an Ethernet cable from your cable, fiber, or DSL modem to maintain internet access. The router features 1x 10/100Mbps LAN port, 1x 10/100Mbps LAN/WAN port, and 2x external antenna ports for enhanced signal reception.

Data Management and Control

Manage your network through the MERCUSYS mobile app for Android and iOS devices. The app provides comprehensive flow management features including a flow switch to control 4G network access, roaming switch for international use, and data limit settings with SMS alerts to prevent overspending. Monitor your data consumption and control network access directly from your smartphone.

Network Security and Configuration

The router supports WPA-PSK and WPA2-PSK encryption protocols to secure your wireless network. Additional features include wireless scheduling, WMM support, DHCP server functionality, and a WPS/Reset button for quick setup. IEEE 802.11b/g/n standards ensure compatibility with all standard WiFi devices.

Technical Specifications

• Type: 4G Router
• Connectivity: Wireless
• Wi-Fi Rating: N300
• Max Single Band Wi-Fi Rate: 300 Mbps
• Max Wired Transfer Rate: 10/100 Mbps
• Bands: Single Band
• Signal Rate: 2.4GHz: up to 300Mbps
  4G: up to 150Mbps download
• Interface(s): 1 x 10/100Mbps LAN
  1 x 10/100Mbps LAN/WAN
  1 x Nano SIM Card Slot
  2 x 4G/3G External Antenna Ports
• Standards: IEEE 802.11b/g/n
• Frequency: 2.4GHz
• Button(s): WPS/Reset Button
• Power Supply: Power Adapter
• Antenna(s): Internal high-gain antennas
• Dimensions: 95 x 61.05 x 165.97 mm
• Wireless Functions: "Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics"
• Security: WPA-PSK / WPA2-PSK
• DHCP: Server
• Management: MERCUSYS App
• USB Application: -
• Additional Features: See Overview
• Environment: Operating Temperature: 0°C~40°C
  Storage Temperature: -40°C~60°C
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: 300 Mbps Wireless N 4G LTE Router (MB110-4G)
  Power Adapter
  RJ45 Ethernet Cable
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 0.5400 kg
• Warranty: 3 Years
• #Hide#Wireless Standard: Wi-Fi 4 (802.11n)
