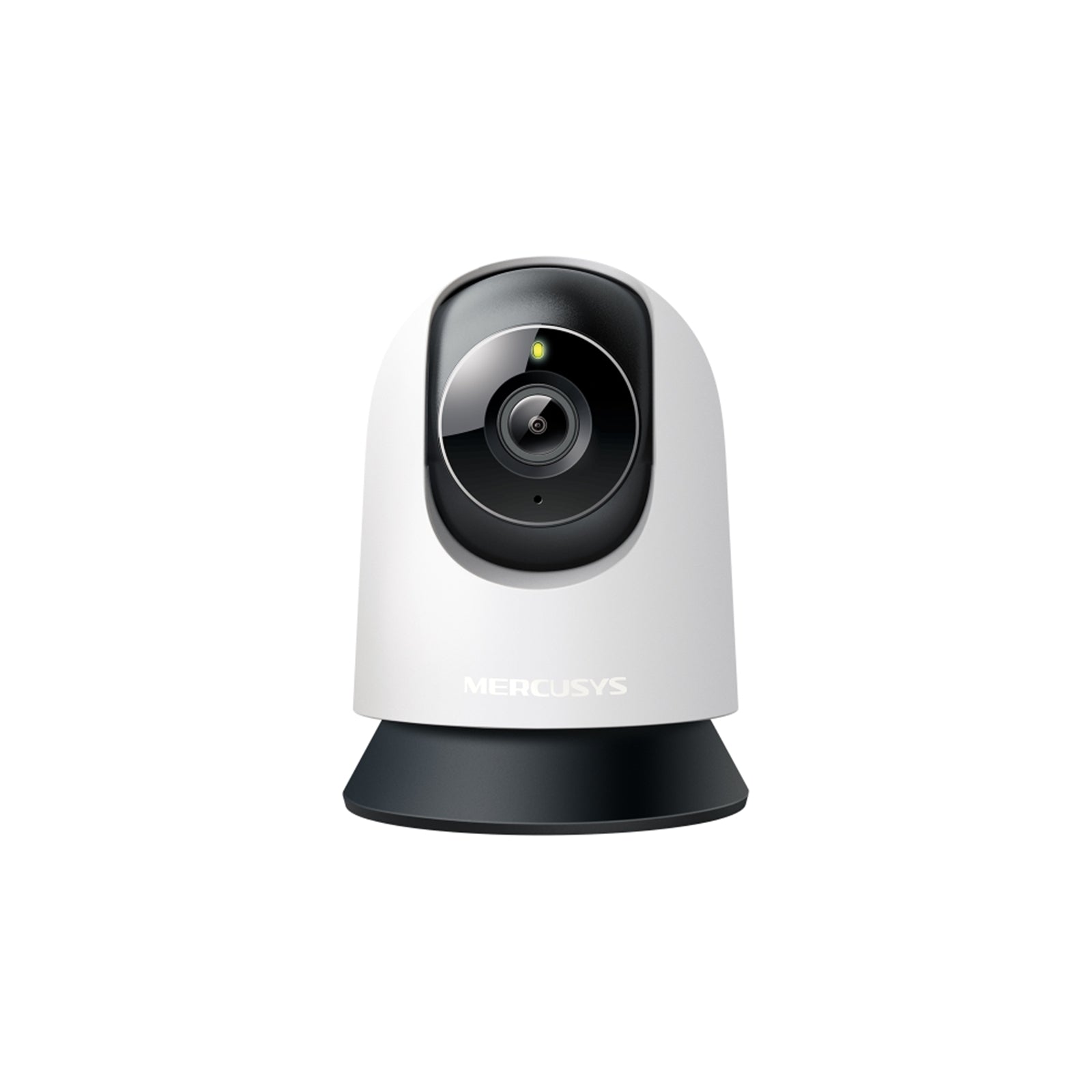

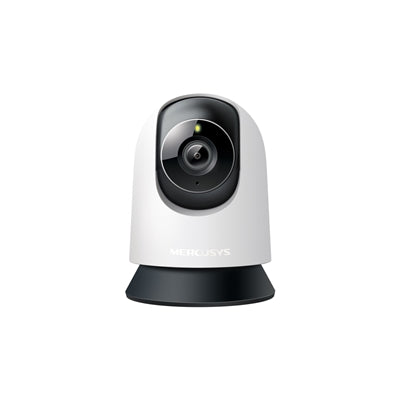

Mercusys MC210 Pan/Tilt Home Security Wi-Fi Camera

The Mercusys MC210 delivers comprehensive home monitoring with 2K 3MP high-definition video quality. This pan/tilt camera provides 360-degree horizontal coverage and 110-degree tilt range, ensuring complete visibility of any room without blind spots.

Advanced Detection and Monitoring

Equipped with AI-powered smart detection, the MC210 identifies motion, recognizes people, and detects baby crying sounds. The camera automatically tracks movement 24/7, keeping subjects in frame. Instant notifications alert you to detected activity through the mobile app, providing real-time awareness of your home environment.

Clear Vision Day and Night

The 4mm lens with F2.0 aperture captures detailed footage at 2304 x 1296 pixel resolution. Advanced 850nm infrared LEDs provide night vision up to 40 feet, enabling round-the-clock monitoring in complete darkness. The camera supports 10.8x digital zoom for closer inspection of specific areas.

Interactive Two-Way Communication

Built-in microphone and speaker enable real-time two-way audio communication. Talk to family members, interact with pets, or deter unwanted visitors through the 88dB siren. The system integrates with Google Assistant and Amazon Alexa for hands-free voice control.

Flexible Storage Options

Store footage locally using microSD cards up to 512GB, eliminating recurring subscription costs. Alternatively, utilize Mercusys Camera Care Cloud Storage Services for off-site backup. Customizable activity zones and privacy block zones let you tailor monitoring to specific areas while respecting privacy boundaries.

Easy Installation and Connectivity

Connect via standard Wi-Fi networks supporting 802.11b/g/n protocols. The camera operates on 9V DC power and mounts on tabletops or ceilings using included hardware. RTSP and ONVIF protocol support ensures compatibility with third-party systems and NVR platforms.

High-Definition Video
Features 2K 3MP high-definition video, providing users with clear and detailed footage.

Pan and Tilt
Offers 360 degrees horizontal, enabling complete coverage of the area.

Smart Detection
Smartly tracks motion 24/7, ensuring subjects stay in view, even in complete darkness with night vision. Receive instant alerts for detected motion, people, or a baby's cries.

Night Vision
With advanced night vision up to 40 ft, MC210 allows users to monitor their homes around the clock.

Two-Way Audio
Hear and respond in real time through a built-in microphone and speaker. Interact with your family and pets at any time.

Free Local Storage
Supports microSD card up to 512 GB for local storage, providing a secure and cost-effective way to store footage.

Cloud Storage Supported
Store videos with MERCUSYS cloud storage services.

Customizable Block Zone
Tailor your privacy zone to block unwanted views with ease.

Voice Control
Compatible with Google Assistant and Amazon Alexa, offering hands-free control for users.

Specifications

Camera

Image Sensor
1/3"Progressive Scan CMOS Not Starlight Sensor

Lens
Focal Length: 4 mm
Aperture: F2.0
Field of View: 87 degrees (Diagonal), 74 degrees(Horizontal), 40 degrees(Vertical)

Motion Range
Pan Mechanical Range: 340 degrees (360 degrees Pan Coverage)
Tilt Mechanical Range: 70 degrees (110 degrees Tilt Coverage)

Night Vision
850 nm IR LED (40 ft / 12 m)

Interface & Button
1x RESET Button
1x MicroSD Card Slot (Up to 512 GB)

Video & Audio

Maximum Resolution
2304 x 1296 px

Frame Rate
15/20/25/30 fps ( 15fps by default)

Digital Zoom
Supports 10.8x zoom

Video Compression
H.264

Live View
Yes

Image Enhancement
NO

Audio Input & Output
Built-in microphone and speaker

Audio Communication
2-way audio

Siren Volume
88dB (Level measured at 4-inch/10-cm distance)

Storage

Local Storage
Micro SD card slot
(Supports up to 512GB)

Cloud Storage
MERCUSYS Camera Care Cloud Storage Services (Subscription required)

Software
Security

Detection & Notifications

Sensor
NO

AI Detection
Motion detection
Person Detection
Baby Crying Detection

Activity Zones
Yes
*Only works with Motion Detection.

Output Notification
System Notification

Network
Network Connectivity
Connect via Wi-Fi

Wireless Connectivity
11Mbps(802.11b)
54Mbps(802.11g)
72.2Mbps(802.11n)

Max. Distance Between Hub and Camera/Doorbell
NO

RTSP
Yes

ONVIF
Yes

Power

Power Source
9V DC Power Adapter

Input Voltage
100-240VAC, 50/60Hz, 0.3A

Output Voltage
9.0V/0.6A

General
Smart Integration
Google Assistant, Amazon Alexa

Weather Resistance
NO

Mounting Options
Tabletop
Ceiling-Mounted

Operating Temperature
0 oC ~ 40 oC (32°F ~ 104°F )
Storage Temperature
-40°C~60°C (-40°F~140°F)
Operating Humidity
10%~90%RH, Non-condensing
Storage Humidity
0%~90%RH, Non-condensing

Charging Temperature
NO

Dimensions ( W x D x H )
78.4 x 78.4 x 105.6 mm
(3.09 x 3.09 x 4.16 in)

Others

Certifications
CE, NCC, BSMI, NTRA, KC, RCM, ONVIF

Package Contents
Pan/Tilt Home Security Wi-Fi Camera (MC210) x 1
Power Adapter x 1
Mounting Anchors x 2
Mounting Screws x 2
Mounting Template Sticker x 1
Quick Start Guide

• Bullet/Dome: Dome
• SD Card Slot: Yes
• Resolution: 3mp
• Lens Size: 4mm
