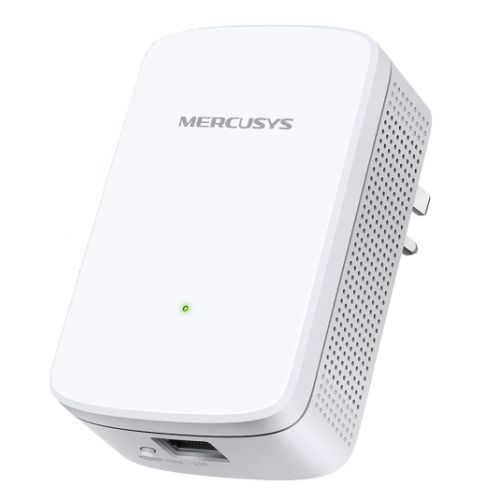

Mercusys ME10 300Mbps WiFi Range Extender

The Mercusys ME10 WiFi Range Extender eliminates wireless dead zones by boosting your existing network signal to previously unreachable areas. This compact wall-plug device delivers speeds up to 300 Mbps on the 2.4 GHz band, providing stable connectivity for streaming, gaming, and everyday browsing throughout your home or office.

One-Touch WPS Setup

Installation takes seconds with the built-in WPS button. Press WPS on your router, then on the ME10, and your extended network is ready. The multicolor LED signal indicator helps you identify the optimal placement location for maximum coverage, ensuring you get the strongest possible signal extension.

Dual Functionality: Range Extender and Access Point

The ME10 operates in two modes. As a range extender, it amplifies your existing WiFi signal. In Access Point mode, connect an Ethernet cable from your wired internet connection to transform the ME10 into a wireless access point, creating a WiFi network where only wired connections existed before.

Wired Connectivity Option

The integrated 10/100 Mbps Ethernet port provides a wired connection option for devices like gaming consoles, smart TVs, or desktop computers that benefit from stable, direct network access. This versatility makes the ME10 suitable for both wireless extension and wired device connectivity.

Universal Compatibility

IEEE 802.11b/g/n compatibility ensures the ME10 works with virtually any router or wireless access point on the market. WPA-PSK and WPA2-PSK security protocols protect your extended network with the same encryption standards as modern routers.

Compact Wall-Plug Design

At just 101 x 60 x 36 mm and consuming approximately 3.2W of power, the ME10 plugs directly into any standard wall outlet without blocking adjacent sockets. The minimalist design blends into any environment while the signal indicator provides at-a-glance connection status.

Description

Specification

• Primary Function: Range Extender
• #Hide#Access Point Mode: Yes (Access Point Mode)
• #Hide#Range Extender Mode: Yes (Range Extender Mode)
• #Hide#Wireless Standard: 802.11n (Wi-Fi 4)
• Bands: Single Band
• Wi-Fi Rating: N300
• Max Single Band Wi-Fi Rate: 300 Mbps
• Max Wired Transfer Rate: 10/100 Mbps
• Interface(s): 1 x 10/100Mbps RJ45 Port
• Wireless Standards: IEEE 802.11b/g/n 2.4 GHz
• Button(s): Reset/WPS Button
• Power Supply: Wall Plug
• Power Consumption: About 3.2W
• Dimensions: 101 x 60 x 36 mm
• Weatherproof: No
• Frequency: 2.4 - 2.5 GHz
• Reception Sensitivity: 2.4GHz:
  11B 1M < -94 dBm
  11N HT40 MCS7 < -72 dBm
• Wireless Modes: Range Extender / Access Point
• Security: WPA-PSK/WPA2-PSK
• Additional Features: See Overview
• Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
  Operating Humidity: 10%~90% Non-Condensing
• Package Contents: Wi-Fi Range Extender (ME10)
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 0.1800 kg
• Warranty: 3 Years
