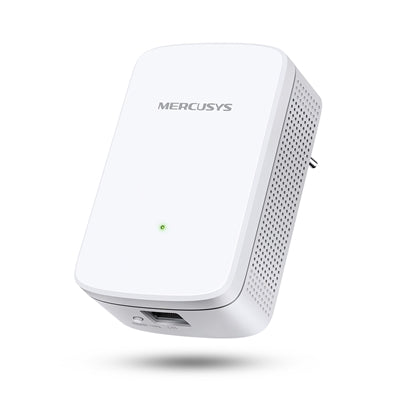

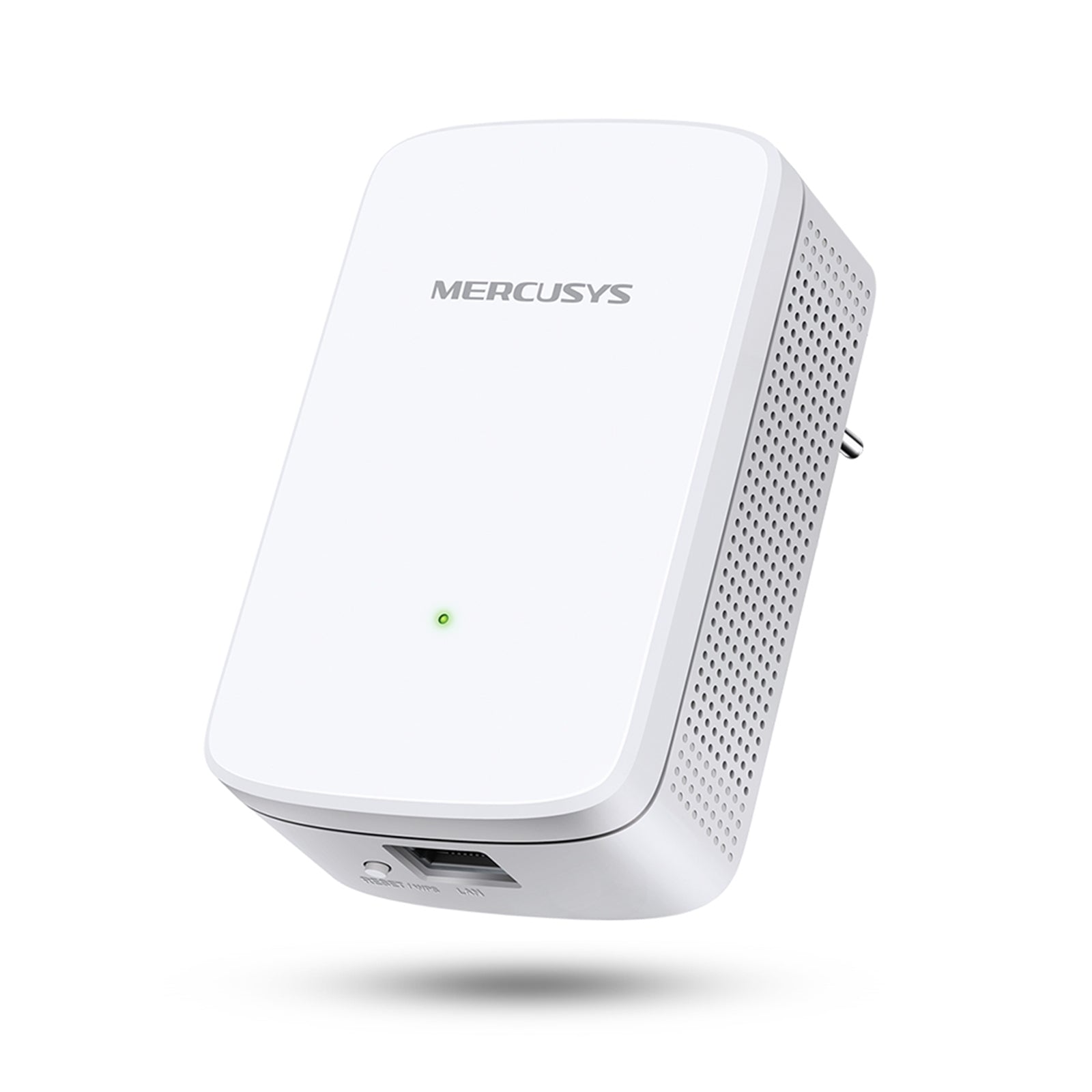

Mercusys ME10 N300 Wi-Fi Range Extender - 300Mbps

The Mercusys ME10 extends your wireless network coverage to eliminate dead zones throughout your home or office. This compact range extender delivers up to 300Mbps WiFi speeds on the 2.4GHz band, providing reliable connectivity for everyday internet activities including browsing, streaming, and online gaming.

Eliminate WiFi Dead Zones

Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly. The ME10 captures your existing wireless signal and rebroadcasts it to extend coverage to rooms and spaces where your router's signal doesn't reach.

300Mbps Wireless Performance

Compatible with IEEE 802.11b/g/n standards, the ME10 provides fast and stable extended WiFi up to 300Mbps. This bandwidth meets the needs of daily internet usage for multiple devices including smartphones, tablets, laptops, and smart home devices.

One-Touch WPS Setup

Simply press the WPS button on your router, then press the WPS button on the ME10 to expand your WiFi coverage in seconds. No complex configuration required - the extender automatically connects to your network.

Signal Strength Indicator

The multicolor LED signal indicator helps you find the optimal location for placement. Position the ME10 where the LED shows the strongest signal from your router for maximum WiFi extension performance.

Fast Ethernet Port

The 10/100Mbps Ethernet port provides wired connections for devices that benefit from stable, direct network access including desktop computers, IPTV boxes, and gaming consoles.

Universal Compatibility

Works with any router or wireless access point. The ME10 supports WPA-PSK/WPA2-PSK wireless security protocols to keep your extended network protected.

Technical Specifications

• Wireless Standards: IEEE 802.11b/g/n 2.4GHz
• WiFi Speed: Up to 300Mbps
• Frequency Range: 2.4 - 2.5GHz
• Ethernet Port: 10/100Mbps RJ45
• Security: WPA-PSK/WPA2-PSK
• Dimensions: 101 x 60 x 36mm
• Power Consumption: ≤ 3.2W
• Operating Temperature: 0°C~40°C

Package Contents

Wi-Fi Range Extender (ME10), Quick Installation Guide

Specifications

Wireless

Wireless Standards
IEEE 802.11b/g/n 2.4 GHz

Frequency
2.4 - 2.5 GHz

WiFi Speeds
Up to 300 Mbps

Reception Sensitivity
2.4GHz:
11B 1M < -94 dBm
11N HT40 MCS7 < -72 dBm

Transmission Power
= 20 dBm

Wireless Security
WPA-PSK/WPA2-PSK

Hardware

Dimensions
101 x 60 x 36 mm

Interfaces
10/100Mbps RJ45 Port

Button
RESET/WPS Button

Power
= 3.2 W

Others
Certifications
CE, RoHS

Package Contents
Wi-Fi Range Extender (ME10)
Quick Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing

• Connection Type: Range Extender
• Speed: 300Mbps
• Access Point: Yes
