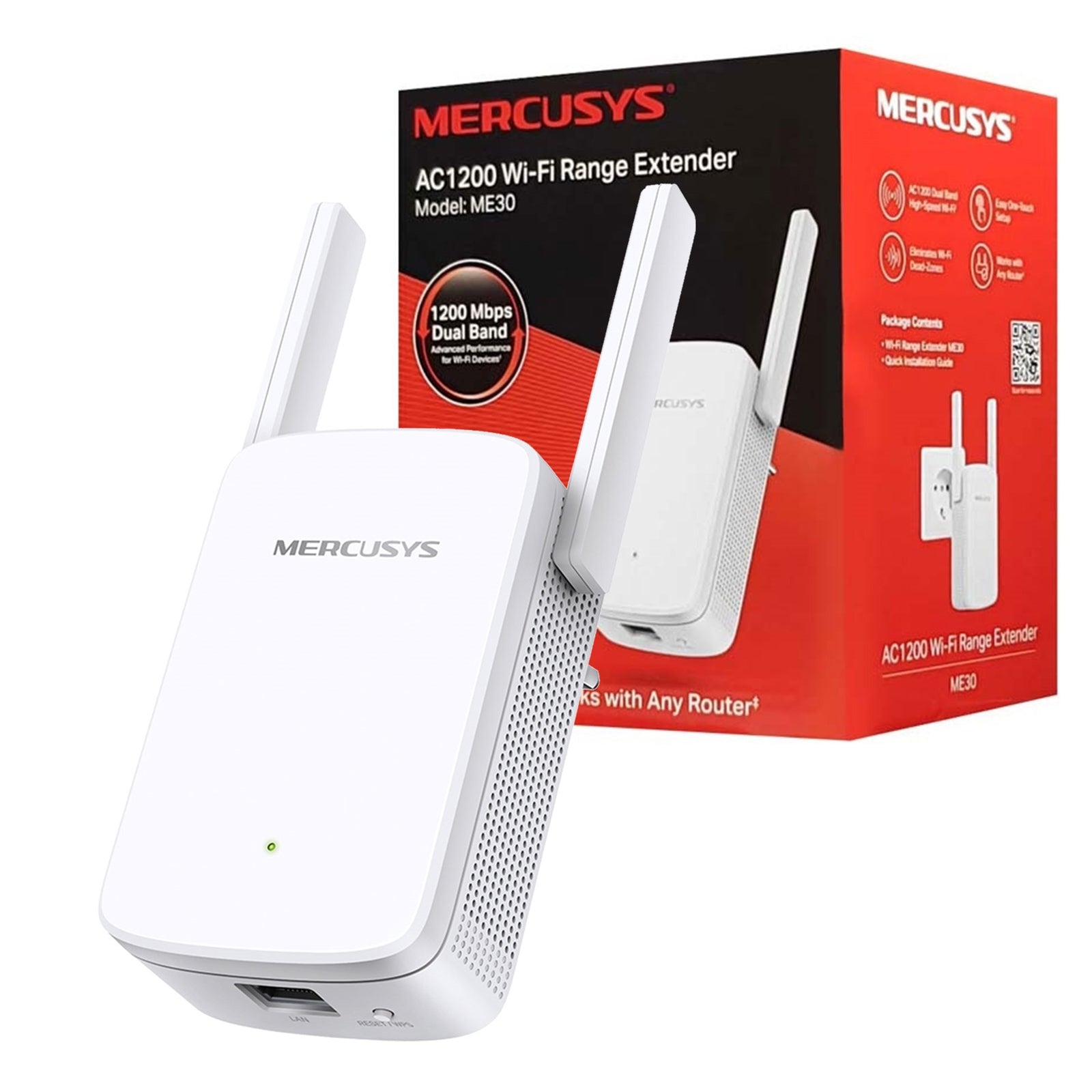

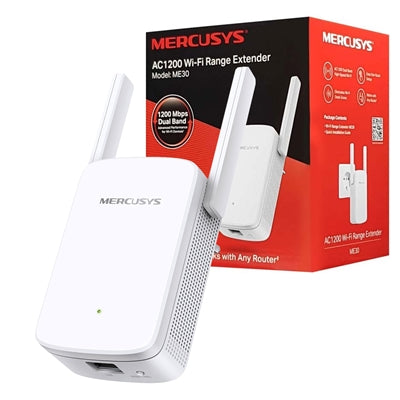

Mercusys ME30 AC1200 Wi-Fi Range Extender

The Mercusys ME30 eliminates WiFi dead zones by boosting signals to previously unreachable or hard-to-wire areas throughout your home. This wall-mounted range extender features adjustable high-gain antennas that expand your existing router's coverage with AC1200 dual band WiFi speeds.

AC1200 Dual Band Performance

Experience combined speeds up to 1200 Mbps with 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. This dual band capability ensures smooth 4K streaming and responsive online gaming across your extended network. The ME30 uses Adaptive Path Selection technology to intelligently choose the best available route and band for your data, keeping your network running at optimal speed.

Simple Installation with WPS

Setup takes seconds with one-touch WPS connectivity. Press the WPS button on your router, then press the WPS button on the ME30 to instantly expand your WiFi coverage. The multicolor LED signal indicator helps you identify the optimal location for placement, ensuring maximum WiFi extension throughout your space.

Wired Connectivity Option

The Fast 10/100 Mbps Ethernet port provides wired connections for devices like PCs, IPTVs, and game consoles that benefit from stable, direct connections. The ME30 also functions as an access point - simply connect your wired internet connection via Ethernet cable to transform it into a dual band WiFi access point.

Universal Compatibility

The ME30 works with any router or wireless access point, supporting IEEE 802.11a/n/ac on 5 GHz and IEEE 802.11b/g/n on 2.4 GHz standards. WPA-PSK/WPA2-PSK wireless security protocols keep your extended network protected.

Technical Specifications

Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency: 2.4 - 2.5 GHz, 5 GHz
Signal Rate: Up to 1200 Mbps (867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz)
Reception Sensitivity: 5 GHz: 11ac HT80 MCS9 < -63 dBm | 2.4 GHz: 11n HT40 MCS7 < -70 dBm
Transmission Power: < 20 dBm
Wireless Security: WPA-PSK/WPA2-PSK
Dimensions: 112 x 84.7 x 39mm
Interfaces: 1x 10/100Mbps RJ45 Port
Button: RESET/WPS Button
Antenna Type: 2x External Antennas
Power Consumption: 9.2 W

• Connection Type: Range Extender
• Speed: 1200Mbps
• Access Point: Yes
