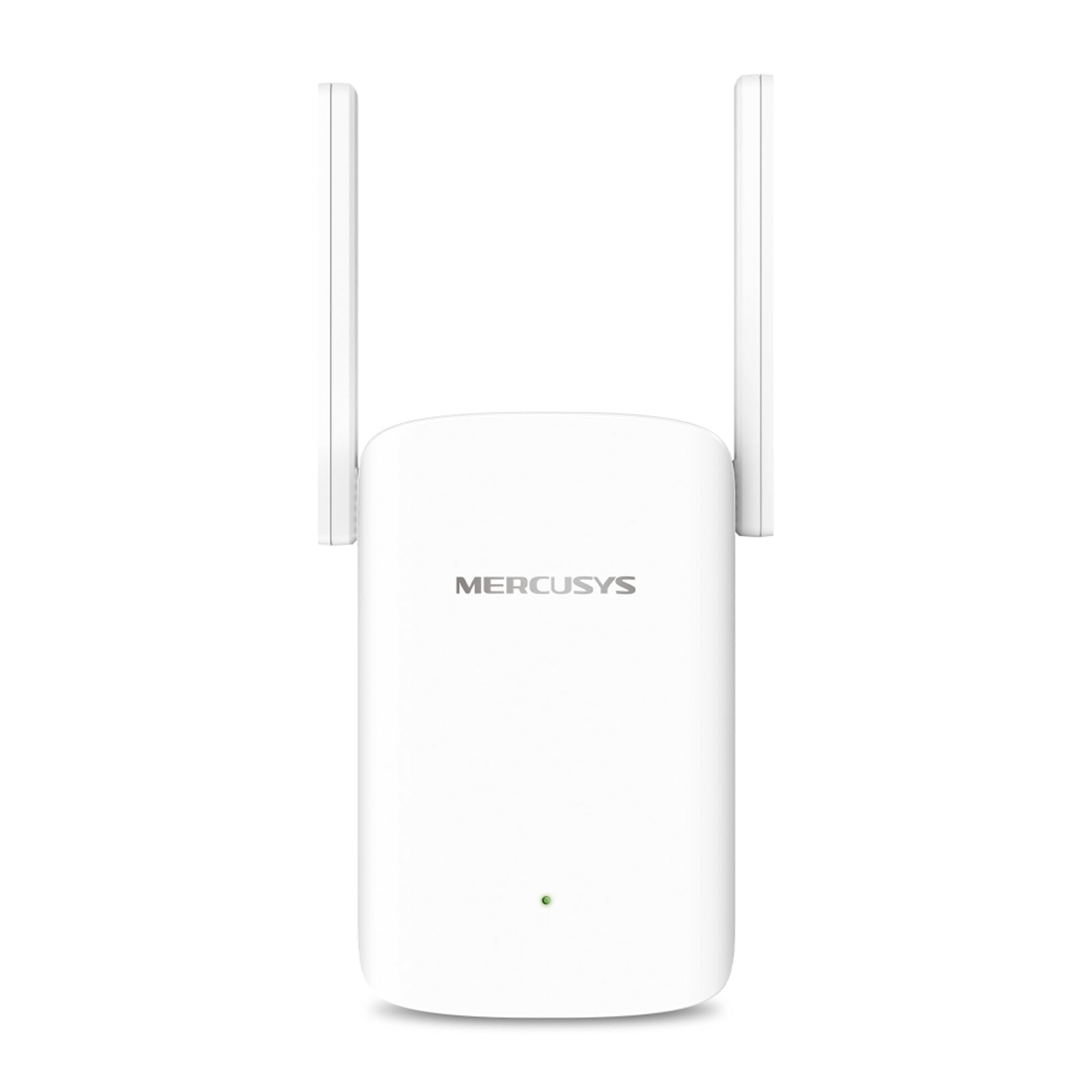

Mercusys ME60X AX1500 Wi-Fi 6 Range Extender

The Mercusys ME60X delivers AX1500 dual-band wireless coverage with Wi-Fi 6 technology, providing combined speeds of up to 1500 Mbps across your home or office. This range extender operates on both 2.4 GHz (300 Mbps) and 5 GHz (1201 Mbps) frequencies to eliminate dead zones and extend your existing network coverage.

Wi-Fi 6 Technology for Enhanced Performance

Built with IEEE 802.11ax standard, the ME60X leverages Wi-Fi 6 capabilities to improve network speed, efficiency, and capacity. This next-generation wireless technology handles multiple devices simultaneously while reducing latency and congestion, making it suitable for streaming, gaming, and video conferencing.

Gigabit Ethernet Port for Wired Connections

The integrated Gigabit Ethernet port provides high-speed wired connectivity for devices like gaming consoles, smart TVs, and desktop computers. This wired option ensures stable connections for bandwidth-intensive applications that require consistent performance.

Dual Operating Modes

The ME60X functions in two modes: Range Extender mode to boost your existing Wi-Fi signal, or Access Point mode to create a new wireless network from a wired connection. This flexibility allows you to configure the device based on your specific networking requirements.

Simple Setup and Management

One-touch WPS button setup enables quick installation without complex configuration. The device works with any standard router, regardless of brand. Manage your network remotely through the Mercusys app on iOS or Android devices, allowing you to monitor connections and adjust settings from anywhere.

Advanced Security Features

WPA3-PSK encryption provides enhanced security protection for your extended network, alongside support for WPA and WPA2 protocols. This ensures your wireless connections remain protected against unauthorized access.

Compact Design with External Antennas

Measuring 84.7 x 39 x 112 mm, the ME60X features a compact form factor with two external antennas for optimal signal distribution. The device operates efficiently at 10W power consumption within temperature ranges of 0°C to 40°C.

Specifications

Wireless

Wireless Standards
IEEE 802.11a/n/ac/ax 5GHz,
IEEE 802.11b/g/n 2.4GHz

Frequency
2.4GHz and 5GHz

Signal Rate
300 Mbps at 2.4GHz, 1201 Mbps at 5GHz

Reception Sensitivity
5 GHz:
11ax HE80 MCS0: -88 dBm
11ax HE80 MCS11: -58 dBm
11a 6Mbps: -94 dBm
11a 54Mbps: -76 dBm
11ac VHT80 MCS0: -91dBm
11ac VHT80 MCS9: -63dBm
2.4 GHz:
11g 6Mbps: -95 dBm
11g 54Mbps: -77 dBm
11n HT40: -72dBm

Wireless Security
WPA, WPA2, WPA3-PSK

Hardware

Dimensions (W X D X H)
84.7 x 39 x 112 mm (Without Plug)

Interfaces
1 Gigabit Ethernet Port

Button
WPS / Reset Button

Antenna Type
2x External Antennas

Power Consumption
10W

Others

Certifications
RoHS

Package Contents
Wi-Fi Range Extender ME60X
Quick Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing

• Connection Type: Range Extender
• Speed: 1500Mbps
• Access Point: Yes
