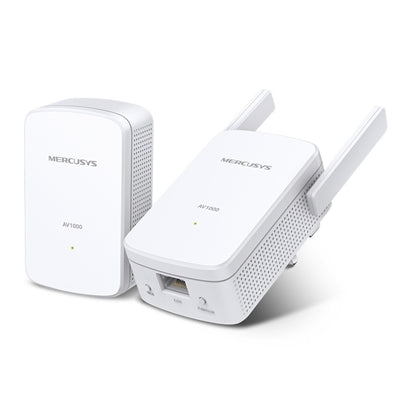

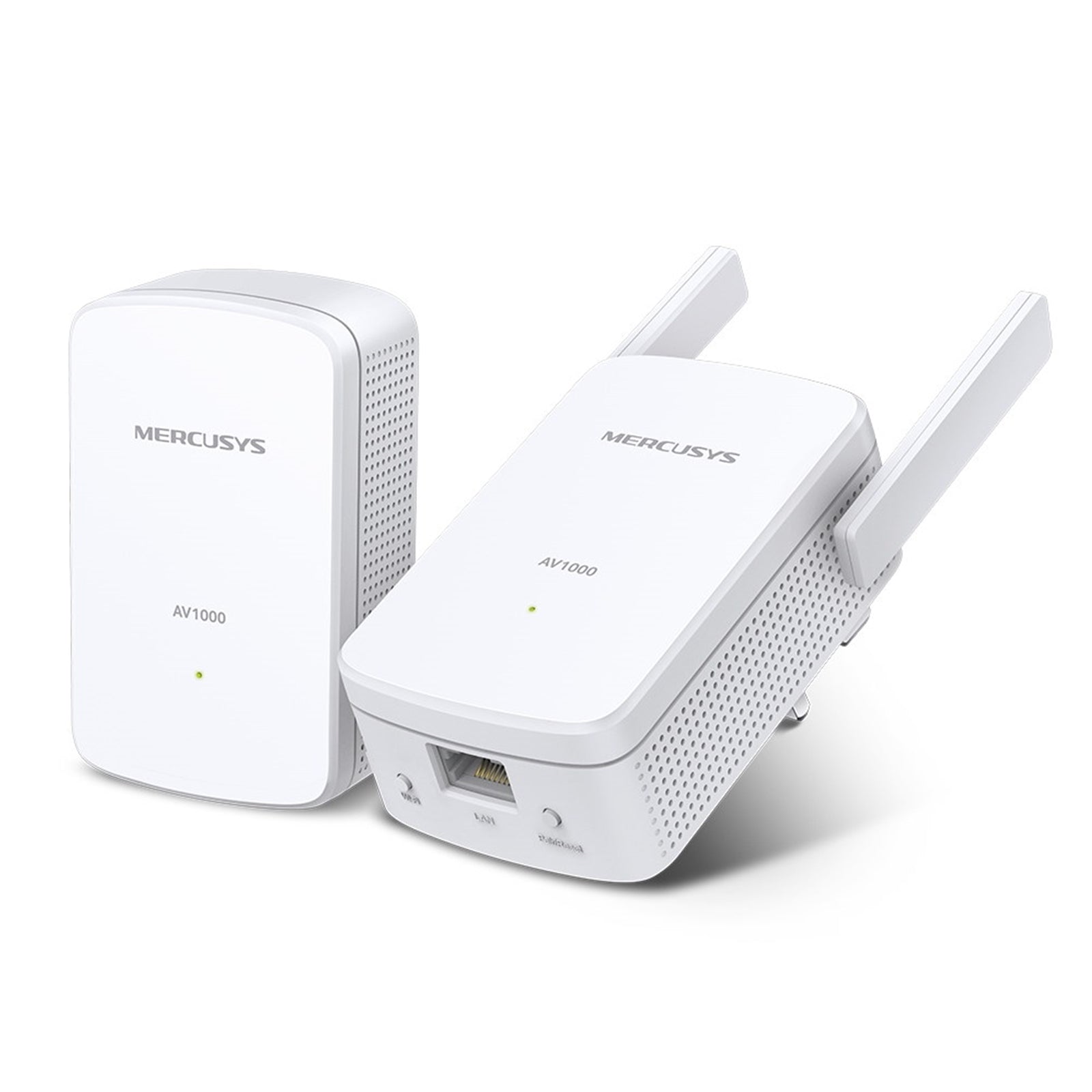

Mercusys MP510 KIT AV1000 Powerline WiFi Extender

The Mercusys MP510 KIT delivers reliable network connectivity through your home's existing electrical wiring. This powerline starter kit includes one MP510 WiFi extender and one MP500 adapter, providing 1000 Mbps HomePlug AV2 powerline speeds combined with 300 Mbps wireless N WiFi extension capabilities.

Advanced HomePlug AV2 Technology

Equipped with HomePlug AV2 technology, the MP510 KIT achieves powerline transmission rates up to 1000 Mbps. This high-speed performance ensures stable data transfer for bandwidth-intensive activities including HD streaming, online gaming, and large file transfers. The gigabit ethernet port on each adapter provides wired connectivity for devices requiring maximum stability.

Extended WiFi Coverage

The MP510 extender broadcasts 300 Mbps wireless N WiFi, effectively eliminating dead zones throughout your property. With a transmission range of up to 300 meters over existing electrical circuits, the kit reaches areas where traditional WiFi routers struggle. The network signal bypasses physical obstacles by traveling through your electrical wiring, ensuring consistent coverage across multiple floors and thick walls.

Simple Installation Process

Factory pre-configuration enables immediate deployment without technical expertise. Connect the MP500 adapter to your router via ethernet cable and plug it into a power outlet. Place the MP510 extender in any outlet where WiFi coverage is needed. The adapters automatically establish a secure powerline connection, extending your network within seconds.

Flexible Network Expansion

The system supports easy expansion by adding compatible Mercusys powerline adapters to your network. Each additional adapter extends coverage to new areas, creating a comprehensive whole-home network solution. Full compatibility with HomePlug AV and AV2 standards ensures interoperability with existing powerline devices.

Security Features

Wireless security includes WPA-PSK/WPA2-PSK, WPA/WPA2, and WEP encryption protocols. Powerline data transmission is protected by 128-bit AES encryption, securing your network traffic from unauthorized access.

Technical Specifications

Powerline Speed: 1000 Mbps (AV1000)
WiFi Speed: 300 Mbps (Wireless N)
Ethernet Ports: 1x Gigabit port per adapter
Range: Up to 300 meters on same electrical circuit
Standards: HomePlug AV2, IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n
Dimensions: MP510: 112 x 84.7 x 39 mm | MP500: 101 x 60 x 36 mm
Power Consumption: MP510: 4.29W typical | MP500: 2.35W typical
Plug Type: UK 3-pin

Package Contents

1x MP510 Powerline WiFi Extender
1x MP500 Powerline Adapter
RJ45 Ethernet Cables
Quick Installation Guide

Compatible with Windows 2000/XP/2003/Vista/7/8/8.1/10, Mac, and Linux operating systems. CE and RoHS certified.

• Pack Size: Twin Pack
• Speed: 1000Mbps
• Pass-Through: No
