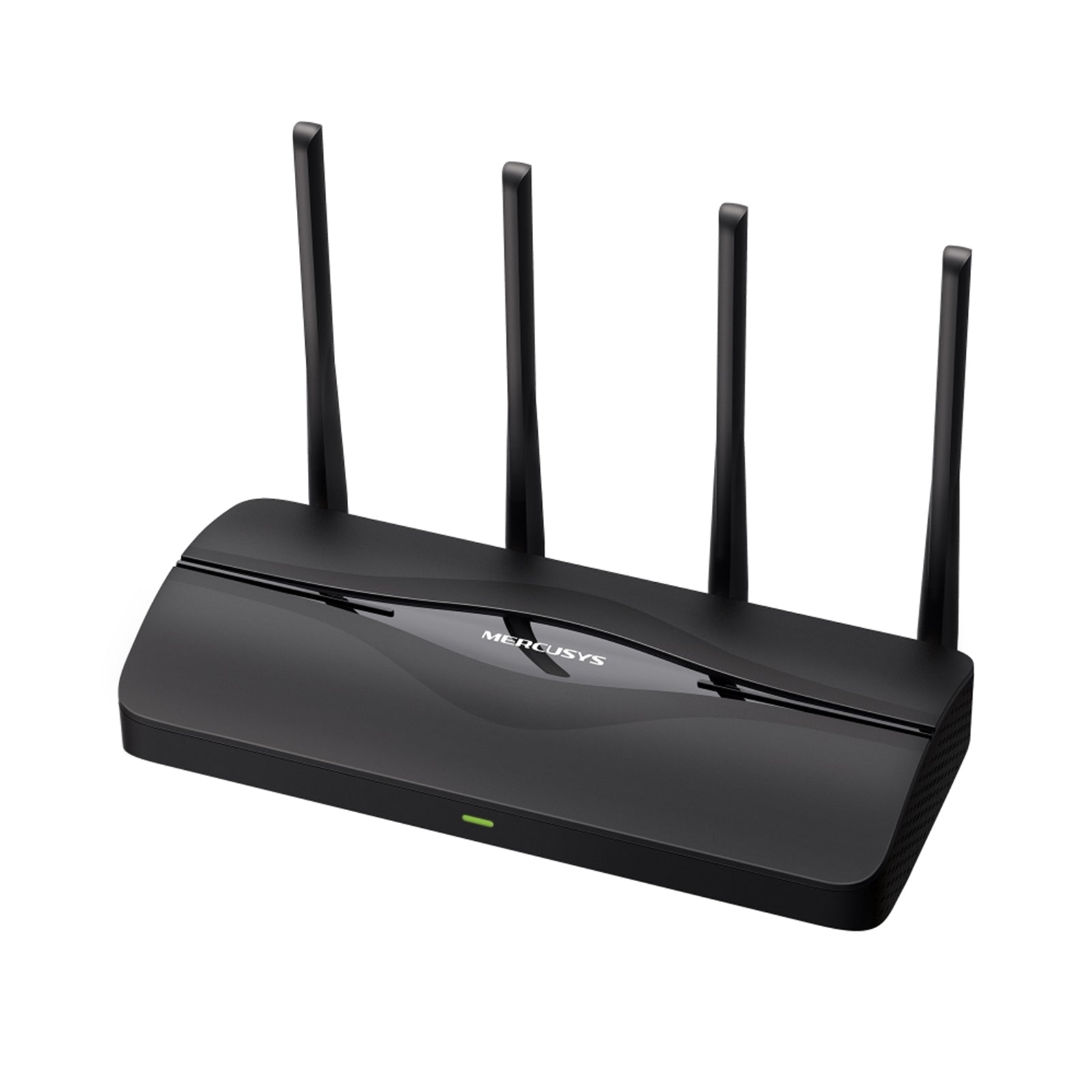

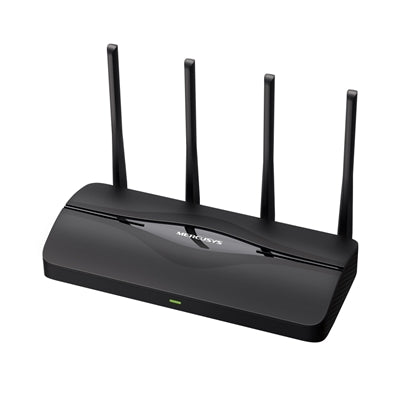

Mercusys MR27BE BE3600 Wi-Fi 7 Router

The Mercusys MR27BE delivers next-generation Wi-Fi 7 technology with BE3600 dual-band speeds reaching 3.6 Gbps combined (2880 Mbps on 5 GHz and 688 Mbps on 2.4 GHz). This router supports 802.11be alongside backward compatibility with 802.11ax/ac/a/b/g/n standards, ensuring seamless connectivity for all your devices.

Wi-Fi 7 Performance with Multi-Link Operation

Equipped with 160 MHz channel width and 4K-QAM modulation, the MR27BE maximizes throughput for demanding applications. Multi-Link Operation (MLO) technology increases bandwidth, reduces latency, and improves reliability for 4K/8K streaming, AR/VR gaming, and large file transfers. The router's advanced features include OFDMA, MU-MIMO, BSS Color, and Beamforming for optimized network efficiency.

2.5 Gigabit Ethernet Connectivity

Break through the 1G bottleneck with one 2.5 Gbps WAN port and one 2.5 Gbps LAN port, plus two additional 1 Gbps LAN ports. These multi-gig ports ensure your wired devices operate at peak performance, ideal for gaming PCs, NAS devices, and high-bandwidth workstations.

Extended Coverage and Mesh Capability

Four external antennas (two 5 GHz at 5dBi and two 2.4 GHz at 4dBi) provide robust coverage throughout your home. EasyMesh compatibility allows you to create a seamless whole-home mesh network by pairing with compatible routers and range extenders, eliminating dead zones and connection drops when moving between rooms.

Comprehensive Security and Network Management

WPA3 encryption, SPI Firewall, and Access Control protect your network. The router supports multiple VPN protocols (OpenVPN, PPTP, L2TP/IPSec, WireGuard) as both server and client, with Kill Switch functionality. Parental Controls include profile settings, time management, and website filtering. Manage everything through the MERCUSYS app or web interface with support for MERCUSYS ID cloud management.

Advanced Features

Router/AP mode operation, IPv4/IPv6 support, IPTV compatibility (IGMP Proxy/Snooping, Bridge, Tag VLAN), QoS priority control, Guest Network on both bands, IoT Network isolation, and Smart Connect for automatic band steering. DDNS support includes MERCUSYS, NO-IP, and DynDNS services.

Fast 3.6 Gbps Dual-Band Speeds
Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.

Newest WiFi 7
Armed with the 160 MHz channels, 4K-QAM, MLO, and other features that WiFi 7 offers, your network will arrive with a jaw-dropping performance.

Multi-Link Operation (MLO)
Increases throughput, reduces latency, and improves reliability for emerging applications.

2.5G Ports
1x 2.5 Gbps WAN port, 1x 2.5 Gbps LAN port and 2x 1 Gbps LAN ports break through the 1G bottleneck, driving your devices to peak performance.

Maximized Coverage
4x Omni directional antennas, proprietary Wi-Fi optimization, and Beamforming technology deliver broader coverage, more capacity, stronger and more reliable connections, and less interference.

EasyMesh-Compatible
Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.

Easy Setup and Use
Network management has never been easier with the MERCUSYS app.

Specifications

Wireless

Wi-Fi Class
BE3600

Wi-Fi (2.4 GHz)
688Mbps

Wi-Fi ( 5 GHz)
2880Mbps

Wireless Standards
802.11be/ax/ac/a/b/g/n

Max Channel Width
160MHz

Reception Sensitivity
5G:
11ac VHT20_MCS0:-97dBm, 11ac VHT20_MCS8:-75dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm
11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-66dBm
11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-63dBm
11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-59dBm
11be EHT20_MCS13:-61dBm
11be EHT40_MCS13:-59dBm
11be EHT80_MCS13:-55dBm
11be EHT160_MCS13:-52dBm

2.4G:
11ax HE20 MCS0:-97dBm,11ax HE20 MCS11:-68dBm
11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-65dBm
11be EHT20 MCS13:-61dBm,11be EHT40 MCS13:-59dBm

Max Wi-Fi Modulation
4K QAM

Wireless Security
WPA/WPA2/WPA3

Wireless Functions
Guest Network
IoT Network
Smart Connect
Wireless Schedule
WPS
AP Isolation
Airtime Fairness

Hardware

Dimensions
250 x 119 x 43.3 mm
(9.8 x 4.7 x 1.7 in)

Interfaces
1x 2.5G WAN
1x 2.5G LAN
2x GE LAN

Antenna
2x 5G External Antennas(5dBi)
2x 2.4G External Antennas(4dBi)

Button
1x WPS/ Reset Button

Installation
Desktop
Wall-mount

LED
1x SYS

Retail Package Dimension
328*261*74mm

Units per Carton
10

Carton Dimension
535*340*385mm

IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

Power
Input:100~240V, 50/60Hz
Output: 12V/1.5A

Software

Operation Mode
Router/AP mode

WAN Mode
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP

Protocols
IPv4
IPv6

Guest Network
2.4G Guest Network
5G Guest Network

Parental Controls
Profile Settings
Time Control
Pause the Internet
Website Filtering

DHCP
Address Reservation
DHCP Client List
Server

DDNS
MERCUSYS
NO-IP
DynDNS

VPN Server
OpenVPN
PPTP
L2TP/IPSec
WireGuard

VPN Client
OpenVPN
PPTP
L2TP/IPSec
WireGuard

Easymesh
Easymesh Compatible

QoS
Time Settings
Priority Control

Security
SPI Firewall
Access Control
IP & MAC Binding

Kill Switch
Support

ISP Feature
CWMP
ISP Preset(Agile Config)
Superadmin

System
Firmware Upgrade
Backup and Restore
Administration
System Log
Time & Language Settings
Reboot

Diagnostics
Ping
Traceroute

LED Management
LED Control
Night Mode

Device Management
MERCUSYS APP
Webpage

Cloud
MERCUSYS ID

Language
Bulgarian
Czech
Danish
German
English
Spanish
Finnish
French
Hungarian
Italian
Japanese
Korean
Dutch
Norwegian
Polish
Portuguese
Portuguese - Brazil
Romanian
Russian
Slovak
Swedish
Turkish
Ukrainian
Vietnamese
Chinese - Taiwan

Advanced Features
Multi-Link Operation (MLO)
Multi-RUs
OFDMA
MU-MIMO
BSS Color
Beamforming

Others

Network Services Enabled by Default Web Server Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 - Protocol: TCP
DNS DNS Port: 53 - Protocol: TCP & UDP
DHCP Server IP address assignment (DHCP) Port: 67 Protocol: UDP
App management Manage and configure device through app
Port: 20001 Protocol: TCP - Port: 30001 Protocol: TCP -Port: 20002

Protocol: UDP Package Contents
BE3600 Wi-Fi 7 Router MR27BE
Power Adapter
Quick Installation Guide
RJ45 Ethernet Cable

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

• Connection Type: Cable
• Wireless Standard: 3600Mbps
