AC1200 Dual Band Gigabit WiFi Router

The Mercusys MR30G delivers AC1200 wireless speeds with combined throughput up to 1.2 Gbps across dual bands—867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. This dual-band configuration allows you to stream 4K content, game online, and browse simultaneously without network congestion.

Enhanced Coverage with Beamforming Technology

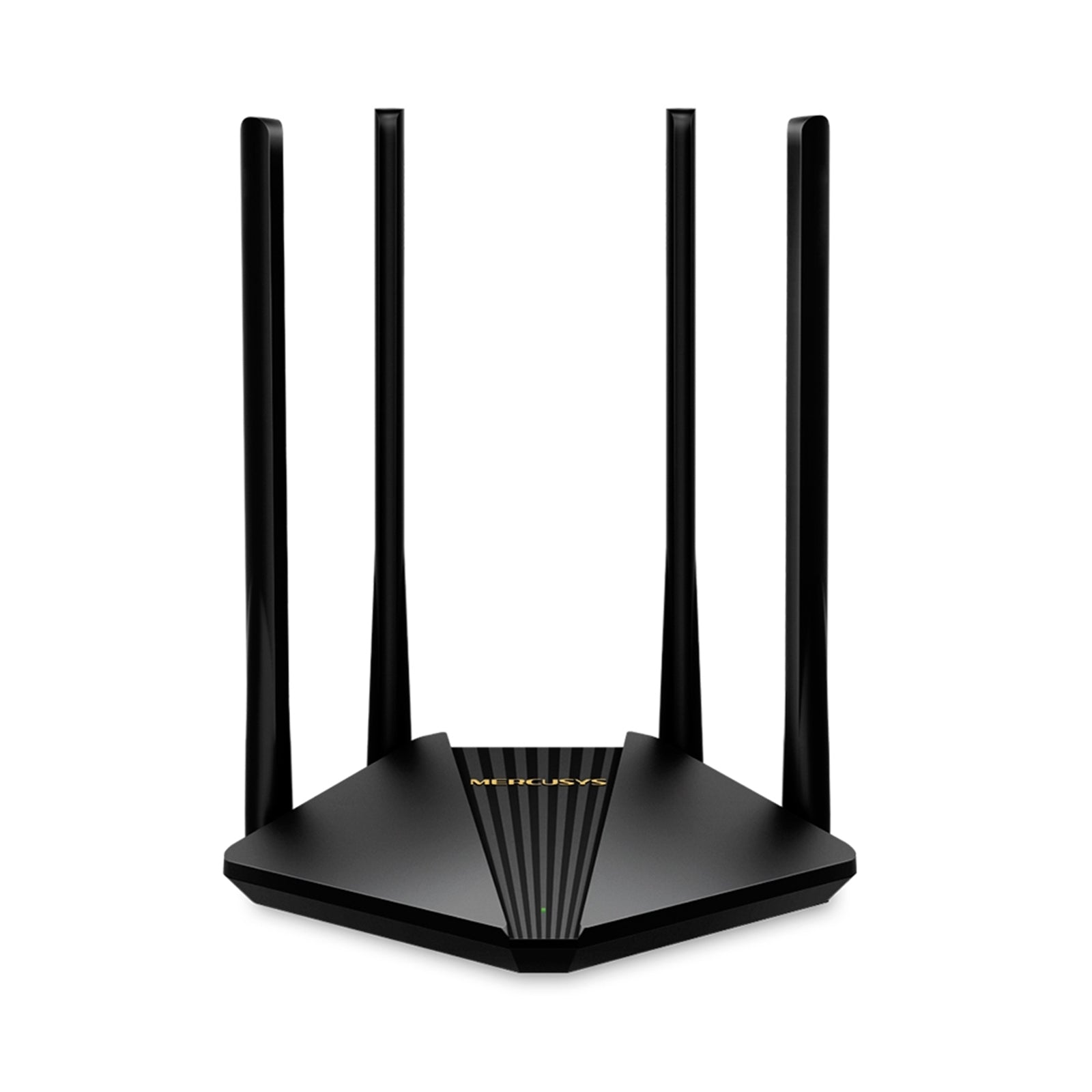

Equipped with 4 fixed 5 dBi omni-directional antennas and Beamforming technology, the MR30G extends WiFi coverage throughout your home. Beamforming focuses wireless signals directly to connected devices rather than broadcasting in all directions, resulting in stronger, more reliable connections in every corner.

Full Gigabit Ethernet Ports

The router features 1 Gigabit WAN port and 2 Gigabit LAN ports, ensuring your wired connections operate at maximum speed. These full gigabit ports eliminate bottlenecks between your internet connection and local network devices, ideal for bandwidth-intensive tasks like large file transfers and 4K streaming.

MU-MIMO for Multiple Device Support

MU-MIMO (Multi-User, Multiple-Input, Multiple-Output) technology enables the MR30G to communicate with multiple devices simultaneously rather than sequentially. This increases overall network efficiency and ensures each connected device maintains optimal WiFi throughput, even in busy households with numerous smartphones, tablets, and smart home devices.

Advanced Network Management Features

The MR30G includes comprehensive software functions for network control. Parental Controls allow you to manage internet access for specific devices, QoS (Quality of Service) prioritizes bandwidth for critical applications, and Guest Network functionality provides separate WiFi access for visitors without compromising your main network security. The router supports both Router Mode and Access Point Mode for flexible deployment.

IPTV and IPv6 Support

With IGMP Proxy/Snooping, Bridge, and Tag VLAN support, the router optimizes IPTV streaming performance. IPv6 compatibility ensures future-proof connectivity, allowing access to IPv6 services from your ISP and IPv6-enabled websites.

Robust Security Features

Security is maintained through WPA-PSK/WPA2-PSK wireless encryption, SPI Firewall protection, and IP/MAC Address Binding. The router includes NAT forwarding options (Port Forwarding, Port Triggering, UPnP, DMZ) and supports various WAN connection types including Dynamic IP, Static IP, PPPoE, L2TP, and PPTP.

AC1200 Gigabit WiFi – Enjoy home entertainment without any lag, reaching speeds up to 1.2 Gbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)

Broader Coverage – 4x high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner

Full Gigabit Ports – Make full use of your internet access and transfer data at dizzying speeds for peak performance

Higher Network Efficiency – MU-MIMO technology allows MR30G to communicate with multiple devices at the same time, increasing WiFi throughput for each device

Easily Manage Your Home Network – Varied software functions such as Parental Controls, QoS, and Guest Network for safety and effectiveness

IPTV Supported – Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming

IPv6 Supported – Allows you to both enjoy the IPv6 services provided by your ISP and visit IPv6 websites


Specifications


Wireless

Wireless Standards
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency
2.4 GHz, 5 GHz

Signal Rate
867 Mbps (5 GHz) + 300 Mbps (2.4 GHz), compatible with 11ac/a/b/g/n Wi-Fi standards

Reception Sensitivity
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -71dBm
11n HT20 MCS7: -74dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm

Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Wireless Security
WPA-PSK / WPA2-PSK

Software

Operation Modes
Router Mode, Access Point Mode

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Access Control
Local Management
Remote Management

DHCP
Server, DHCP Client List

NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security
SPI Firewall, IP and MAC Address Binding

Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network

Hardware

Dimensions (W x D x H)
6.3 × 5.0 × 1.5 in (159.7 × 125.9 × 37.1 mm)

Interfaces
1× Gigabit WAN Port + 2× Gigabit LAN Ports

Button
WPS/Reset Button

Antenna Type
4× 5 dBi Fixed Omni-Directional Antennas

Others

Package Contents
• AC1200 Wireless Dual Band Gigabit Router (MR30G)
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable

• Type: Router
• Speed: 1200 Mbps
• PoE: No
