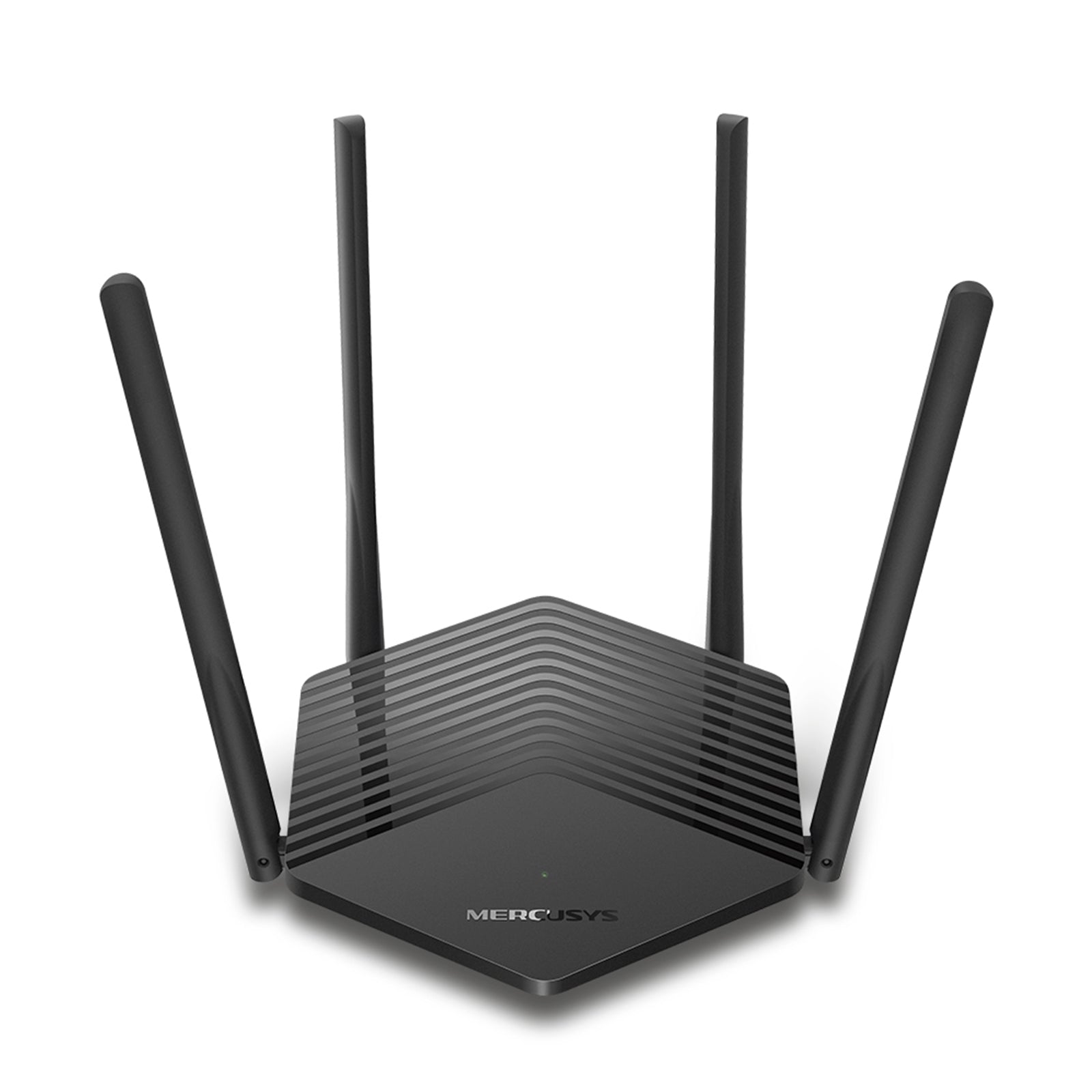

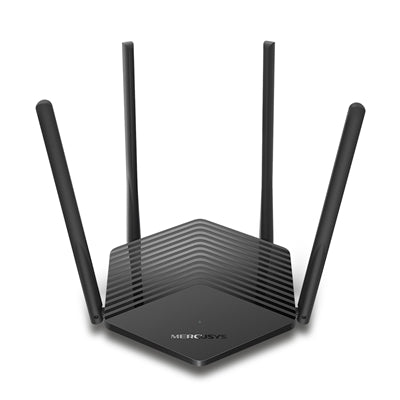

Mercusys MR60X AX1500 Wi-Fi 6 Router

The Mercusys MR60X brings Wi-Fi 6 technology to your home network with AX1500 dual-band performance. This router delivers combined speeds up to 1.5 Gbps, with 1201 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band, providing the bandwidth needed for multiple devices streaming, gaming, and browsing simultaneously.

Wi-Fi 6 Technology for Modern Homes

Built on the 802.11ax standard, the MR60X supports OFDMA and MU-MIMO technologies that enable simultaneous data transmission to multiple devices. This improves network efficiency when numerous smartphones, tablets, laptops, and smart home devices connect at once. BSS color technology minimizes interference from neighboring networks, maintaining consistent performance.

Extended Coverage with 4 High-Gain Antennas

Four 5 dBi fixed omni-directional antennas work with Beamforming technology to direct Wi-Fi signals toward connected devices. This configuration extends coverage throughout your home, reducing dead zones and maintaining stable connections in every room.

Gigabit Wired Connectivity

The MR60X includes one Gigabit WAN port and two Gigabit LAN ports for wired connections. These ports support data transfer speeds up to 1000 Mbps, making them ideal for gaming consoles, desktop computers, or network storage devices that benefit from stable wired connections.

WPA3 Security and Guest Networks

Security features include WPA3-Personal encryption, the latest Wi-Fi security protocol that provides improved protection for your network. The router supports separate guest networks on both 2.4 GHz and 5 GHz bands, allowing visitors to access the internet without compromising your main network security. Additional security features include SPI Firewall and IP/MAC Address Binding.

Smart Connect and Network Management

Smart Connect automatically assigns devices to the optimal frequency band based on current network conditions and device capabilities. The router supports multiple WAN types including Dynamic IP, Static IP, PPPoE, L2TP, and PPTP. NAT forwarding options include Port Forwarding, Port Triggering, UPnP, and DMZ configuration for advanced users.

Technical Specifications

Wireless Standards: Compatible with 802.11ax/ac/a/b/g/n
Wireless Security: WPA/WPA2-Personal, WPA2/WPA3-Personal
Dimensions: 6.9 x 6.2 x 1.8 inches (175.6 x 157.2 x 45 mm)
Operating Temperature: 0°C~40°C (32°F~104°F)
Included: Router, Power Adapter, Quick Installation Guide, RJ45 Ethernet Cable

• Connection Type: Cable
• Wireless Standard: 1500Mbps
