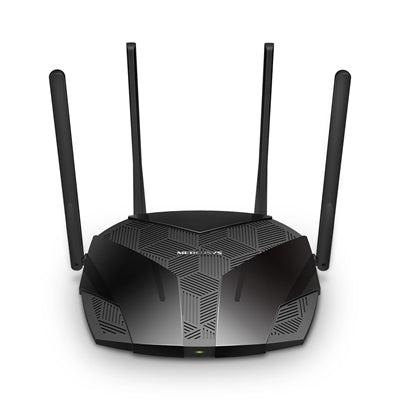

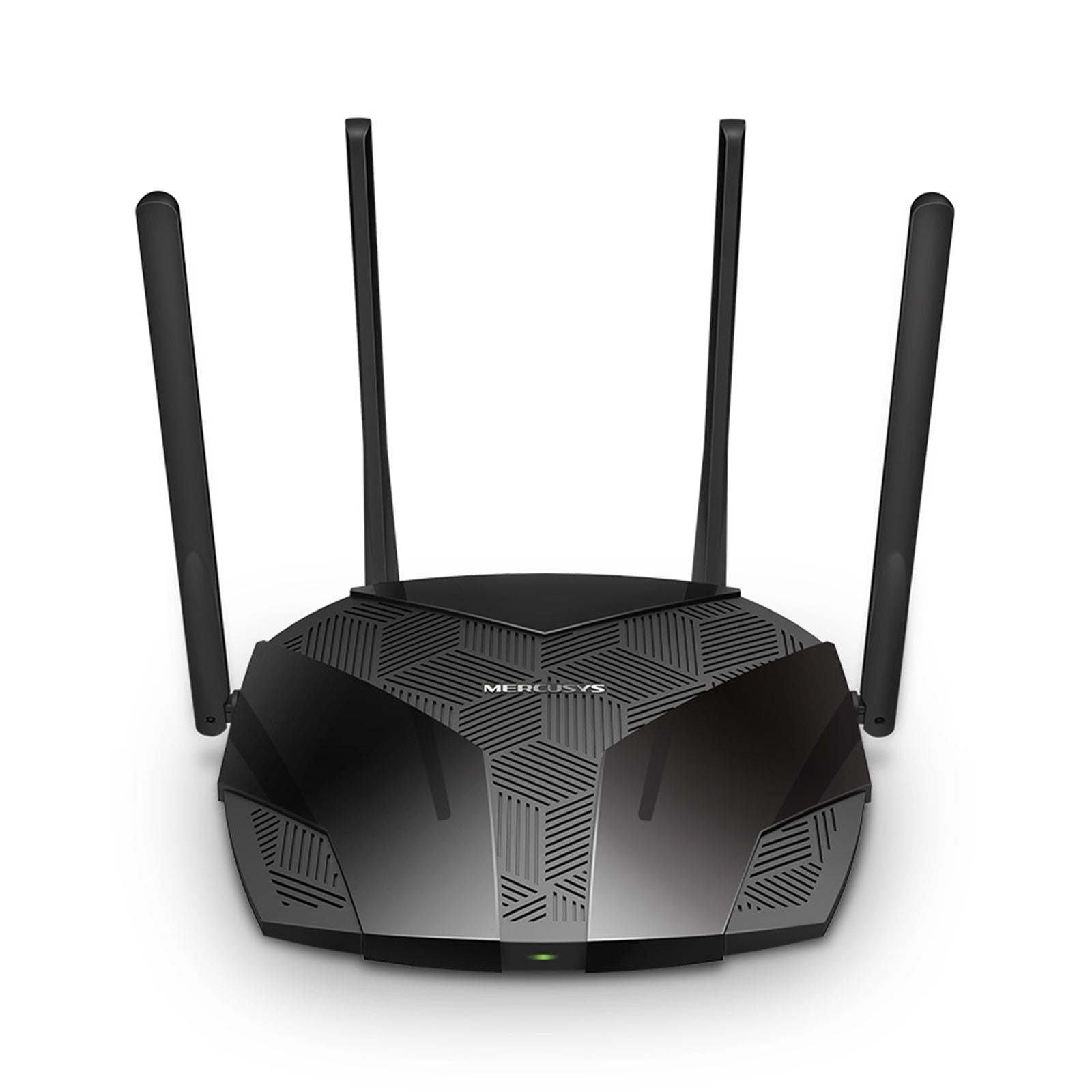

Mercusys MR80X AX3000 Dual-Band Wi-Fi 6 Router

The Mercusys MR80X delivers Wi-Fi 6 performance with combined speeds up to 3 Gbps across dual bands: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. The 160 MHz channel bandwidth doubles previous generation capacity, enabling faster file downloads and smooth 4K streaming without buffering.

High-Capacity Network Performance

OFDMA and MU-MIMO technology allow multiple devices to transmit simultaneously, delivering 4x greater network capacity compared to previous standards. The Qualcomm chipset with dual-core CPU and 12-thread network processor supports up to 256 connected devices, handling bandwidth-intensive tasks across your entire home network.

Extended Coverage and Stable Connections

Four external 5 dBi fixed omni-directional antennas with integrated signal amplifiers provide extended wireless range. Beamforming technology concentrates signal strength toward connected devices for more stable connections throughout your home. BSS Coloring marks data frames from different access points to minimize interference from neighboring networks.

Advanced Security Features

WPA3 security standard protects against brute-force attacks with robust encryption even when using weak passwords. Advanced Forward Secrecy prevents data interception if session keys are compromised. Unbreakable 128-bit encryption creates active defense against security threats. Additional security includes SPI Firewall and IP/MAC Address Binding.

Smart Network Management

Smart Connect automatically assigns devices to optimal bands based on signal strength and network demand. Target Wake Time reduces power consumption for mobile and IoT devices, extending battery life. Guest Network functionality provides separate 2.4 GHz and 5 GHz networks for visitors.

Connectivity and Ports

The router includes 1 Gigabit WAN port and 3 Gigabit LAN ports for wired connections. VPN server support includes OpenVPN and PPTP protocols. NAT forwarding options include Port Forwarding, Port Triggering, UPnP, and DMZ. DHCP server with client list management simplifies network administration.

Technical Specifications

Wireless Standards: 802.11ax/ac/a/b/g/n
WiFi Speeds: 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Security: WEP, WPA/WPA2-Personal, WPA2/WPA3-Personal
Interfaces: 1x Gigabit WAN + 3x Gigabit LAN
Antennas: 4x 5 dBi Fixed Omni-Directional
Dimensions: 8.2 x 6.8 x 1.6 inches (208.8 x 171.6 x 41.7 mm)
Operating Temperature: 0°C~40°C (32°F~104°F)

Package includes MR80X router, power adapter, quick installation guide, and RJ45 Ethernet cable.
