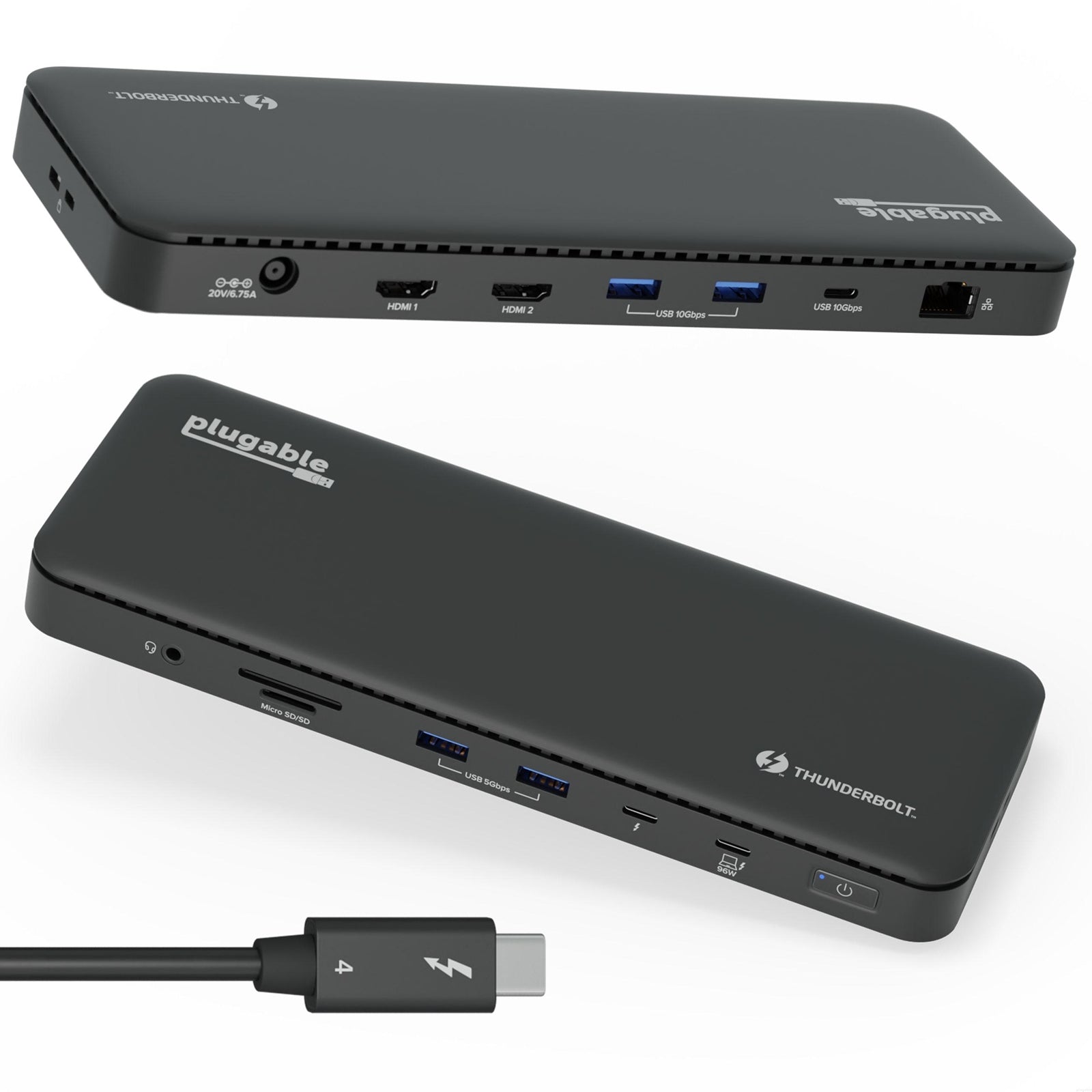

Award-Winning Thunderbolt 4 Docking Station

The Plugable TBT4-UD5 earned Best Thunderbolt Dock 2024 from Tom's Guide and Intel Engineered for Evo certification. This 13-port Thunderbolt certified docking station delivers 96W Power Delivery, dual 4K 60Hz HDMI outputs, and 40Gbps data transfer speeds for professional workstations.

Dual 4K Display Connectivity

Connect two 4K displays at 60Hz simultaneously via dual HDMI ports, or drive a single 8K display through the front Thunderbolt 4 port. The dock supports high-resolution multi-monitor setups for enhanced productivity, allowing you to dedicate one screen to active projects while managing email and communication on the second.

Thunderbolt 4 Performance

The Thunderbolt 4 certification provides 40Gbps data transfer rates through both upstream and downstream ports. The front-facing Thunderbolt 4 port supports fast external storage devices, delivers 15W charging for phones and tablets, or connects an 8K USB-C monitor. This bandwidth ensures seamless performance across all connected devices.

Comprehensive 13-Port Connectivity

The TBT4-UD5 includes 4 USB ports (2x 10Gbps, 2x 5Gbps), one 10Gbps USB-C port, SD and Micro SD card readers, Gigabit Ethernet, combo audio jack, and Kensington lock slot. This port selection accommodates keyboards, mice, external drives, network connections, and security requirements for business and education environments.

96W Laptop Charging

With 100W Power Delivery (96W certified), the dock provides sufficient power for demanding laptops while simultaneously operating all connected peripherals and displays. The included 1.0m Thunderbolt 4 cable supports 240W and 40Gbps transfer rates.

System Compatibility

Fully compatible with Windows 10 or later systems featuring Thunderbolt 4 or USB4 ports. Mac systems require M1 Pro/Max, M2 Pro/Max, or M3 Pro/Max processors for dual display support. Base M1, M2, and M3 models support single display only. No driver installation typically required, though Windows may need manual Ethernet adapter driver installation.

In the Box: TBT4-UD5 Docking Station, 1.0m 40Gbps 240W Thunderbolt 4 Cable, Quick Start Guide, Power Supply, Power Cable

• Dock Type: Desktop
• Connection: ThunderBolt 4
• Monitor Support: 2 Displays
• Compatibility: Windows and Mac
