USB-C Triple Display Docking Station with 100W Power Delivery

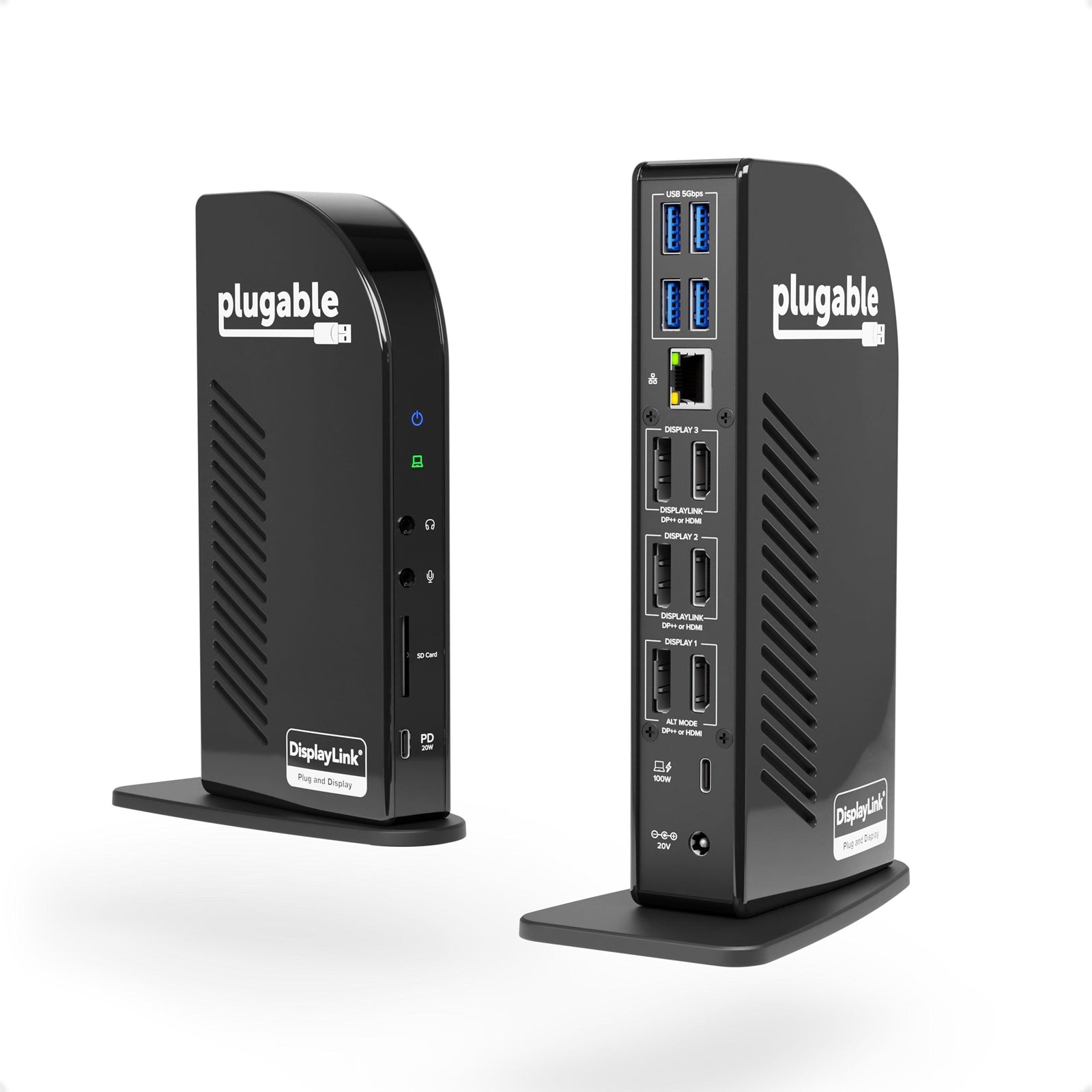

The Plugable UD-ULTC4K is a 13-port USB-C docking station designed for professionals requiring triple 4K monitor support and comprehensive connectivity. This DisplayLink certified dock delivers 100W (96W certified) Power Delivery through a single 10Gbps USB-C cable connection.

Triple 4K Display Configuration

Features 3x DisplayPort 1.2 ports and 3x HDMI 2.0 ports for maximum flexibility. Connect three 4K monitors at 60Hz simultaneously using USB4 or Thunderbolt 4 hosts via Alt Mode. Mix and match DisplayPort and HDMI connections to match your existing monitor setup without additional adapters.

13-Port Connectivity Hub

Front-facing USB-C port provides 10Gbps data transfer with 20W Power Delivery for phone charging. Additional ports include 4x USB 3.0 ports (5Gbps), SD card reader, Gigabit Ethernet, and separate 3.5mm audio in/out ports. All peripherals connect through a single USB-C cable to your laptop.

100W Laptop Charging

Delivers up to 100W Power Delivery (96W certified for regulatory compliance) to charge laptops under heavy workloads. The dock automatically negotiates optimal charging levels with your computer. Leave your laptop power adapter in your bag and power everything through the included 135W power adapter.

System Compatibility

Compatible with Windows 11, 10, 8.x, and 7, ChromeOS 100+, and macOS 10.14+. Requires Thunderbolt 4, Thunderbolt 3, USB4, or USB-C port with Alt Mode support. DisplayLink drivers required for installation. Note: HDCP not supported. Not compatible with USB 3.0 adapted connections.

Port Breakdown

1x USB-C host connection (10Gbps, 100W PD)
1x USB-C front port (10Gbps, 20W PD)
4x USB 3.0 ports (5Gbps)
3x DisplayPort 1.2 (2x DisplayLink, 1x Alt Mode)
3x HDMI 2.0 (2x DisplayLink, 1x Alt Mode)
1x Gigabit Ethernet
1x SD Card Reader
1x Audio In (3.5mm)
1x Audio Out (3.5mm)

Package Contents

Includes UD-ULTC4K docking station, 10Gbps USB-C to USB-C cable, 135W power adapter, and quick start guide.

• Dock Type: Desktop
• Connection: USB-C
• Monitor Support: 3 Displays
• Compatibility: Windows, Chrome and Mac
