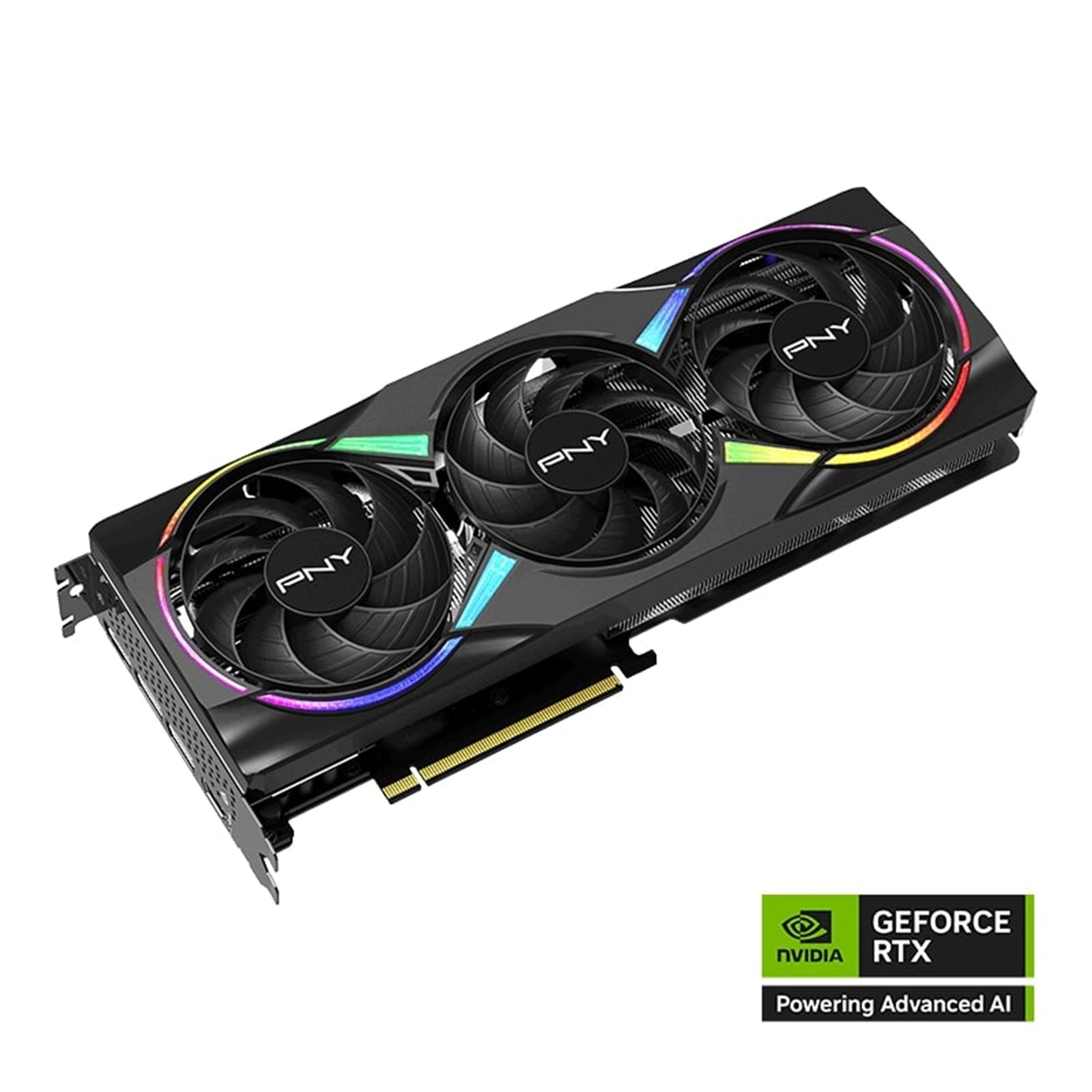

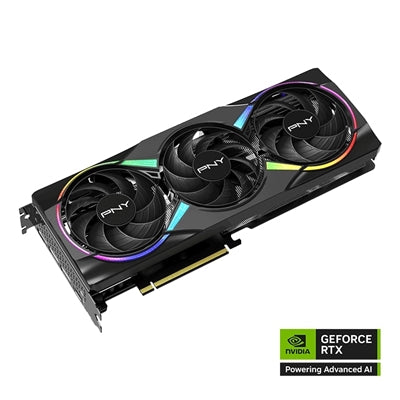

PNY GeForce RTX 5060 Ti 16GB EPIC-X RGB Overclocked Graphics Card

The PNY GeForce RTX 5060 Ti EPIC-X RGB OC delivers high-performance gaming and creative workflows powered by NVIDIA's Blackwell architecture. This 16GB GDDR7 graphics card features 4608 CUDA cores with a boost clock of 2692 MHz, providing the processing power needed for demanding games and applications.

NVIDIA Blackwell Architecture Performance

Built on the latest Blackwell architecture, this RTX 5060 Ti offers significant performance improvements over previous generations. The 16GB of GDDR7 memory running at 28 Gbps across a 128-bit interface delivers 448 GB/sec of memory bandwidth. DLSS 4 technology provides enhanced frame rates while maintaining visual quality, and ray tracing capabilities bring realistic lighting and reflections to supported games.

Advanced Cooling and Design

The EPIC-X RGB OC features a triple-fan cooling solution designed to keep temperatures in check during intensive gaming sessions. The overclocked configuration pushes the core clock to 2407 MHz with boost speeds reaching 2692 MHz. RGB lighting adds customizable aesthetics to match your build. The card measures 11.772 x 4.72 x 1.57 inches and occupies 2 slots with a TDP of 180W requiring a single 8-pin power connector.

Connectivity and Display Support

Equipped with DisplayPort 2.1b (x3) and HDMI 2.1b outputs, the RTX 5060 Ti supports up to 4 simultaneous displays with resolutions up to 4K at 480Hz or 8K at 165Hz with DSC3. The PCI-Express 5.0 x8 interface ensures compatibility with modern motherboards while providing ample bandwidth for data transfer.

System Requirements

This graphics card requires a PCI Express-compliant motherboard with one 2-width x8 graphics slot, a 600W power supply, and one 8-pin supplementary power connector. Compatible with Windows 11 64-bit, Windows 10 (November 2018 or later) 64-bit, and Linux 64-bit operating systems.

Key Specifications:

• Architecture: NVIDIA Blackwell
• CUDA Cores: 4608
• Memory: 16GB GDDR7
• Boost Clock: 2692 MHz
• Memory Bandwidth: 448 GB/sec
• Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Cooling: Triple Fan with RGB
• Power: 180W TDP, 1x 8-pin connector

The PNY GeForce RTX 5060 Ti EPIC-X RGB OC combines performance, cooling efficiency, and visual appeal for gamers and content creators seeking reliable 4K gaming performance and AI-accelerated creative applications through NVIDIA Studio support.
